MR106-MC3-AF12

Name: MR106-MC3-AF12 - Single Row Ball Bearings - 6x10x2.5 mm Unflanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: MR106MC3AF12
Price: 1.95 AUD
Availability: LimitedAvailability

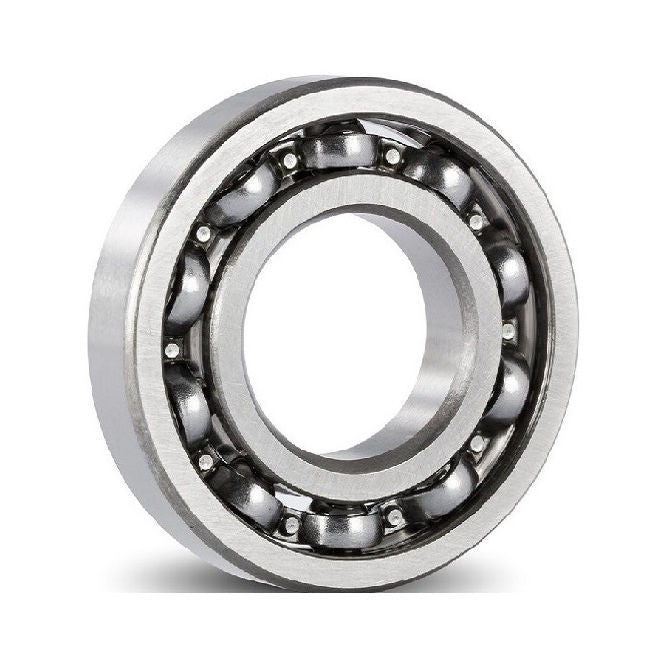

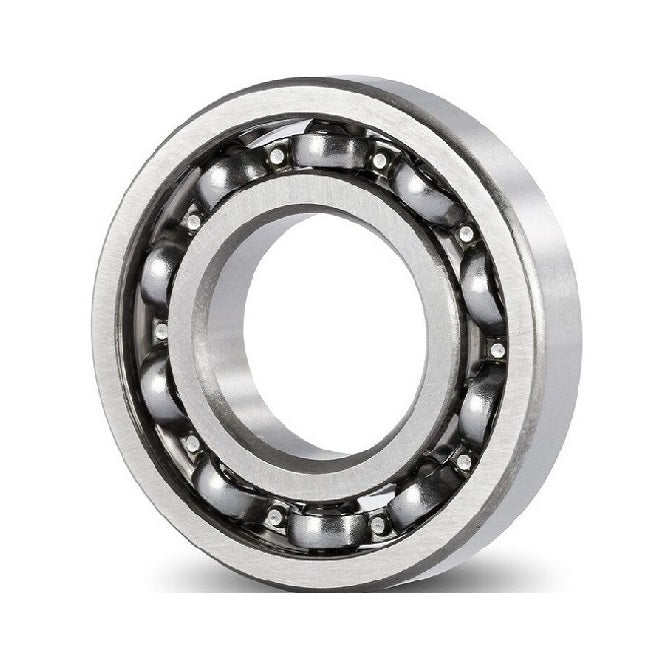

Single Row Ball Bearings - 6x10x2.5 mm Unflanged - Chrome Steel SAE 52100 Bearing

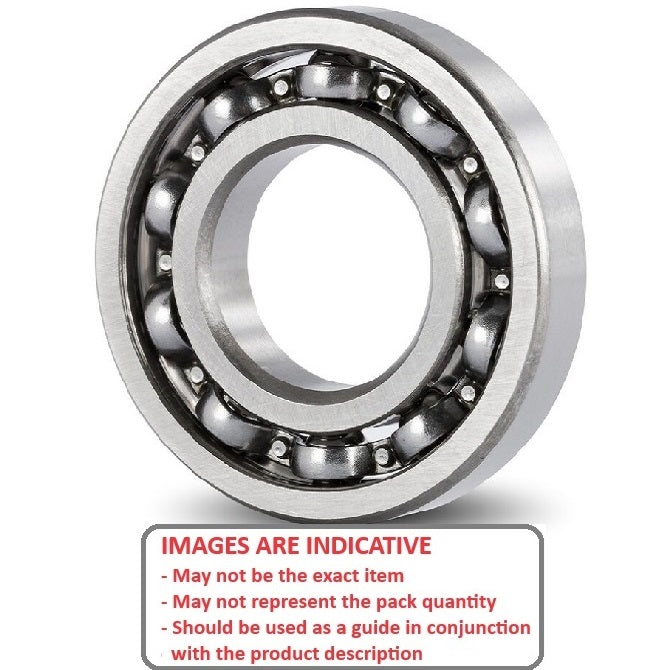

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$1.95 AUD

~~$3.34 AUD~~ $1.95 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 2 available now
Order 50 or more for $1.76 AUD Each

Product Details

ID (d): 6.000mm
_{+ 0.000 / - 0.0075}
_{(6.000mm is 0.236 in.)}

Chrome Steel SAE 52100

ID (d): 6.000mm
_{+ 0.000 / - 0.0075}
_{(6.000mm is 0.236 in.)}
OD (D): 10.000mm
_{+ 0.000 / - 0.0075}
_{(10.000mm is 0.394 in.)}
Width (B): 2.500mm
_{+ 0.000 / - 0.125}
_{(2.500mm is 0.098 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ADR 617-6
NTN 676
NTN 676A
Nachi 6M10
BSC ML6010
NTN MR106
NTN W676
L1060
6176
MR106BASIC

Used for

RC Helicopter Parts
RC Nitro Engine Parts
Kyosho - CONCEPT 30 SR-T - Bearing 6-10-2.5mm
Mikado - Logo 10 - Bearing 6-10-2.5mm
Mikado - Logo 10 3D Version - Bearing 6-10-2.5mm
Mikado - Logo 14 - Bearing 6-10-2.5mm
Mikado - Logo 14 Carbon - Bearing 6-10-2.5mm
Mikado - Logo 20 - Bearing 6-10-2.5mm
Miniature Aircraft - Fury - Bearing 6-10-2.5mm
Miniature Aircraft - X-Cell 30-40 - 0439 Bearing
Miniature Aircraft - X-Cell 30-40 All - Bearing 6-10-2.5mm
Miniature Aircraft - X-Cell 50-60 - 0439 Bearing
Miniature Aircraft - X-Cell 50-60 All - Bearing 6-10-2.5mm
Cox - TD049 - Front Bearing

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
