RS-275-S02

Name: 1171888 | RS-275-S02 --- External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Brand: MBA
SKU: RS275S02
Price: 21.23 AUD
Availability: BackOrder

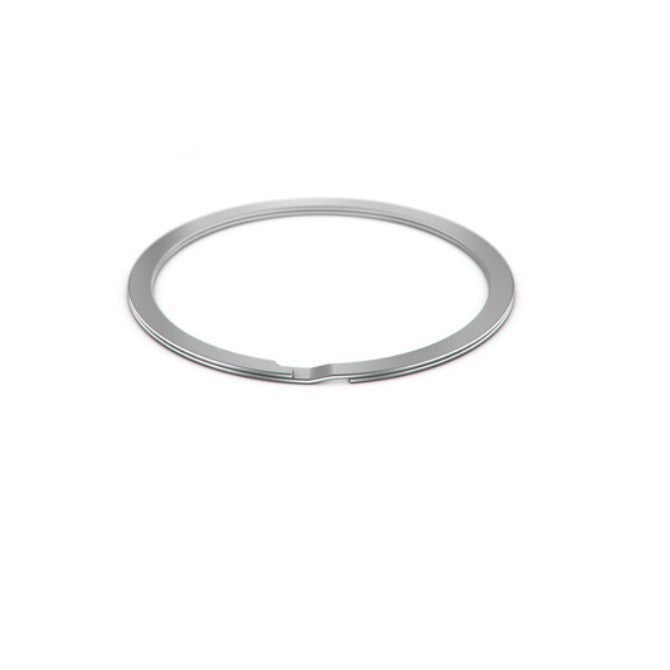

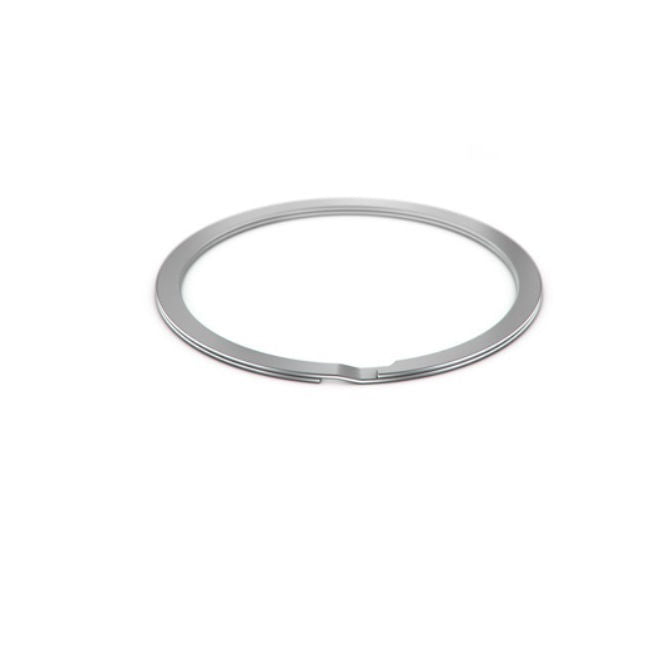

External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring

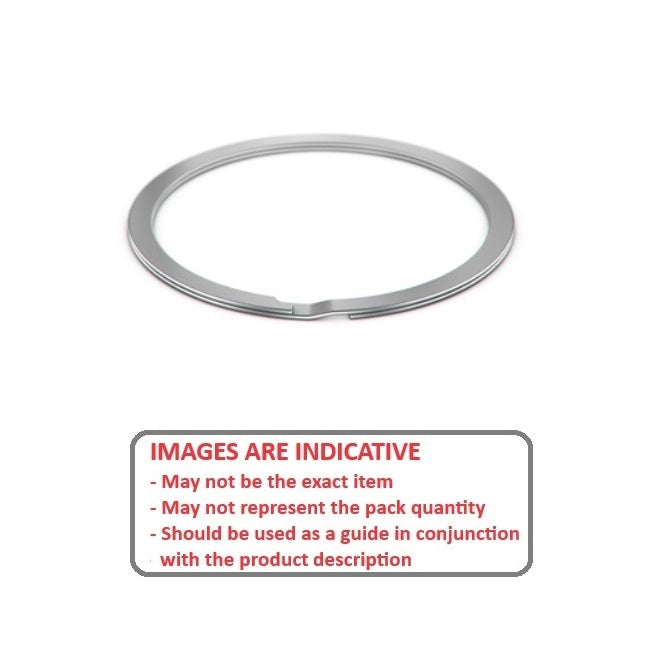

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$21.23 AUD

~~$25.47 AUD~~ $21.23 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $19.11 AUD

Backorder now! Backorders for more than the stock quantity are expected before Oct 22, 2025

Quantity

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Product Details

Additional stock available from USA subject to Prior Sale = 6

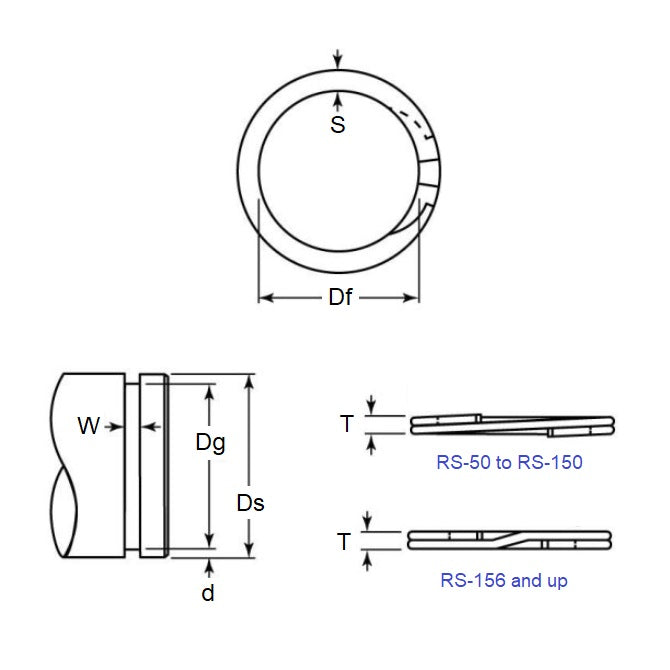

Shaft Diameter (Ds): 69.85mm
_{(69.85mm is 2.75 in.)}

Stainless Steel 302/304 (Similar to A2, 18-8)

Shaft Diameter (Ds): 69.85mm
_{(69.85mm is 2.75 in.)}
Clip Thickness (T): 1.25mm
_{+/- 0.08}
_{(1.25mm is 0.049 in.)}
Groove Dia. (Dg): 67.57mm
_{(67.57mm is 2.66 in.)}
Approx. Loose Circlip ID (A): 65.66mm
_{+ 0.00 / - 0.76}
Radial Wall (S) min/max: 4.01mm
_{+/- 0.10}
Groove Width (W): 1.47mm
_{+/- 0.16}
Approx. Loose Clip OD: 73.68
_{+/- 0.05}
Groove Depth (d): 1.14

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
93513A280
Smalley WS-275-S02
WS275S02

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
