CCE-06500H-C (PK-25)

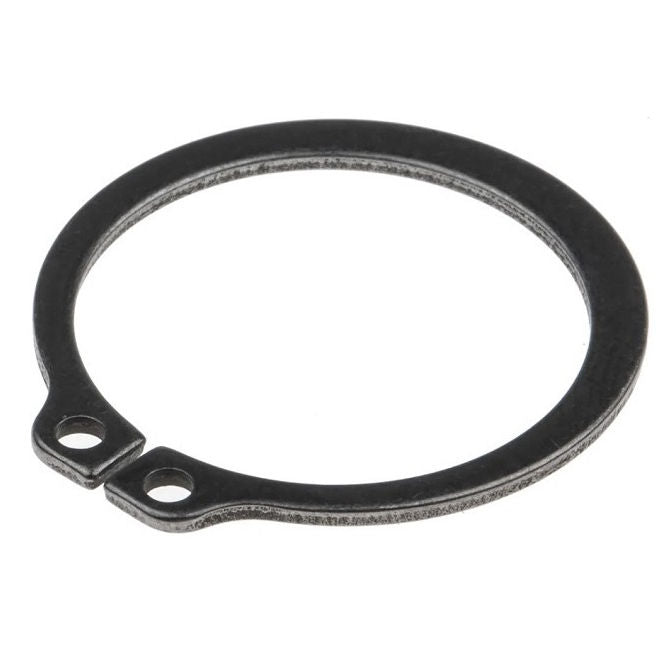

External Retaining Rings - 65x4x62 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 25 (1250 pcs)
for $374.69 AUD per 25 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Shaft Diameter (Ds): 65.00mm(65.00mm is 2.559 in.)
Carbon Steel
- Shaft Diameter (Ds): 65.00mm
(65.00mm is 2.559 in.)
- Clip Thickness (T): 4.00mm
+ 0.00 / - 0.10
(4.00mm is 0.157 in.)
- Groove Dia. (Dg): 62.00mm
+ 0.00 / - 0.30
(62.00mm is 2.441 in.)
- Approx. Loose Circlip ID (A): 60.80mm
- Groove Width (W): 4.15mm
- Clearance on Shaft (C1): 84.60mm
- Clearance in Groove (C1): 80.60mm
- Min. Lug Diameter (h): 3.00mm
- Min. Extension (n): 4.50
- Standard: Heavy Duty Variation DIN471 table 2
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 90030A134
- Seeger® AS-065
- Seeger® AS65X4
- Bossard® BN821-065
- Huyett® DSHR-065
- Ellison® EXT-065
- BN821065
- D1460-0650
- D14600650
- D14600650APP
- D1460-0650APP
- EXT065
- AS065
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE06500HC, CCE06500H
