MB-0635-095 (PK-45)
Bonded Mounts - 635 kg - 20.4x95 mm Tee Bush Centre Bolt - Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more packs of 45 (2250 pcs)
for $3,555.69 AUD per 45 pack
635 kg - 20.4x95 mm Bonded Mounts - Rubber - Sold per pack of 45:
Base Category: Mounts - Bonded
Top Level Category: Mounts - Bonded - Tee Bush Centre Bolt
Product Details
Max Static Load: 635kgRubber
- Max Static Load: 635kg

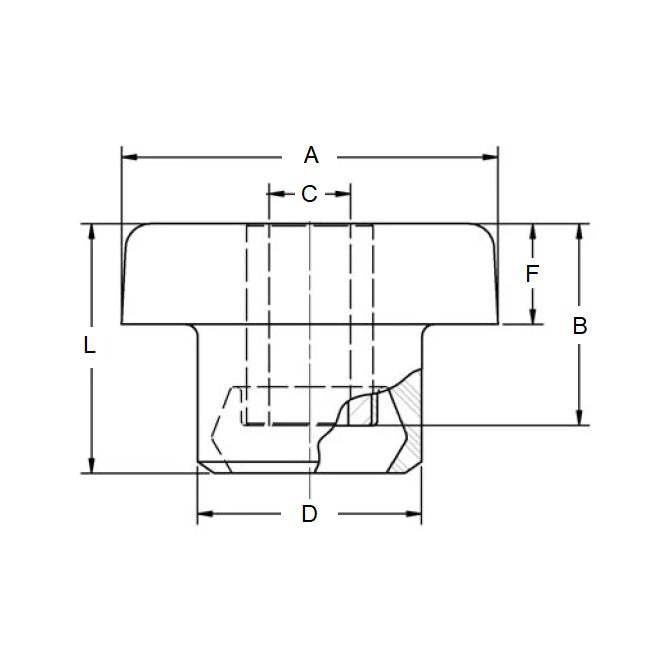

- Bolt Hole Diameter (C): 20.4mm
(20.4mm is 0.803 in.)
- Flange Diameter (A): 95.0mm
(95.0mm is 3.74 in.)
- Flange Width (F): 25.4mm
- Shoulder Diameter (D): 56.6mm
- Overall Length (B): 63.0mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® BBM-60
- BBM60
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
