REM-060-R-CB-B

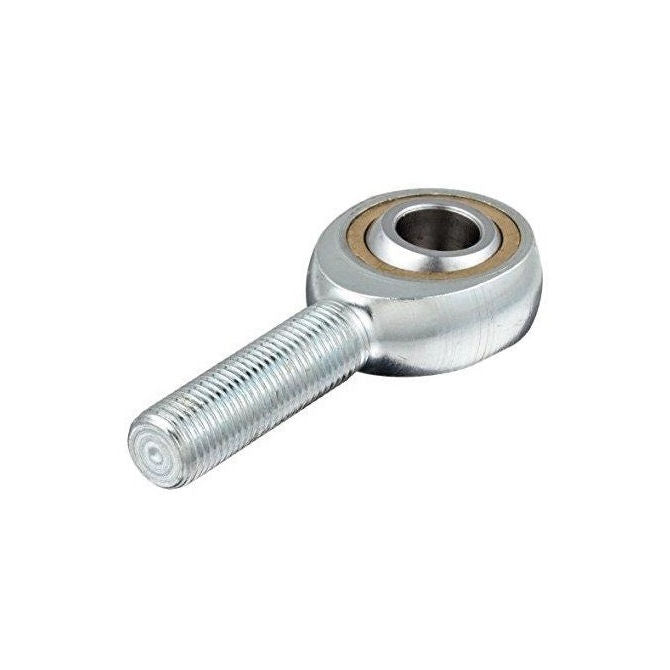

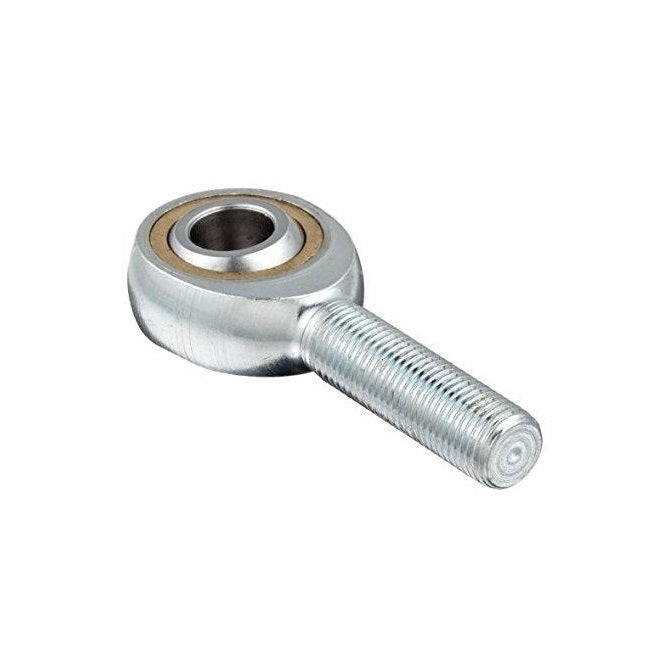

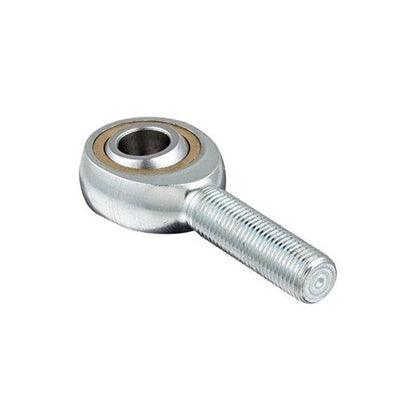

Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End

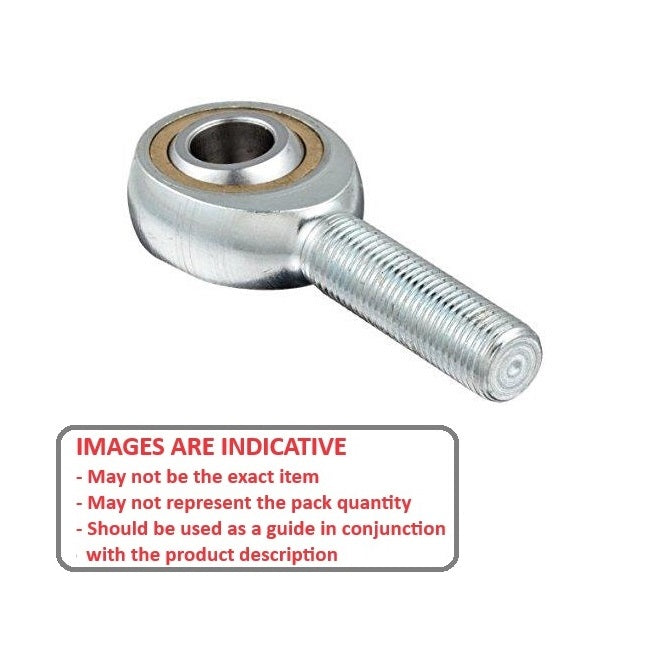

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$5.32 AUD
$5.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $4.79 AUD
Backorder now! Backorders for more than the stock quantity are expected before Oct 15, 2025

Base Category: Rod Ends - Male

Top Level Category: Rod Ends - Male - Steel - Bronze Lined - Standard

Product Details

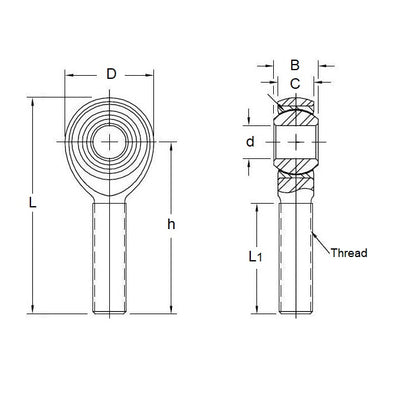

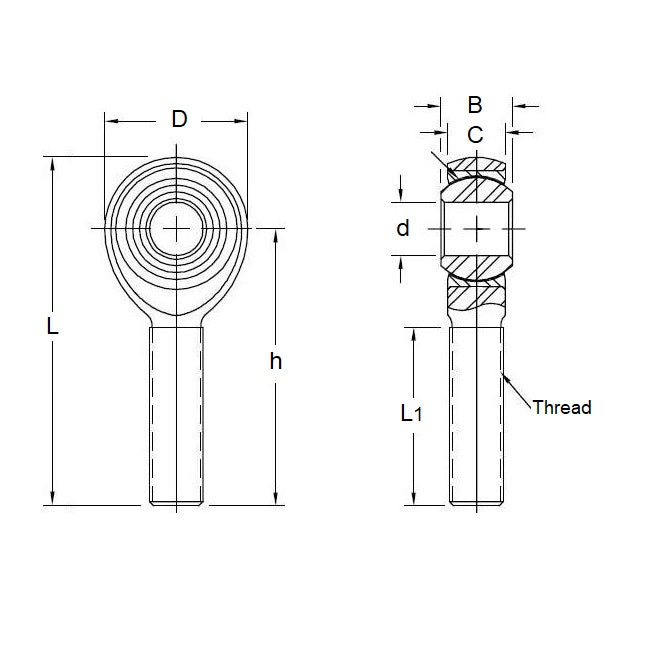

Eye Size (d1): 6mm
(6mm is 0.236 in.)

Bronze Lined Steel
  • Eye Size (d1): 6mm
    (6mm is 0.236 in.)
  • Overall Length (L): 45.00mm
    (45.00mm is 1.772 in.)
  • Thread Size: M6x1 Right
  • Min. Thread Length (l2): 22.00mm
  • Head Width (W): 6.75mm
  • Eye Width (W1): 9.00mm
  • Head Diameter (D): 18.00mm
  • Centre Height (l1): 36.00mm
  • Grease Nipple: Yes

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • MTR BNM6
  • ASAHI JAM6
  • KWK KM6
  • IKO POS6
  • NTN SMI-6
  • SMI6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
