Collection: Rod Ends - Male - Steel - Bronze Lined - Standard

Rod Ends -> Male -> Steel -> Bronze Lined -> Standard

There are 49 products in the sub-categories of Rod Ends - Male - Steel - Bronze Lined - Standard. Scroll down or follow the link to Rod Ends - Male - Steel - Bronze Lined - Standard in the products table to see all these items combined into a handy table with filters.

Category Details

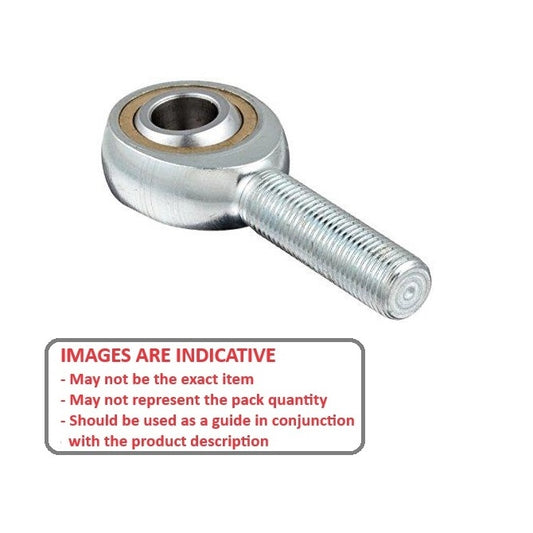

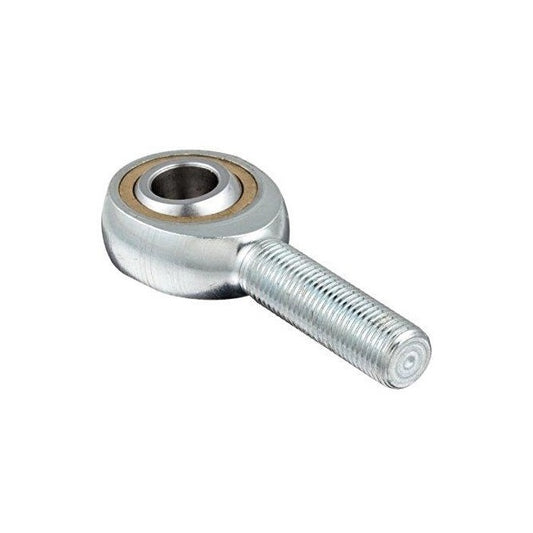

A selection of Standard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints

An expanded range may be available on special order. Please enquire.
Dimensions not shown are available on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Rod Ends - Male - Steel - Bronze Lined - Standard category on the Small Parts & Bearings online store.

Eye Size (d1)	Overall Length (L)	Thread Size	Min. Thread Length (l2)	Head Width (W)	Eye Width (W1)
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Left	Min. Thread Length (l2) 15.00 mm	Head Width (W) 4.30 mm	Eye Width (W1) 6.00 mm
Material: Bronze Lined Steel Head Diameter (D): 12.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No
Part Number: REM-030-L-CB Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
Eye Size (d1)	Overall Length (L)	Thread Size	Min. Thread Length (l2)	Indicative Image
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Left	Min. Thread Length (l2) 15.00 mm
Material: Bronze Lined Steel Head Width (W): 4.30 mm Eye Width (W1): 6.00 mm Head Diameter (D): 12.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No
Part Number: REM-030-L-CB Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
REM-030-L-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End Sale REM-030-L-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per 8 Available Now Sale
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Right	Min. Thread Length (l2) 15.00 mm	Head Width (W) 4.50 mm	Eye Width (W1) 6.00 mm
Material: Bronze Lined Steel Head Diameter (D): 12.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No
Part Number: REM-030-R-CB Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Right	Min. Thread Length (l2) 15.00 mm
Material: Bronze Lined Steel Head Width (W): 4.50 mm Eye Width (W1): 6.00 mm Head Diameter (D): 12.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No
Part Number: REM-030-R-CB Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
REM-030-R-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End Sale REM-030-R-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per 30 Available Now Sale
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Left	Min. Thread Length (l2) 17.00 mm	Head Width (W) 5.30 mm	Eye Width (W1) 7.00 mm
Material: Bronze Lined Steel Head Diameter (D): 14.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No
Part Number: REM-040-L-CB Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Left	Min. Thread Length (l2) 17.00 mm
Material: Bronze Lined Steel Head Width (W): 5.30 mm Eye Width (W1): 7.00 mm Head Diameter (D): 14.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No
Part Number: REM-040-L-CB Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-040-L-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Sale REM-040-L-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Right	Min. Thread Length (l2) 17.00 mm	Head Width (W) 5.30 mm	Eye Width (W1) 7.00 mm
Material: Bronze Lined Steel Head Diameter (D): 14.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No
Part Number: REM-040-R-CB Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Right	Min. Thread Length (l2) 17.00 mm
Material: Bronze Lined Steel Head Width (W): 5.30 mm Eye Width (W1): 7.00 mm Head Diameter (D): 14.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No
Part Number: REM-040-R-CB Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
REM-040-R-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End REM-040-R-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Bronze Lined Steel Head Diameter (D): 15.88 mm Centre Height (l1): 31.75 mm Grease Nipple: Yes
Part Number: REM-048-L-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm
Material: Bronze Lined Steel Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter (D): 15.88 mm Centre Height (l1): 31.75 mm Grease Nipple: Yes
Part Number: REM-048-L-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
REM-048-L-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End Sale REM-048-L-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per 50 Available Now Sale
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Bronze Lined Steel Head Diameter (D): 15.88 mm Centre Height (l1): 31.75 mm Grease Nipple: No
Part Number: REM-048-R-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm
Material: Bronze Lined Steel Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter (D): 15.88 mm Centre Height (l1): 31.75 mm Grease Nipple: No
Part Number: REM-048-R-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
REM-048-R-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End REM-048-R-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 14 Available Now
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Bronze Lined Steel Head Diameter (D): 16.00 mm Centre Height (l1): 33.00 mm Grease Nipple: No
Part Number: REM-050-L-CB Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm
Material: Bronze Lined Steel Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter (D): 16.00 mm Centre Height (l1): 33.00 mm Grease Nipple: No
Part Number: REM-050-L-CB Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-050-L-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Sale REM-050-L-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 20.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Bronze Lined Steel Head Diameter (D): 16.00 mm Centre Height (l1): 33.00 mm Grease Nipple: No
Part Number: REM-050-R-CB Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 20.00 mm
Material: Bronze Lined Steel Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter (D): 16.00 mm Centre Height (l1): 33.00 mm Grease Nipple: No
Part Number: REM-050-R-CB Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
REM-050-R-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End Sale REM-050-R-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per 10 Available Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Left	Min. Thread Length (l2) 22.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No
Part Number: REM-060-L-CB Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Left	Min. Thread Length (l2) 22.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No
Part Number: REM-060-L-CB Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-L-CB --- Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Sale REM-060-L-CB --- Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.000 mm (Equiv. 1.772 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: Yes
Part Number: REM-060-R-CB Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.000 mm (Equiv. 1.772 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: Yes
Part Number: REM-060-R-CB Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-R-CB --- Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Sale REM-060-R-CB --- Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Right	Min. Thread Length (l2) 22.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: Yes
Part Number: REM-060-R-CB-B Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Right	Min. Thread Length (l2) 22.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter (D): 18.00 mm Centre Height (l1): 36.00 mm Grease Nipple: Yes
Part Number: REM-060-R-CB-B Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-R-CB-B --- Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End REM-060-R-CB-B --- Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Bronze Lined Steel Head Diameter (D): 19.05 mm Centre Height (l1): 39.67 mm Grease Nipple: Yes
Part Number: REM-064-L-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm
Material: Bronze Lined Steel Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter (D): 19.05 mm Centre Height (l1): 39.67 mm Grease Nipple: Yes
Part Number: REM-064-L-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-064-L-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Sale REM-064-L-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Bronze Lined Steel Head Diameter (D): 19.05 mm Centre Height (l1): 39.67 mm Grease Nipple: Yes
Part Number: REM-064-R-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm
Material: Bronze Lined Steel Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter (D): 19.05 mm Centre Height (l1): 39.67 mm Grease Nipple: Yes
Part Number: REM-064-R-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
REM-064-R-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End REM-064-R-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 4 Available Now
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 58.72 mm (Equiv. 2.312 in.)	Thread Size 5/16-24 UNF Left	Min. Thread Length (l2) 31.75 mm	Head Width (W) 8.74 mm	Eye Width (W1) 11.10 mm
Material: Bronze Lined Steel Head Diameter (D): 22.23 mm Centre Height (l1): 47.63 mm Grease Nipple: Yes
Part Number: REM-079-L-CB Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 58.72 mm (Equiv. 2.312 in.)	Thread Size 5/16-24 UNF Left	Min. Thread Length (l2) 31.75 mm
Material: Bronze Lined Steel Head Width (W): 8.74 mm Eye Width (W1): 11.10 mm Head Diameter (D): 22.23 mm Centre Height (l1): 47.63 mm Grease Nipple: Yes
Part Number: REM-079-L-CB Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-079-L-CB --- Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Sale REM-079-L-CB --- Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 58.72 mm (Equiv. 2.312 in.)	Thread Size 5/16-24 UNF Right	Min. Thread Length (l2) 31.75 mm	Head Width (W) 8.74 mm	Eye Width (W1) 11.10 mm
Material: Bronze Lined Steel Head Diameter (D): 22.23 mm Centre Height (l1): 47.63 mm Grease Nipple: Yes
Part Number: REM-079-R-CB Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$5.03 AUD~~ Sale price $3.05 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 58.72 mm (Equiv. 2.312 in.)	Thread Size 5/16-24 UNF Right	Min. Thread Length (l2) 31.75 mm
Material: Bronze Lined Steel Head Width (W): 8.74 mm Eye Width (W1): 11.10 mm Head Diameter (D): 22.23 mm Centre Height (l1): 47.63 mm Grease Nipple: Yes
Part Number: REM-079-R-CB Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$5.03 AUD~~ Sale price $3.05 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
REM-079-R-CB --- Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End Sale REM-079-R-CB --- Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End Regular price $3.05 AUD Regular price ~~$5.03 AUD~~ Sale price $3.05 AUD Unit price per 8 Available Now Sale
Eye Size (d1) 8 mm (Equiv. 0.315 in.)	Overall Length (L) 53.00 mm (Equiv. 2.087 in.)	Thread Size M8x1.25 Left	Min. Thread Length (l2) 25.00 mm	Head Width (W) 9.00 mm	Eye Width (W1) 12.00 mm
Material: Bronze Lined Steel Head Diameter (D): 22.00 mm Centre Height (l1): 42.00 mm Grease Nipple: Yes
Part Number: REM-080-L-CB Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End 1 Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $4.86 AUD Regular price ~~$8.41 AUD~~ Sale price $4.86 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Eye Size (d1) 8 mm (Equiv. 0.315 in.)	Overall Length (L) 53.00 mm (Equiv. 2.087 in.)	Thread Size M8x1.25 Left	Min. Thread Length (l2) 25.00 mm
Material: Bronze Lined Steel Head Width (W): 9.00 mm Eye Width (W1): 12.00 mm Head Diameter (D): 22.00 mm Centre Height (l1): 42.00 mm Grease Nipple: Yes
Part Number: REM-080-L-CB Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End 1 Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $4.86 AUD Regular price ~~$8.41 AUD~~ Sale price $4.86 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
REM-080-L-CB --- Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End Sale REM-080-L-CB --- Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End Regular price $4.86 AUD Regular price ~~$8.41 AUD~~ Sale price $4.86 AUD Unit price per 1 Available Now Sale
Eye Size (d1) 8 mm (Equiv. 0.315 in.)	Overall Length (L) 53.00 mm (Equiv. 2.087 in.)	Thread Size M8x1.25 Right	Min. Thread Length (l2) 25.00 mm	Head Width (W) 9.00 mm	Eye Width (W1) 12.00 mm
Material: Bronze Lined Steel Head Diameter (D): 22.00 mm Centre Height (l1): 42.00 mm Grease Nipple: Yes
Part Number: REM-080-R-CB Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End 6 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.28 AUD~~ Sale price $4.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
Eye Size (d1) 8 mm (Equiv. 0.315 in.)	Overall Length (L) 53.00 mm (Equiv. 2.087 in.)	Thread Size M8x1.25 Right	Min. Thread Length (l2) 25.00 mm
Material: Bronze Lined Steel Head Width (W): 9.00 mm Eye Width (W1): 12.00 mm Head Diameter (D): 22.00 mm Centre Height (l1): 42.00 mm Grease Nipple: Yes
Part Number: REM-080-R-CB Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End 6 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.28 AUD~~ Sale price $4.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
REM-080-R-CB --- Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End Sale REM-080-R-CB --- Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End Regular price $4.32 AUD Regular price ~~$7.28 AUD~~ Sale price $4.32 AUD Unit price per 6 Available Now Sale
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 61.93 mm (Equiv. 2.438 in.)	Thread Size 3/8-24 UNF Left	Min. Thread Length (l2) 31.75 mm	Head Width (W) 10.31 mm	Eye Width (W1) 12.70 mm
Material: Bronze Lined Steel Head Diameter (D): 25.40 mm Centre Height (l1): 49.23 mm Grease Nipple: Yes
Part Number: REM-095-L-CB Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price ~~$9.90 AUD~~ Sale price $5.77 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 61.93 mm (Equiv. 2.438 in.)	Thread Size 3/8-24 UNF Left	Min. Thread Length (l2) 31.75 mm
Material: Bronze Lined Steel Head Width (W): 10.31 mm Eye Width (W1): 12.70 mm Head Diameter (D): 25.40 mm Centre Height (l1): 49.23 mm Grease Nipple: Yes
Part Number: REM-095-L-CB Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price ~~$9.90 AUD~~ Sale price $5.77 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
REM-095-L-CB --- Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End Sale REM-095-L-CB --- Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End Regular price $5.77 AUD Regular price ~~$9.90 AUD~~ Sale price $5.77 AUD Unit price per 10 Available Now Sale
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 61.93 mm (Equiv. 2.438 in.)	Thread Size 3/8-24 UNF Right	Min. Thread Length (l2) 31.75 mm	Head Width (W) 10.31 mm	Eye Width (W1) 12.70 mm
Material: Bronze Lined Steel Head Diameter (D): 25.40 mm Centre Height (l1): 49.23 mm Grease Nipple: No
Part Number: REM-095-R-CB Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 61.93 mm (Equiv. 2.438 in.)	Thread Size 3/8-24 UNF Right	Min. Thread Length (l2) 31.75 mm
Material: Bronze Lined Steel Head Width (W): 10.31 mm Eye Width (W1): 12.70 mm Head Diameter (D): 25.40 mm Centre Height (l1): 49.23 mm Grease Nipple: No
Part Number: REM-095-R-CB Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
REM-095-R-CB --- Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End REM-095-R-CB --- Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per 8 Available Now
Eye Size (d1) 10 mm (Equiv. 0.394 in.)	Overall Length (L) 61.00 mm (Equiv. 2.402 in.)	Thread Size M10x1.5 Right	Min. Thread Length (l2) 29.00 mm	Head Width (W) 10.50 mm	Eye Width (W1) 14.00 mm
Material: Bronze Lined Steel Head Diameter (D): 26.00 mm Centre Height (l1): 48.00 mm Grease Nipple: Yes
Part Number: REM-100-R-CB (200 Pcs) Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $4,274.86 AUD Regular price ~~$5,129.84 AUD~~ Sale price $4,274.86 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 10 mm (Equiv. 0.394 in.)	Overall Length (L) 61.00 mm (Equiv. 2.402 in.)	Thread Size M10x1.5 Right	Min. Thread Length (l2) 29.00 mm
Material: Bronze Lined Steel Head Width (W): 10.50 mm Eye Width (W1): 14.00 mm Head Diameter (D): 26.00 mm Centre Height (l1): 48.00 mm Grease Nipple: Yes
Part Number: REM-100-R-CB (200 Pcs) Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $4,274.86 AUD Regular price ~~$5,129.84 AUD~~ Sale price $4,274.86 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
REM-100-R-CB (200 Pcs) --- Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Sale REM-100-R-CB (200 Pcs) --- Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Regular price $4,274.86 AUD Regular price ~~$5,129.84 AUD~~ Sale price $4,274.86 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 10 mm (Equiv. 0.394 in.)	Overall Length (L) 61.00 mm (Equiv. 2.402 in.)	Thread Size M10x1.5 Left	Min. Thread Length (l2) 29.00 mm	Head Width (W) 10.50 mm	Eye Width (W1) 14.00 mm
Material: Bronze Lined Steel Head Diameter (D): 26.00 mm Centre Height (l1): 48.00 mm Grease Nipple: Yes
Part Number: REM-100-L-CB (10 Pcs) Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 10 mm (Equiv. 0.394 in.)	Overall Length (L) 61.00 mm (Equiv. 2.402 in.)	Thread Size M10x1.5 Left	Min. Thread Length (l2) 29.00 mm
Material: Bronze Lined Steel Head Width (W): 10.50 mm Eye Width (W1): 14.00 mm Head Diameter (D): 26.00 mm Centre Height (l1): 48.00 mm Grease Nipple: Yes
Part Number: REM-100-L-CB (10 Pcs) Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REM-100-L-CB (10 Pcs) --- Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Sale REM-100-L-CB (10 Pcs) --- Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 68.28 mm (Equiv. 2.688 in.)	Thread Size 7/16-20 UNF Left	Min. Thread Length (l2) 34.93 mm	Head Width (W) 11.11 mm	Eye Width (W1) 14.27 mm
Material: Bronze Lined Steel Head Diameter (D): 28.58 mm Centre Height (l1): 53.98 mm Grease Nipple: No
Part Number: REM-111-L-CB Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 68.28 mm (Equiv. 2.688 in.)	Thread Size 7/16-20 UNF Left	Min. Thread Length (l2) 34.93 mm
Material: Bronze Lined Steel Head Width (W): 11.11 mm Eye Width (W1): 14.27 mm Head Diameter (D): 28.58 mm Centre Height (l1): 53.98 mm Grease Nipple: No
Part Number: REM-111-L-CB Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-111-L-CB --- Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Left - Bronze Lined Steel Rod End Sale REM-111-L-CB --- Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Left - Bronze Lined Steel Rod End Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 68.28 mm (Equiv. 2.688 in.)	Thread Size 7/16-20 UNF Right	Min. Thread Length (l2) 34.93 mm	Head Width (W) 11.11 mm	Eye Width (W1) 14.27 mm
Material: Bronze Lined Steel Head Diameter (D): 28.58 mm Centre Height (l1): 53.98 mm Grease Nipple: No
Part Number: REM-111-R-CB Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 68.28 mm (Equiv. 2.688 in.)	Thread Size 7/16-20 UNF Right	Min. Thread Length (l2) 34.93 mm
Material: Bronze Lined Steel Head Width (W): 11.11 mm Eye Width (W1): 14.27 mm Head Diameter (D): 28.58 mm Centre Height (l1): 53.98 mm Grease Nipple: No
Part Number: REM-111-R-CB Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-111-R-CB --- Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Right - Bronze Lined Steel Rod End Sale REM-111-R-CB --- Male Rod Ends - 11.113x68.28 mm - 7/16-20 UNF Right - Bronze Lined Steel Rod End Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 12 mm (Equiv. 0.472 in.)	Overall Length (L) 69.00 mm (Equiv. 2.717 in.)	Thread Size M12x1.75 Right	Min. Thread Length (l2) 33.00 mm	Head Width (W) 12.00 mm	Eye Width (W1) 16.00 mm
Material: Bronze Lined Steel Head Diameter (D): 30.00 mm Centre Height (l1): 54.00 mm Grease Nipple: Yes
Part Number: REM-120-R-CB (10 Pcs) Male Rod Ends - 12x69 mm - M12x1.75 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 12 mm (Equiv. 0.472 in.)	Overall Length (L) 69.00 mm (Equiv. 2.717 in.)	Thread Size M12x1.75 Right	Min. Thread Length (l2) 33.00 mm
Material: Bronze Lined Steel Head Width (W): 12.00 mm Eye Width (W1): 16.00 mm Head Diameter (D): 30.00 mm Centre Height (l1): 54.00 mm Grease Nipple: Yes
Part Number: REM-120-R-CB (10 Pcs) Male Rod Ends - 12x69 mm - M12x1.75 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REM-120-R-CB (10 Pcs) --- Male Rod Ends - 12x69 mm - M12x1.75 Right - Bronze Lined Steel Rod End REM-120-R-CB (10 Pcs) --- Male Rod Ends - 12x69 mm - M12x1.75 Right - Bronze Lined Steel Rod End Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Out of stock! Backorder Now

Country/region

Collection: Rod Ends - Male - Steel - Bronze Lined - Standard

Category Details

Filter

Filter

Subscribe to our emails
