CCI-00635-CZY (PK-1250)

Name: Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip (Sold Per PK-1250) - - CCI-00635-CZY
Brand: MBA
SKU: CCI00635CZY
Price: 448.95 AUD
Availability: BackOrder

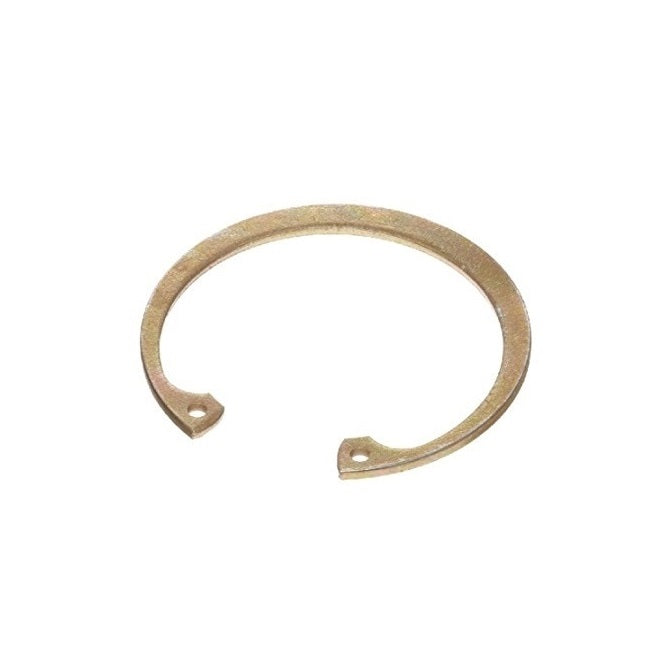

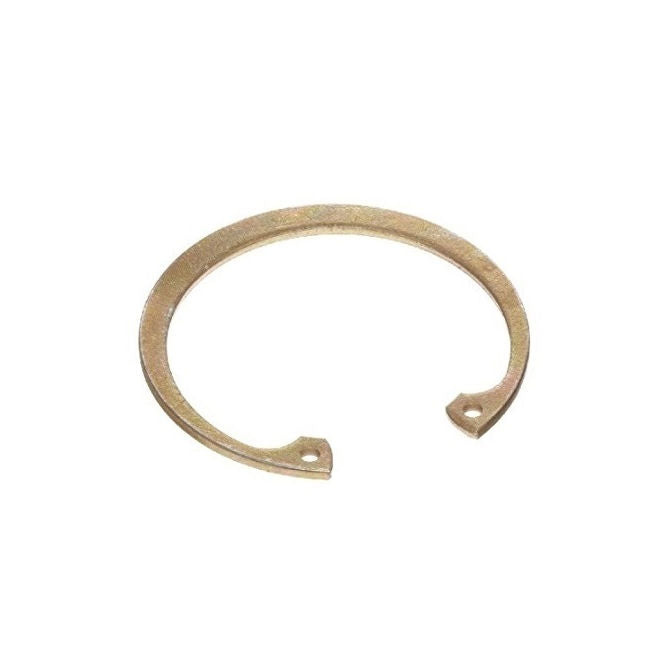

Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip

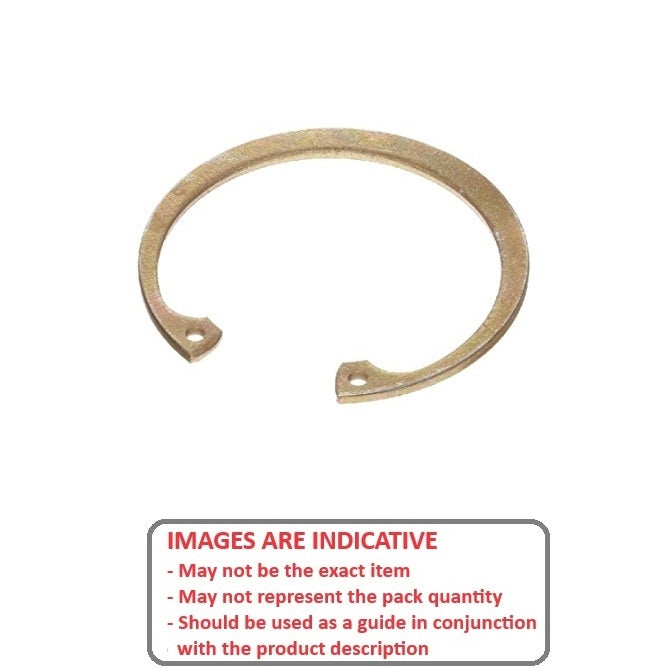

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$448.95 AUD

Priced, Stocked and Sold Per 1250 Units

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $404.06 AUD

Product Details

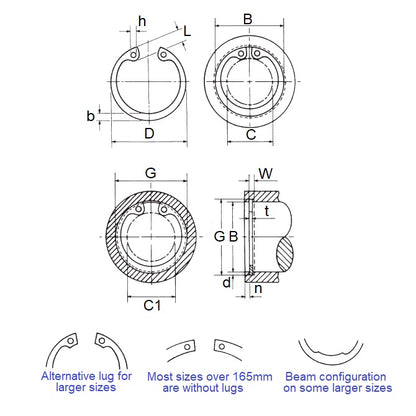

Housing Bore (B): 6.35mm
_{(6.35mm is 0.25 in.)}

Carbon Steel Zinc Plated

Housing Bore (B): 6.35mm
_{(6.35mm is 0.25 in.)}
Clip Thickness (T): 0.31mm
_{+/- 0.025}
_{(0.31mm is 0.012 in.)}
Groove Dia. (Dg): 6.81mm
_{+ 0.00 / - 0.05}
_{(6.81mm is 0.268 in.)}
Approx. Loose Circlip OD (Dr): 7.11mm
_{+ 0.25 / - 0.13}
Groove Width (W): 0.51mm
_{+ 0.05 / - 0.00}
Clearance in Bore (C): 2.79mm
Clearance in Groove (C1): 3.30mm
Min. Lug Diameter (h): 0.74mm
Min. Extension (n): 0.69
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98409A114
NoCor HO-025-ZD
Small Parts RI-4
N13000025AZD
N1300-0025AZD
HO025ZD
RI4

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
