BLTO-00635-CS-1 (Each)

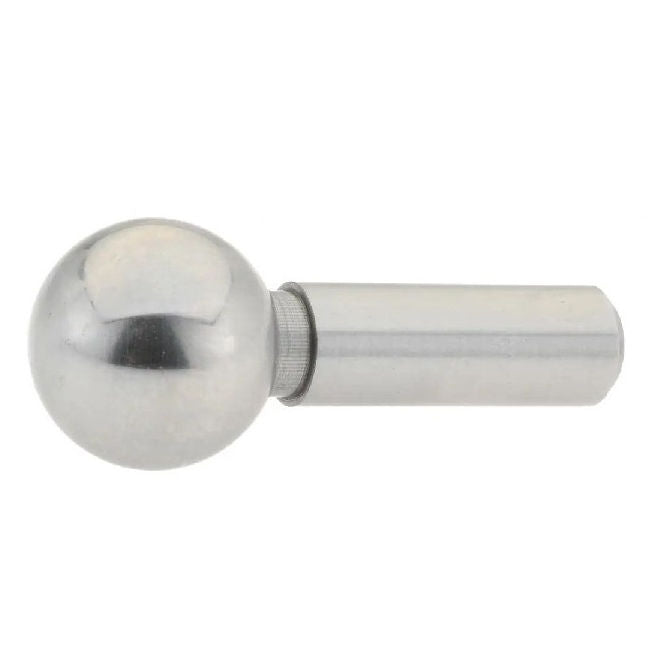

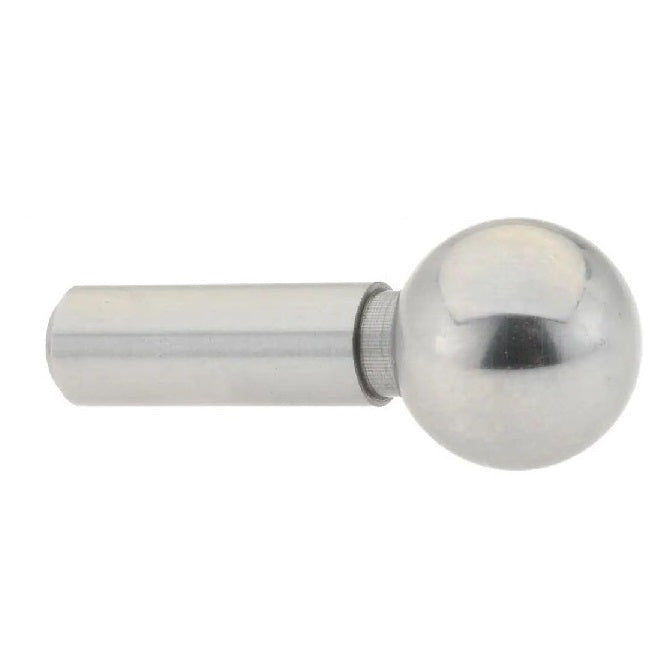

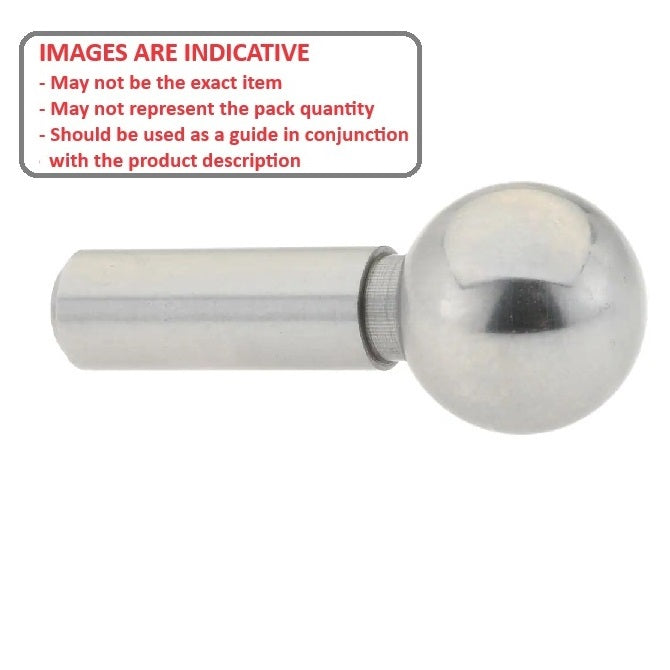

Tooling Balls - 6.35x3.175x14.3 mm One Piece - Carbon Steel Ball
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Balls Master Catalogue PDF
Order 50 or more
for $51.67 AUD Each
1/4x1/8x9/16 inch Ball - 6.35x3.175x14.3 mm Tooling Balls - Carbon Steel - Sold per Each:
Base Category: Balls - Tooling
Top Level Category: Balls - Tooling - One Piece - Slip Fit - Standard - Steel
Product Details

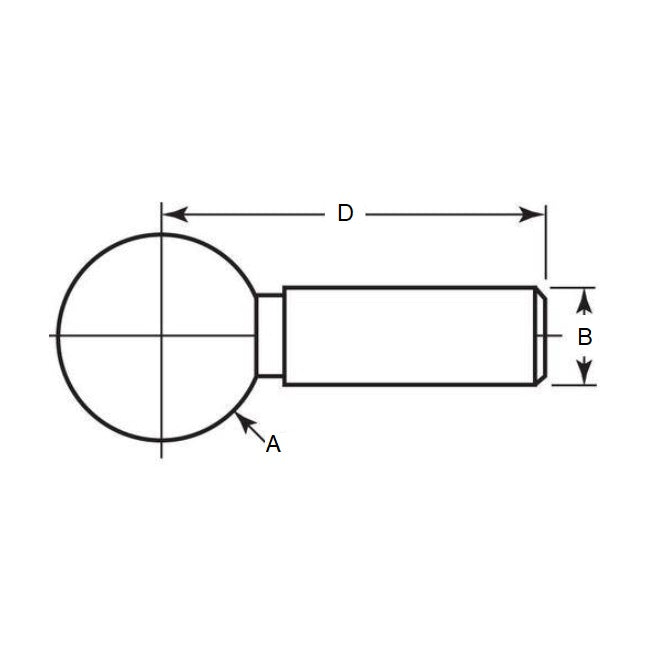

Diameter (A): 6.350mm+/- 0.0051
(6.350mm is 0.25 in.)
Carbon Steel
- Diameter (A): 6.350mm
+/- 0.0051
(6.350mm is 0.25 in.)
- Shank Diameter (B): 3.175mm
+ 0.0000 / - 0.0102
(3.175mm is 0.125 in.)
- Base to Centre (C): 14.300mm
(14.300mm is 0.563 in.)
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- Reid Tool® TCB-26705
- TCB26705
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLTO00635CS1, BLTO00635
