BLTO-00635-CS-1 - Datasheet

MBA

Category Information

Balls - Tooling - One Piece - Slip Fit - Standard - Steel

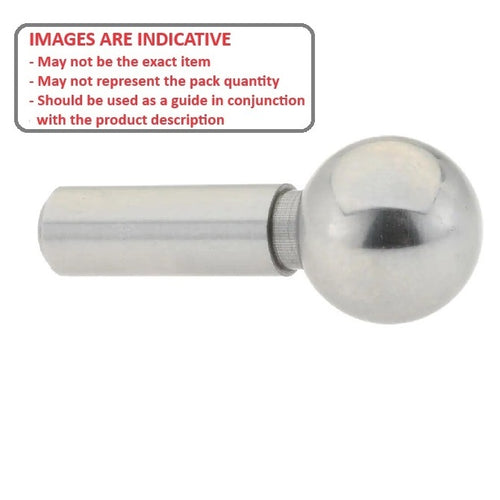

Steel Standard Slip Fit One Piece Tooling Balls. 1144 steel heat treated to 53-57 RC

  • High quality tooling balls provide a precise reference point for critical machining operations.
  • Tooling balls, also known as tooling spheres or precision spheres, are precision components used in fixture design, tooling setup, and alignment applications.
  • Tooling balls are made of hardened steel or other materials with high wear resistance and precision-ground surfaces.
  • Available with slip fit or light press fit shank diameters.

Product Data

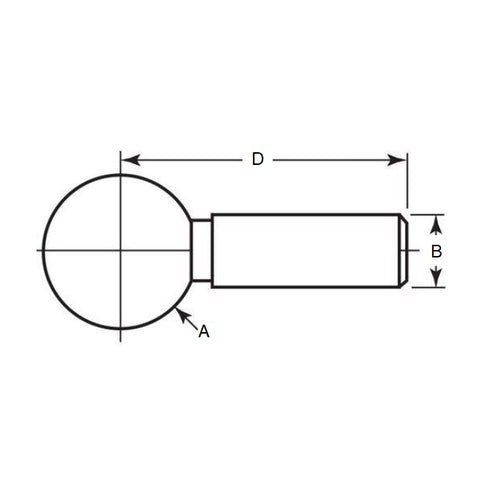

  • Diameter (A) : 6.350 mm +/- 0.0051
    (Equiv. 0.25 in.)
  • Shank Diameter (B) 3.175 mm + 0.0000 / - 0.0102
    (Equiv. 0.125 in.)
  • Base to Centre (C) 14.300 mm
    (Equiv. 0.563 in.)
  • Material Carbon Steel
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • TCB26705
  • TCB-26705
