R4-MC3-ACO (100 Pcs)

Name: R4-MC3-ACO (100 Pack) - Single Row Ball Bearings - 6.35x15.875x4.978 mm Unflanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: R4MC3ACO
Price: 348.59 AUD
Availability: BackOrder

Single Row Ball Bearings - 6.35x15.875x4.978 mm Unflanged - Chrome Steel SAE 52100 Bearing

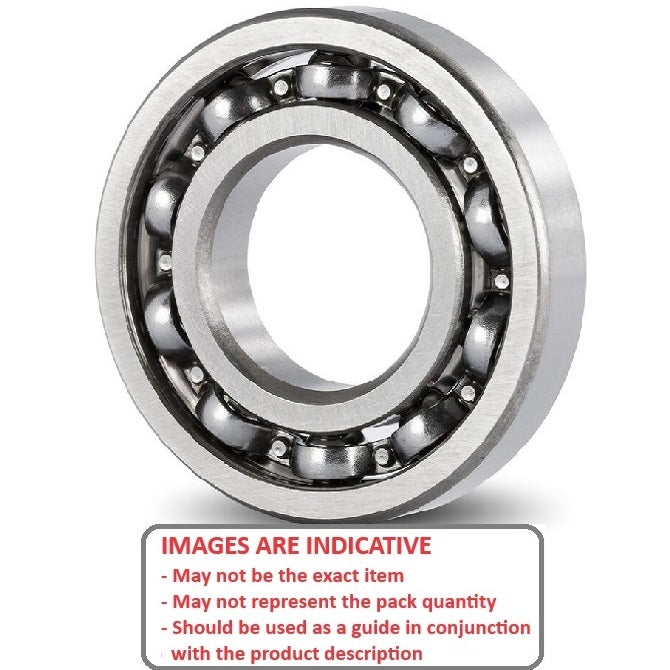

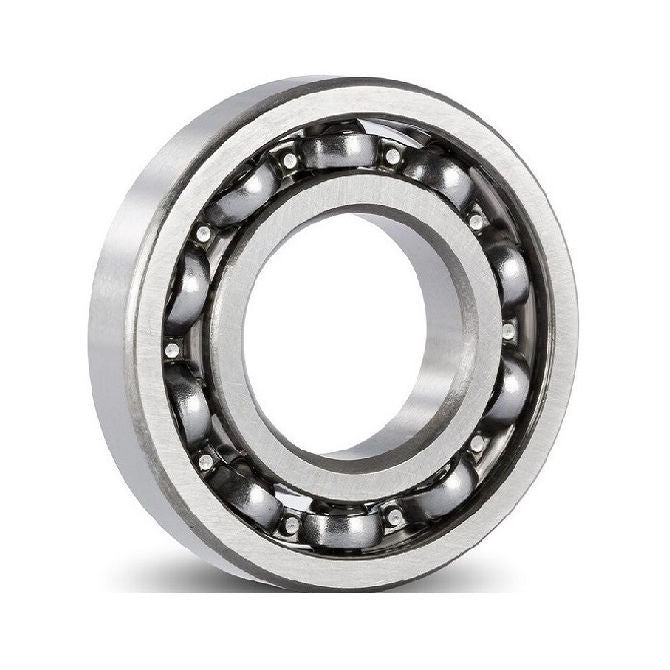

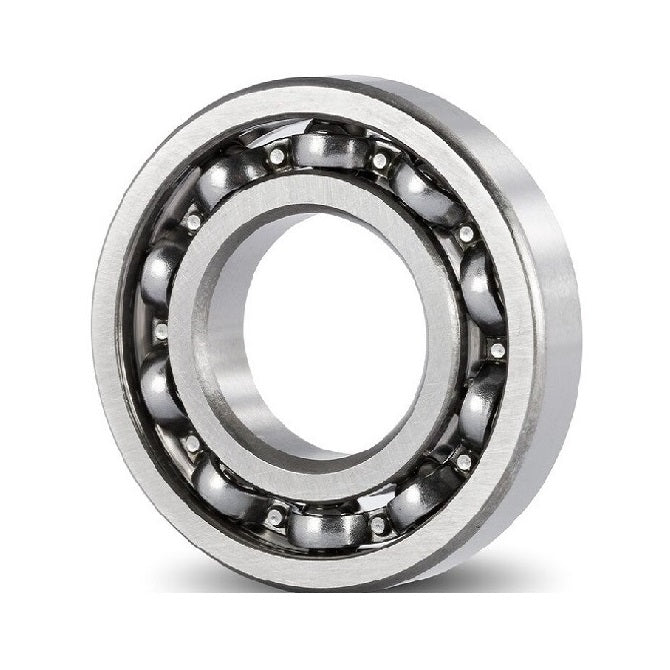

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$348.59 AUD

~~$418.31 AUD~~ $348.59 AUD

Excludes GST and overseas Taxes & Duties

per 100
Backorder
Order 50 or more pack (5000 pcs) for $313.73 AUD per 100

Product Details

ID (d): 6.350mm
_{+ 0.000 / - 0.0075}
_{(6.350mm is 0.25 in.)}

Chrome Steel SAE 52100

ID (d): 6.350mm
_{+ 0.000 / - 0.0075}
_{(6.350mm is 0.25 in.)}
OD (D): 15.875mm
_{+ 0.000 / - 0.0075}
_{(15.875mm is 0.625 in.)}
Width (B): 4.978mm
_{+ 0.000 / - 0.125}
_{(4.978mm is 0.196 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
60355K503
GRW BR1-4A
FAG EE1.1-2
FAG R4
MPB R4
NHBB R4
NTN R4
WIB R4
MPB R4C
NHBB R-4KC
MPB R4R
FAFNIR S1K7
ADR Y1-4
BR14A
EE112
R4KC
R8020
R4MC3P13
R4BASIC

Used for

RC Nitro Engine Parts
K.B - 21 - 3.5 Aircraft - Front Bearing
K.B - 3.5 Inboard New - Front Bearing
K.B - 3.5 Outboard Old - Front Bearing
K.B - 3.5 Outboard X.196 - Front Bearing
K.B - 40-11 - Front Bearing
McCoy - 29 Old 1946 - Front Bearing
OS - FS60 - 4 Stroke - Camshaft Bearing 6.35-15.875mm
OS - FS90 - 4 Stroke W-Muffler - Camshaft Rear Bearing 6.35-15.875mm
Veco - 19 - Front Bearing

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
