TOK-DR-22-H6W1 (2 Pcs)

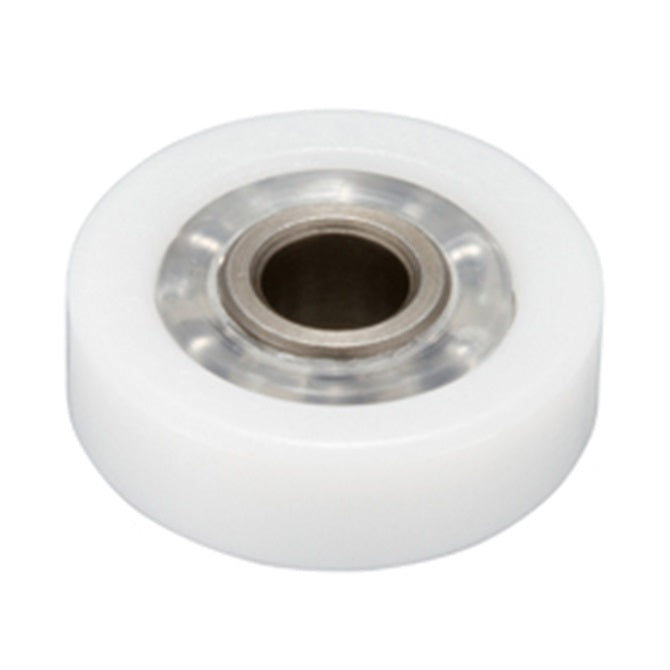

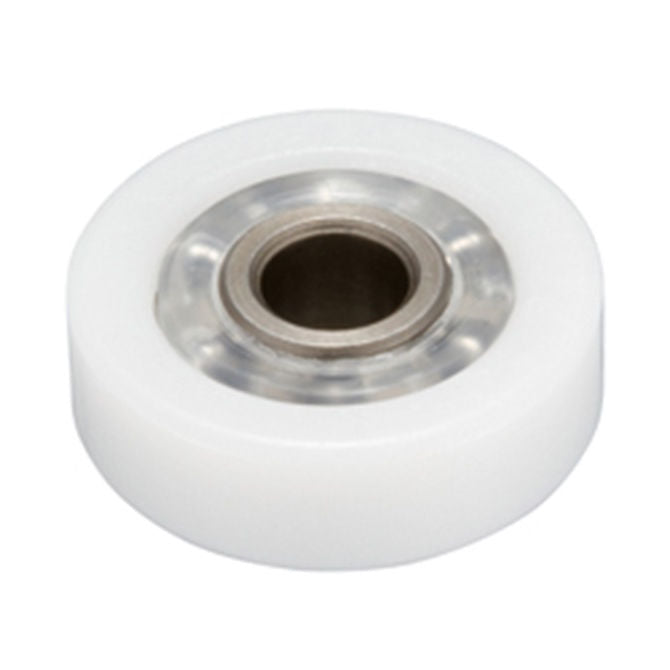

Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race Bearing

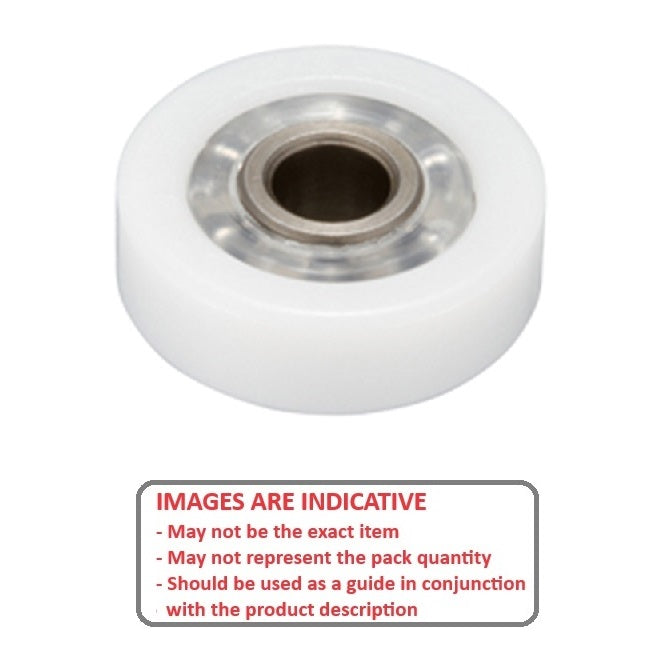

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$3.56 AUD
$9.18 AUD $3.56 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
 Qty: 22 available now
Only 22 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Special Type

Top Level Category: Bearings - Special Type - Acetal

Product Details


Deleted Item. Available while stocks last.

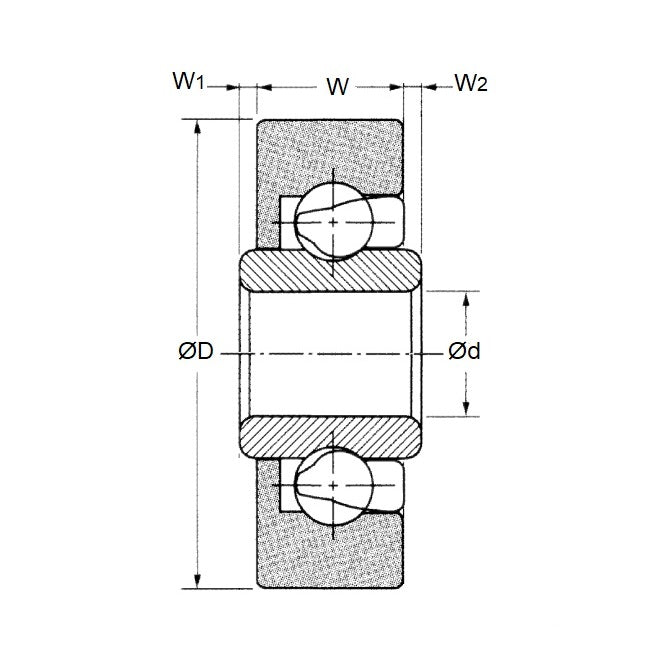

ID (d): 6.000mm
+ 0.10 / - 0.00
(6.000mm is 0.236 in.)

Acetal with Mild Steel Inner Race
  • ID (d): 6.000mm
    + 0.10 / - 0.00
    (6.000mm is 0.236 in.)
  • OD (D): 22.000mm
    + 0.00 / - 0.10
    (22.000mm is 0.866 in.)
  • Width (W): 7.000 / 9.000mm
    + 0.00 / - 0.20
    (7.000 / 9.000mm is 0.276 in.)
  • W1: 1.000mm
  • W2: 1.000mm
  • N: 9.50mm
  • Type: 4
  • Special Features: Mild steel inner race 9mm wide extends 1mm each side.
  • Dynamic Load Rating: 20Kg
    at 300 RPM

  • at 300 RPM

Brand: MBA
Country of Origin: JP

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
