Bearings - Special Type - Acetal

5 Products in this selection
  • Light duty acetal bearings used for drawer runners, light duty tracks, garage doors and more.
  • See descriptions for special features
  • Not all items are listed in this category. Please contact us if you have a similar type bearing with different dimensions.
Miniature Bearings Australia (Minibearings)

Additional resources:
A more concise listing may be found on the Smallparts store at Bearings - Special Type - Acetal. Smallparts promote the most popular MBA products.
ID (d) OD (D) Width (W) W1 W2 N Indicative
ID (d)
6.000
mm
+ 0.10 / - 0.00
(0.236 in.)
OD (D)
22.000
mm
+ 0.00 / - 0.10
(0.866 in.)
Width (W)
7.000 / 9.000
mm
+ 0.00 / - 0.20
(0.276 in.)
W1
1.000
mm
W2
1.000
mm
N
9.50
mm

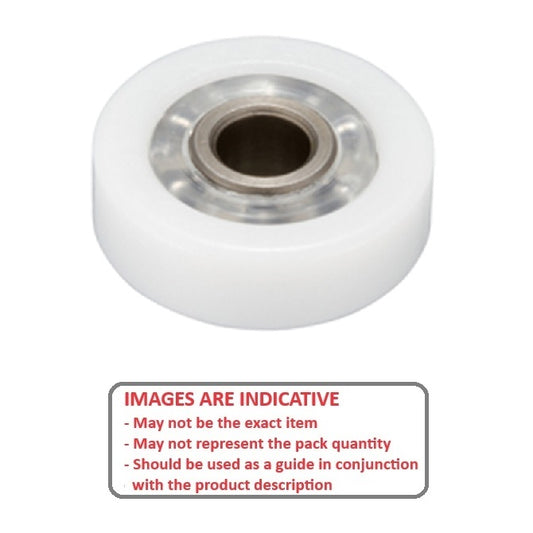

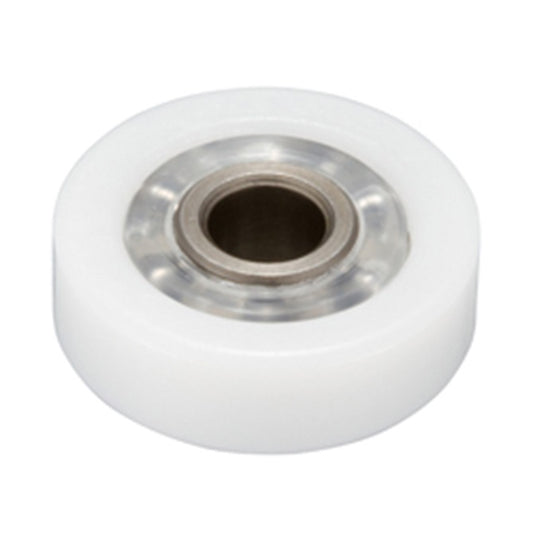

Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race
Material: Acetal with Mild Steel Inner Race    Type: 4    Special Features: Mild steel inner race 9mm wide extends 1mm each side.    Dynamic Load Rating: 20 Kg at 300 RPM
Part Number: TOK-DR-22-H6W1 (2 Pcs) Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race
26 units (52 pcs) Available Immediately | Item Discontinued - Up to 26 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.56 AUD
$13.44 AUD $3.56 AUD
Per 2
ID (d) OD (D) Width (W) W1 Indicative
ID (d)
6.000
mm
+ 0.10 / - 0.00
(0.236 in.)
OD (D)
22.000
mm
+ 0.00 / - 0.10
(0.866 in.)
Width (W)
7.000 / 9.000
mm
+ 0.00 / - 0.20
(0.276 in.)
W1
1.000
mm
Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race
Material: Acetal with Mild Steel Inner Race    W2: 1.000 mm    N: 9.50 mm    Type: 4    Special Features: Mild steel inner race 9mm wide extends 1mm each side.    Dynamic Load Rating: 20 Kg at 300 RPM
Part Number: TOK-DR-22-H6W1 (2 Pcs) Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race
26 units (52 pcs) Available Immediately | Item Discontinued - Up to 26 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.56 AUD
$13.44 AUD $3.56 AUD
Per 2
ID (d)
M6x1 (8mm Long) Thread
mm
+ 0.10 / - 0.00
OD (D)
22.000
mm
+ 0.00 / - 0.10
(0.866 in.)
Width (W)
7.000
mm
+ 0.00 / - 0.20
(0.276 in.)
N
9.50
mm

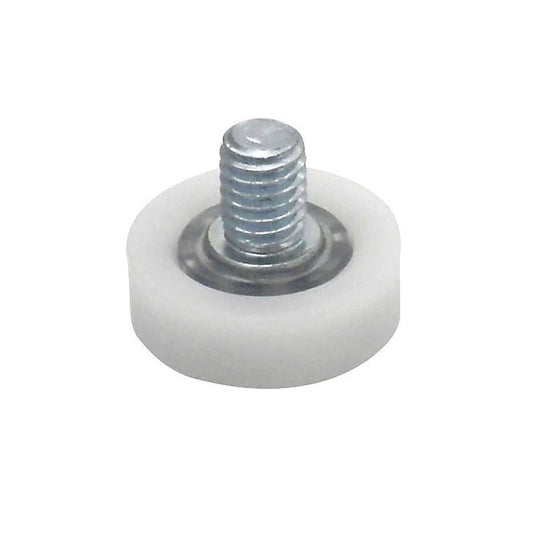

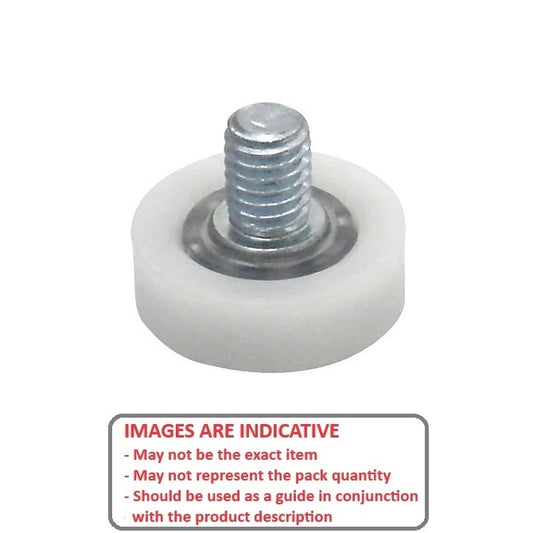

Special Type Bearings - M6x1 -8mm Long- Thread 22x7 mm - Acetal
Material: Acetal    Type: 6    Special Features: Mild steel M6x1 x 8mm long thread.    Dynamic Load Rating: 20 Kg at 300 RPM
Part Number: TOK-DR-22-B05 Special Type Bearings - M6x1 - 8mm Long - Thread 22x7 mm - Acetal
71 Available Immediately | Further orders can be expected around Mon, Jul 28, 2025
$3.23 AUD
$3.23 AUD
Each
ID (d)
M6x1 (8mm Long) Thread
mm
+ 0.10 / - 0.00
OD (D)
22.000
mm
+ 0.00 / - 0.10
(0.866 in.)
Width (W)
7.000
mm
+ 0.00 / - 0.20
(0.276 in.)
Special Type Bearings - M6x1 -8mm Long- Thread 22x7 mm - Acetal
Material: Acetal    N: 9.50 mm    Type: 6    Special Features: Mild steel M6x1 x 8mm long thread.    Dynamic Load Rating: 20 Kg at 300 RPM
Part Number: TOK-DR-22-B05 Special Type Bearings - M6x1 - 8mm Long - Thread 22x7 mm - Acetal
71 Available Immediately | Further orders can be expected around Mon, Jul 28, 2025
$3.23 AUD
$3.23 AUD
Each
View the product page first if you are unsure.
ID (d)
10.450 Shaft
mm
+ 0.10 / - 0.00
(0.411 in.)
OD (D)
45.000
mm
+ 0.00 / - 0.10
(1.772 in.)
Width (W)
11.700
mm
+ 0.00 / - 0.20
(0.461 in.)
W1
N/A
mm
W2
N/A
mm
N
N/A
mm

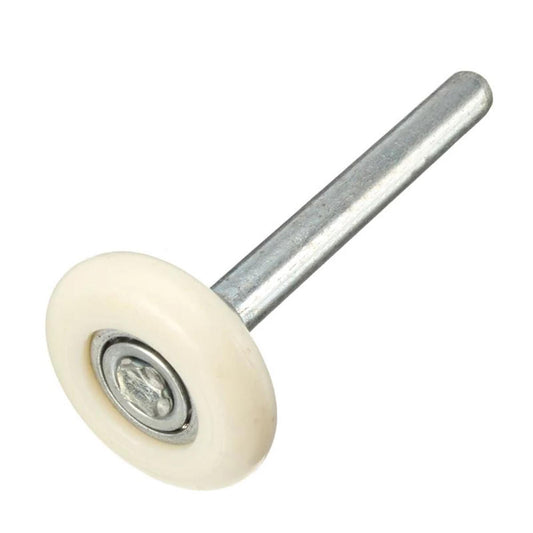

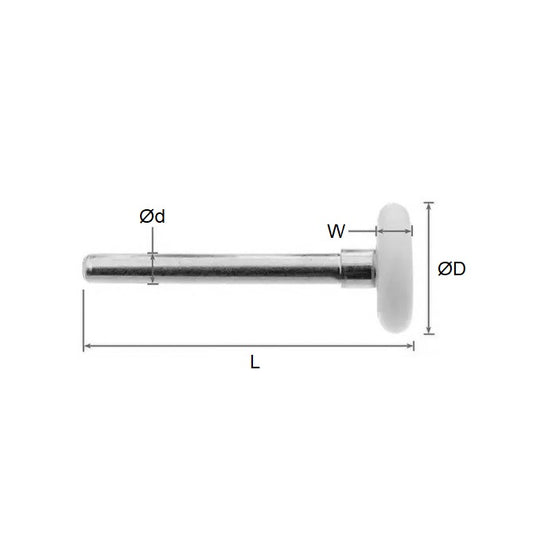

Special Type Bearings - 10.450 Shaft 45x11.7 mm - Nylon Polyamide 6/6
Material: Nylon (Polyamide 6/6)    Type: Not Shown    Special Features: Nylon roller mounted on shaft 106mm overall length    Dynamic Load Rating: 40 Kg at 300 RPM
Part Number: BRG-GDR-45-106 (100 Pcs) Special Type Bearings - 10.450 Shaft 45x11.7 mm Acetal - Nylon Polyamide 6/6
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 22, 2025
$355.59 AUD
$752.04 AUD $355.59 AUD
Per 100
ID (d)
10.450 Shaft
mm
+ 0.10 / - 0.00
(0.411 in.)
OD (D)
45.000
mm
+ 0.00 / - 0.10
(1.772 in.)
Width (W)
11.700
mm
+ 0.00 / - 0.20
(0.461 in.)
W1
N/A
mm
Special Type Bearings - 10.450 Shaft 45x11.7 mm - Nylon Polyamide 6/6
Material: Nylon (Polyamide 6/6)    W2: N/A mm    N: N/A mm    Type: Not Shown    Special Features: Nylon roller mounted on shaft 106mm overall length    Dynamic Load Rating: 40 Kg at 300 RPM
Part Number: BRG-GDR-45-106 (100 Pcs) Special Type Bearings - 10.450 Shaft 45x11.7 mm Acetal - Nylon Polyamide 6/6
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 22, 2025
$355.59 AUD
$752.04 AUD $355.59 AUD
Per 100
View the product page first if you are unsure.
ID (d)
12.700
mm
+ 0.10 / - 0.00
(0.5 in.)
OD (D)
34.925
mm
+ 0.00 / - 0.10
(1.375 in.)
Width (W)
11.113 / 11.911
mm
+ 0.00 / - 0.20
(0.438 in.)
W1
0.798
mm
W2
N/A
mm

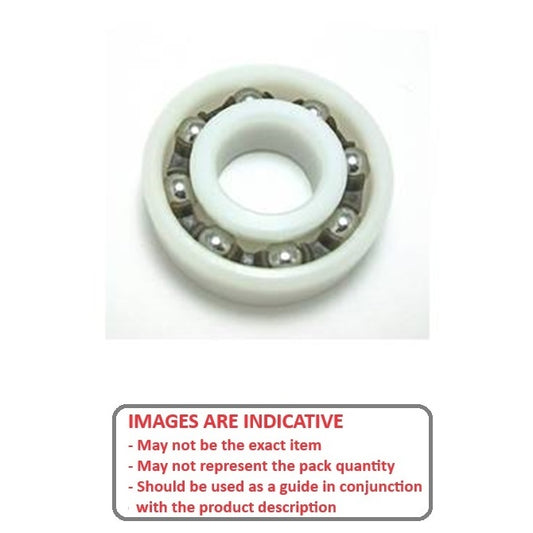

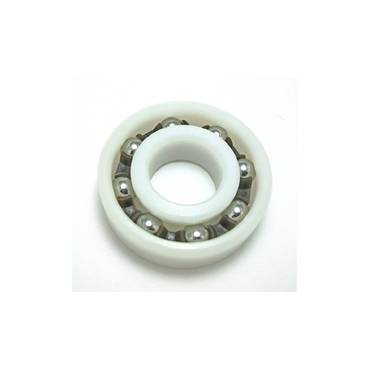

Special Type Bearings - 12.7x34.925 - 11.113 / 11.911 / 0.798 mm - Acetal
Material: Acetal    Max RPM in Air: 1064    Type: All Acetal, Stainless Balls, Inner Ext. One Side    Special Features: Anti-Static POM / 316 Stainless    Dynamic Load Rating: 37.9 Kg    Static Load Rating: 30.4 Kg
Part Number: P-WR12216-1-AS6 Special Type Bearings - 12.7x34.925 - 11.113 / 11.911 / 0.798 mm - Acetal
270 Available Immediately | Item Discontinued - Up to 270 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.51 AUD
$31.67 AUD $8.51 AUD
Each
ID (d)
12.700
mm
+ 0.10 / - 0.00
(0.5 in.)
OD (D)
34.925
mm
+ 0.00 / - 0.10
(1.375 in.)
Width (W)
11.113 / 11.911
mm
+ 0.00 / - 0.20
(0.438 in.)
W1
0.798
mm
Special Type Bearings - 12.7x34.925 - 11.113 / 11.911 / 0.798 mm - Acetal
Material: Acetal    W2: N/A mm    Max RPM in Air: 1064    Type: All Acetal, Stainless Balls, Inner Ext. One Side    Special Features: Anti-Static POM / 316 Stainless    Dynamic Load Rating: 37.9 Kg    Static Load Rating: 30.4 Kg
Part Number: P-WR12216-1-AS6 Special Type Bearings - 12.7x34.925 - 11.113 / 11.911 / 0.798 mm - Acetal
270 Available Immediately | Item Discontinued - Up to 270 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.51 AUD
$31.67 AUD $8.51 AUD
Each
ID (d)
12.700
mm
+ 0.10 / - 0.00
(0.5 in.)
OD (D)
34.925
mm
+ 0.00 / - 0.10
(1.375 in.)
Width (W)
11.113 / 12.700
mm
+ 0.00 / - 0.20
(0.438 in.)
W1
1.59
mm
W2
N/A
mm
Special Type Bearings - 12.7x34.925 - 11.113 / 12.700 / 1.59 mm - Acetal
Material: Acetal    Max RPM in Air: 1064    Type: All Acetal, Stainless Balls, Inner Ext. One Side    Special Features: Anti-Static POM / 316 Stainless    Dynamic Load Rating: 37.9 Kg    Static Load Rating: 30.4 Kg
Part Number: P-WR12216-1E-AS6 (100 Pcs) Special Type Bearings - 12.7x34.925 - 11.113 / 12.700 / 1.59 mm - Acetal
Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
$1,489.50 AUD
$3,152.16 AUD $1,489.50 AUD
Per 100
ID (d)
12.700
mm
+ 0.10 / - 0.00
(0.5 in.)
OD (D)
34.925
mm
+ 0.00 / - 0.10
(1.375 in.)
Width (W)
11.113 / 12.700
mm
+ 0.00 / - 0.20
(0.438 in.)
W1
1.59
mm
Special Type Bearings - 12.7x34.925 - 11.113 / 12.700 / 1.59 mm - Acetal
Material: Acetal    W2: N/A mm    Max RPM in Air: 1064    Type: All Acetal, Stainless Balls, Inner Ext. One Side    Special Features: Anti-Static POM / 316 Stainless    Dynamic Load Rating: 37.9 Kg    Static Load Rating: 30.4 Kg
Part Number: P-WR12216-1E-AS6 (100 Pcs) Special Type Bearings - 12.7x34.925 - 11.113 / 12.700 / 1.59 mm - Acetal
Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
$1,489.50 AUD
$3,152.16 AUD $1,489.50 AUD
Per 100
View the product page first if you are unsure.
