FMR85A-ZZS-MC3

Name: FMR85A-ZZS-MC3 - Single Row Ball Bearings - 5x8x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: FMR85AZZSMC3
Price: 4.95 AUD
Availability: InStock

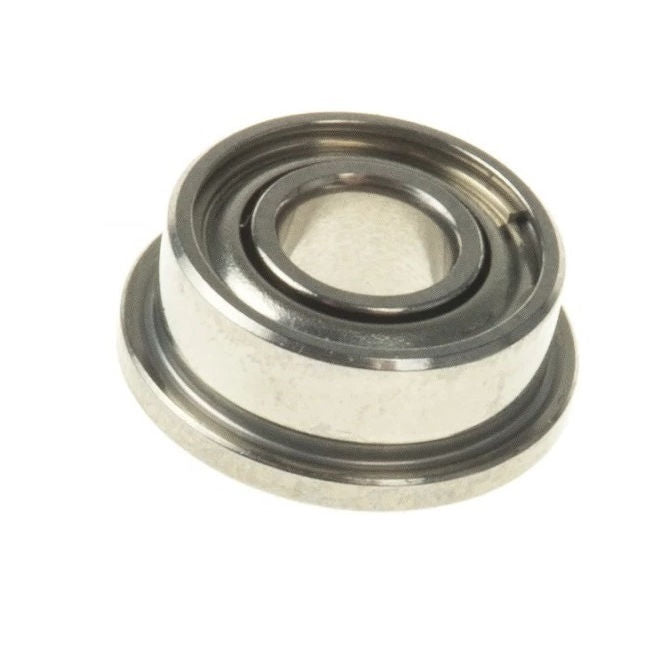

Single Row Ball Bearings - 5x8x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.95 AUD

Each
Qty: 399 available now
Order 50 or more for $4.46 AUD Each

Product Details

ID (d): 5.000mm
_{+ 0.000 / - 0.0075}
_{(5.000mm is 0.197 in.)}

Chrome Steel SAE 52100

OD (D): 8.000mm
_{+ 0.000 / - 0.0075}
_{(8.000mm is 0.315 in.)}
Width (B): 2.500mm
_{+ 0.000 / - 0.125}
_{(2.500mm is 0.098 in.)}
Flange Diameter (DF): 9.200mm
Flange Width (BF): 0.600mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
57155K566
SERPENT 5x8
Nachi F5M08-ZZ
NTN FLWA675-ZZA
Similar Part FMR85A-ZZ-MC3
ISO MF85ZZ
ISO MF85-ZZ
BSC MLF5008-ZZ
MLF5008ZZ
FMR85A-ZZSMC3
FMR85AZZSMC3
F5M08ZZ
FLWA675ZZA
LF850-ZZ
LF850ZZ
FMR85ABASIC

Used for

RC Car Parts
CEN - Matrix - Flanged Bearing 5-8-2.5mm
Cross Fire Force - F1 Electric - Flanged Bearing 5-8-2.5mm
Duratrax - Evader BX Nitro - Flanged Bearing 5-8-2.5mm
Duratrax - Evader ST Nitro - Flanged Bearing 5-8-2.5mm
Duratrax - Street Force GP2 and RTR - Flanged Bearing 5-8-2.5mm
GS General Silicone - Storm Pro Gas - Flanged Bearing 5-8-2.5mm
Hobao - Hyper 8 - Flanged Bearing 5-8-2.5mm
Hobao - Hyper E ST Truggy - Flanged Bearing 5-8-2.5mm
Hot Bodies - Lightning Stadium Pro - Flanged Bearing 5-8-2.5mm
Hot Bodies - Lightning Stadium RTR - Flanged Bearing 5-8-2.5mm
HPI - R40 With Clutch Bell And Steering - Flanged Bearing 5-8-2.5mm
Mugen - MBX-RR - Flanged Bearing 5-8-2.5mm
Ofna - Hyper 7 Pro - Flanged Bearing 5-8-2.5mm
Ofna - Jammin - Flanged Bearing 5-8-2.5mm
Ofna - Jammin 1 CR - Flanged Bearing 5-8-2.5mm
Ofna - Jammin 1 CR With Steering - Flanged Bearing 5-8-2.5mm
Ofna - Ultra LX COMP RTR - Flanged Bearing 5-8-2.5mm
Picco - Integra 1/8 Gas - Flanged Bearing 5-8-2.5mm
Picco - Shepherd Speed 1/8 - Flanged Bearing 5-8-2.5mm
RD Logistics - Mongoose - Flanged Bearing 5-8-2.5mm
Schumaker - Fusion R12 - Flanged Bearing 5-8-2.5mm
Serpent - 710 1-10TH Gas Sedan - Flanged Bearing 5-8-2.5mm
Serpent - 835 1-10 2WD - Flanged Bearing 5-8-2.5mm
Serpent - 835 1-10 4WD - Flanged Bearing 5-8-2.5mm
Serpent - 950R With STE Ten and Front Wheel UP - Flanged Bearing 5-8-2.5mm
Serpent - 950R With Steering and Tensioner - Flanged Bearing 5-8-2.5mm
Serpent - 960 - Flanged Bearing 5-8-2.5mm
Serpent - 960 FD - Flanged Bearing 5-8-2.5mm
Serpent - Excel 1/8 Gas - Flanged Bearing 5-8-2.5mm
Serpent - Impact 10 M2 Challenger - Flanged Bearing 5-8-2.5mm
Serpent - Impact 10 Pro 2 - Flanged Bearing 5-8-2.5mm
Serpent - Impact M2 Spec 2000 4WD - Flanged Bearing 5-8-2.5mm
Serpent - Impact-10 - Flanged Bearing 5-8-2.5mm
Serpent - Impulse 1/10 Scale Single SPE - Flanged Bearing 5-8-2.5mm
Serpent - Impulse Street 2 Speed 4WD - Flanged Bearing 5-8-2.5mm
Serpent - Impulse Street Spec 4WD - Flanged Bearing 5-8-2.5mm
Serpent - Sprint 6000 Gas - Flanged Bearing 5-8-2.5mm
Serpent - Vector - Flanged Bearing 5-8-2.5mm
Serpent - Vector Spec 2000 - Flanged Bearing 5-8-2.5mm
Tamiya - Bruiser - Flanged Bearing 5-8-2.5mm
Tamiya - Mountaineer - Flanged Bearing 5-8-2.5mm
Tamiya - TOA-3R Series - Flanged Bearing 5-8-2.5mm
Trinity - G4 Nitro Touring Car-E Class - Flanged Bearing 5-8-2.5mm
Trinity - Mongoose - Flanged Bearing 5-8-2.5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
