FMR85A-2RS-ECO (PK-10)

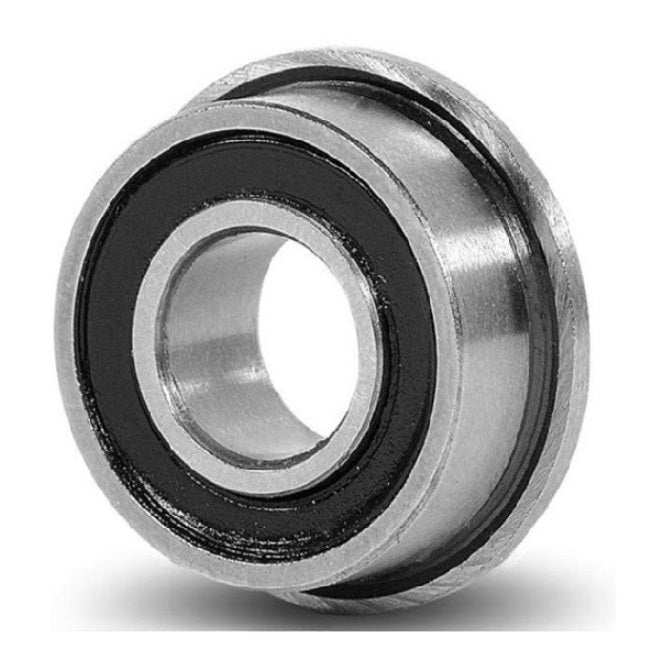

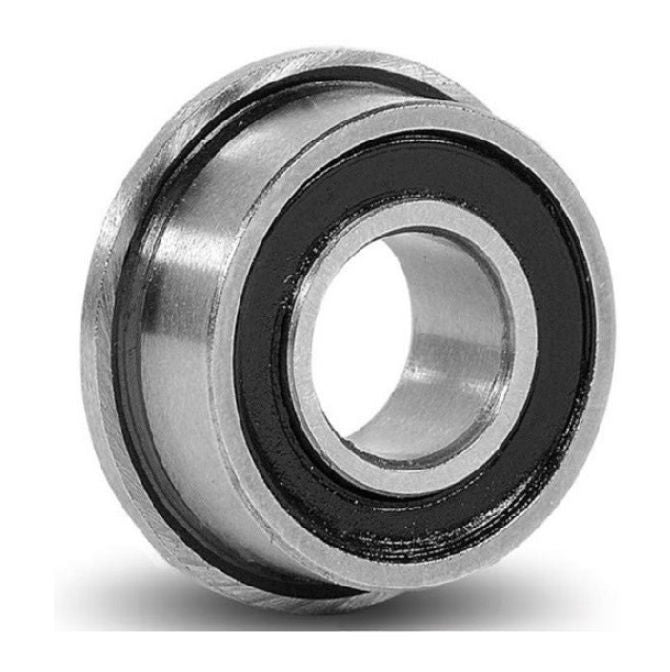

Single Row Ball Bearings - 5x8x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing

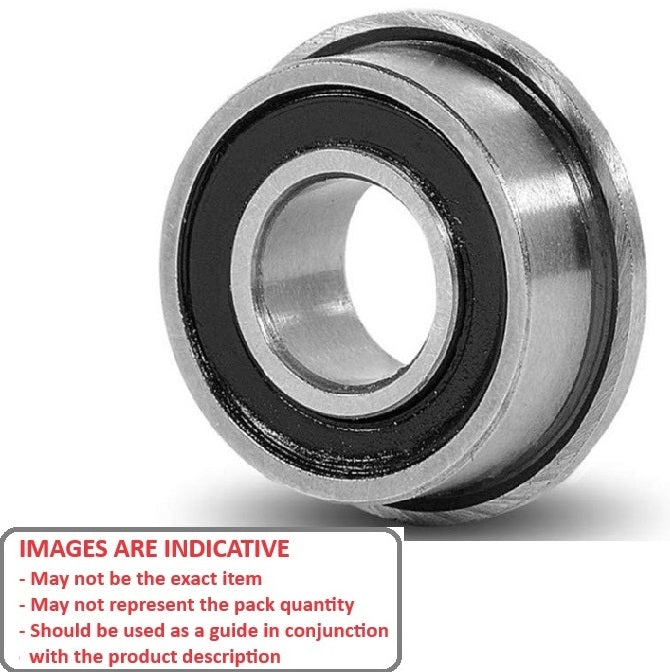

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 5x8x2.5 mm - Chrome Steel SAE 52100
1 4

ECO

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
 Qty: 18 packs (180 pcs) available now
Only 18 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details


Deleted Item. Available while stocks last. Double black rubber sealed economy flanged bearing

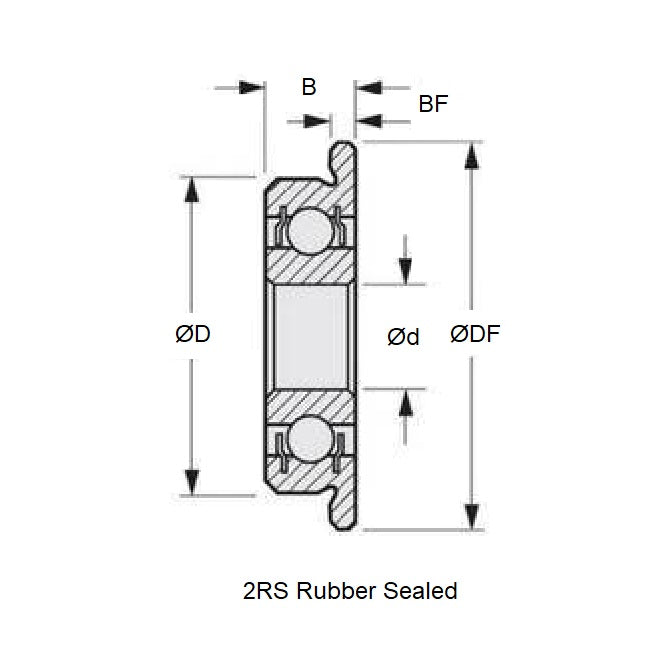

ID (d): 5.000mm
(5.000mm is 0.197 in.)

Chrome Steel SAE 52100
  • ID (d): 5.000mm
    (5.000mm is 0.197 in.)
  • O.D. (D): 8.000mm
    (8.000mm is 0.315 in.)
  • Width (B): 2.500mm
    (2.500mm is 0.098 in.)
  • Flange Diameter (DF): 9.200mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Economy
  • Closure Type: 2RS
  • Bearing Type: Radial Flanged

Brand: ECO
Country of Origin: TW

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • Sealed Width A FMR85 / 2
  • Sealed FMR85A / 2
  • FMR85ABASIC

Used for

  • RC Car Parts
  • CEN - Matrix - Replacement Bearing
  • Cross Fire Force® - F1 Electric - Replacement Bearing
  • Duratrax® - Evader BX Nitro - Replacement Bearing
  • Duratrax® - Evader ST Nitro - Replacement Bearing
  • Duratrax® - Street Force GP2 and RTR - Replacement Bearing
  • GS General Silicone - Storm Pro Gas - Replacement Bearing
  • Hobao® - Hyper 8 - Replacement Bearing
  • Hobao® - Hyper E ST Truggy - Replacement Bearing
  • Hot Bodies® - Lightning Stadium Pro - Replacement Bearing
  • Hot Bodies® - Lightning Stadium RTR - Replacement Bearing
  • HPI - R40 With Clutch Bell And Steering - Replacement Bearing
  • Mugen® - MBX-RR - Replacement Bearing
  • Ofna® - Hyper 7 Pro - Replacement Bearing
  • Ofna® - Jammin - Replacement Bearing
  • Ofna® - Jammin 1 CR - Replacement Bearing
  • Ofna® - Jammin 1 CR With Steering - Replacement Bearing
  • Ofna® - Ultra LX COMP RTR - Replacement Bearing
  • Picco® - Integra 1/8 Gas - Replacement Bearing
  • Picco® - Shepherd Speed 1/8 - Replacement Bearing
  • RD Logistics - Mongoose - Replacement Bearing
  • Schumaker® - Fusion R12 - Replacement Bearing
  • Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
  • Serpent® - 835 1-10 2WD - Replacement Bearing
  • Serpent® - 835 1-10 4WD - Replacement Bearing
  • Serpent® - 950R With STE Ten and Front Wheel UP - Replacement Bearing
  • Serpent® - 950R With Steering and Tensioner - Replacement Bearing
  • Serpent® - Excel 1/8 Gas - Replacement Bearing
  • Serpent® - Impact 10 M2 Challenger - Replacement Bearing
  • Serpent® - Impact 10 Pro 2 - Replacement Bearing
  • Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
  • Serpent® - Impact-10 - Replacement Bearing
  • Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
  • Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
  • Serpent® - Impulse Street Spec 4WD - Replacement Bearing
  • Serpent® - Sprint 6000 Gas - Replacement Bearing
  • Serpent® - Vector - Replacement Bearing
  • Serpent® - Vector Spec 2000 - Replacement Bearing
  • Serpent® - Veteq - Replacement Bearing
  • Tamiya® - Bruiser - Replacement Bearing
  • Tamiya® - Mountaineer - Replacement Bearing
  • Tamiya® - TOA-3R Series - Replacement Bearing
  • Thunder Tiger® - EK-4 S2 Sport 1/8 Scale - Replacement Bearing
  • Trinity® - G4 Nitro Touring Car-E Class - Replacement Bearing
  • Trinity® - Mongoose - Replacement Bearing
  • Xray® - X Ray - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
