PSP-050-040H-S420 (PK-2)

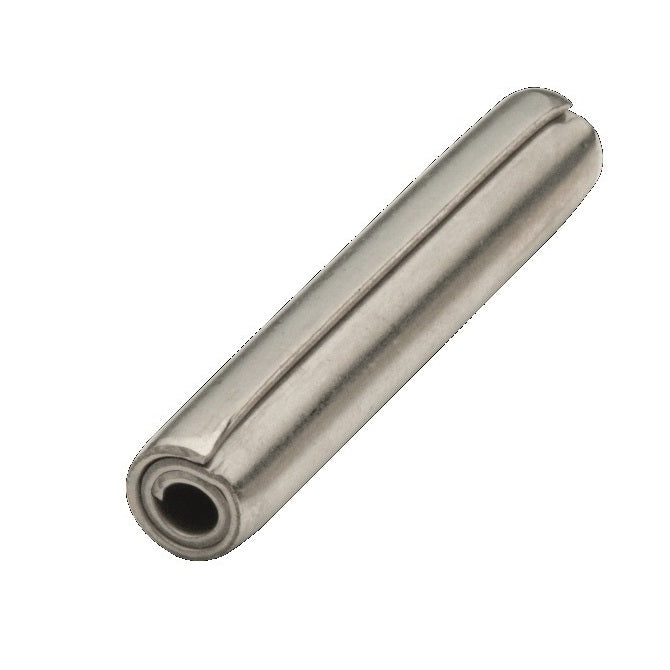

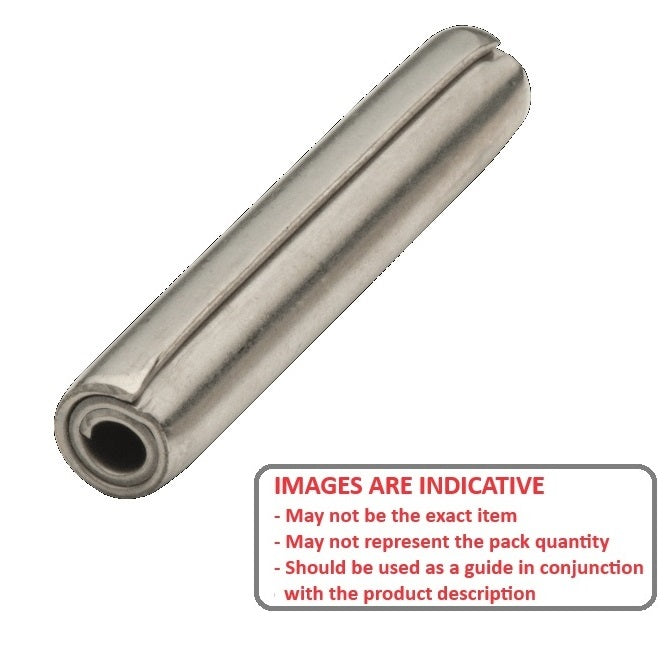

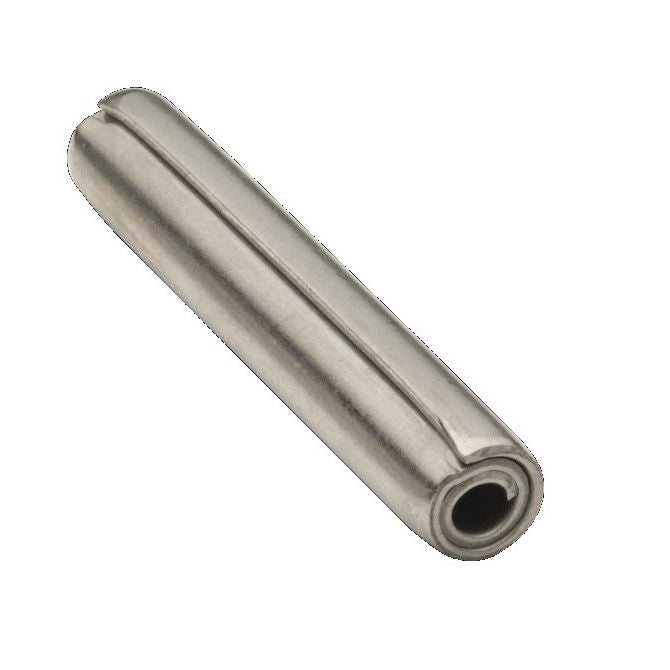

Coiled Pins - 5x40 - 5.00 - 5.12 - Stainless Steel AISI 420C Oiled Rc 46-52 Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Order 50 or more packs of 2 (100 pcs)
for $4.29 AUD per 2 pack
Couldn't load pickup availability
5x40 - 5.00 - 5.12 Coiled Pins - Stainless Steel AISI 420C Oiled Rc 46-52 - Sold per pack of 2:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Stainless - Heavy Duty
Product Details
Nominal Hole Diameter: 5.00mm(5.00mm is 0.197 in.)
Stainless Steel AISI 420C Oiled Rc 46-52
- Nominal Hole Diameter: 5.00mm
(5.00mm is 0.197 in.)
- Length: 40.00mm
+/- 0.50
(40.00mm is 1.575 in.)
- Drill Size: 5.00 - 5.12mm
(5.00 - 5.12mm is 0.197 in.)
- Loose Diameter: 5.18 - 5.40mm
- ISO: Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness: HV460-560
Brand: MBA
Country of Origin: GB
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP050040HS420, PSP050040H
