PSP-050-040H-S420 - Datasheet
MBA
Category Information

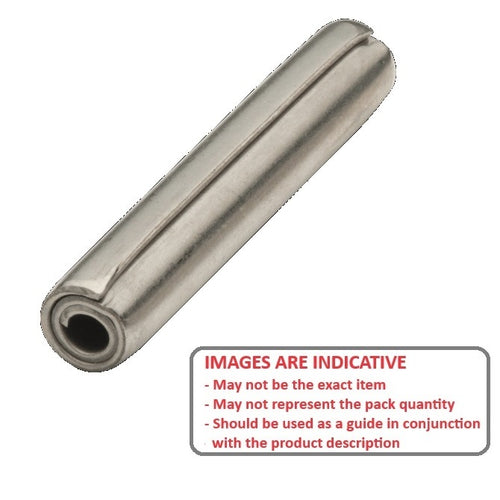

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
5.00
mm
(Equiv. 0.197 in.) - Length
40.00
mm
+/- 0.50
(Equiv. 1.575 in.) - Drill Size
5.00 - 5.12
mm
(Equiv. 0.197 in.) - Loose Diameter 5.18 - 5.40 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness HV460-560
- Material Stainless Steel AISI 420C Oiled Rc 46-52
