FMR105A-ZZ-MC3

Single Row Ball Bearings - 5x10x4 mm Flanged - Chrome Steel SAE 52100 Bearing

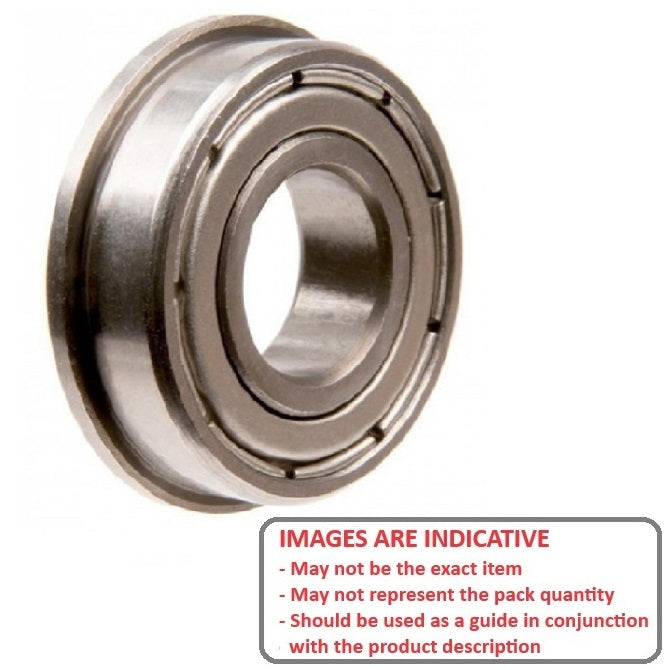

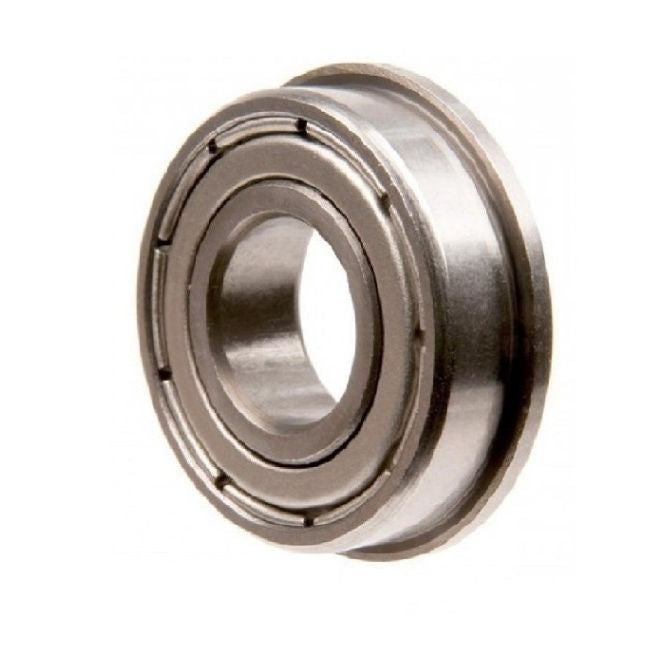

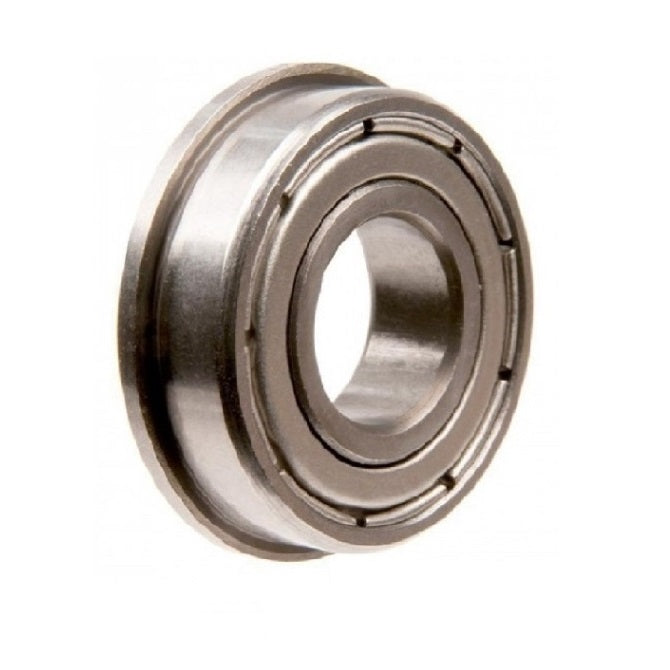

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 5x10x4 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$7.05 AUD
$7.05 AUD
Each
Qty: 199 available now
Order 50 or more for $6.35 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 21, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details

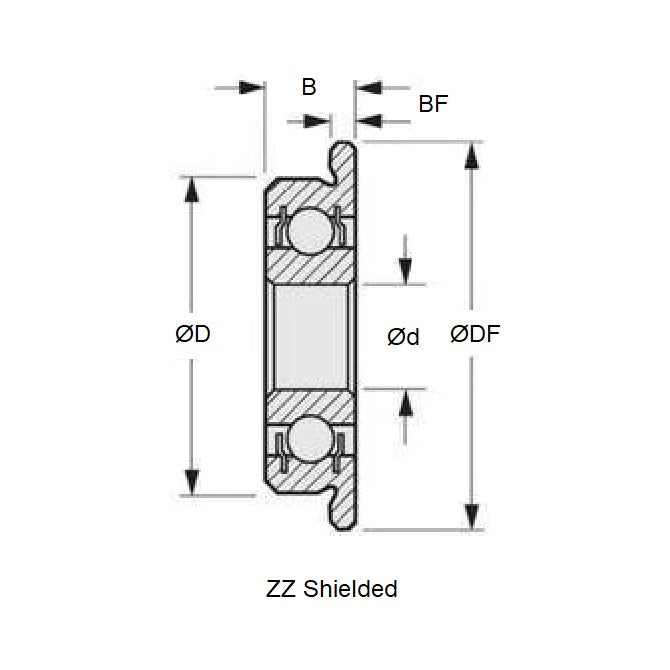

ID (d): 5.000mm
+ 0.000 / - 0.0075
(5.000mm is 0.197 in.)

Chrome Steel SAE 52100
  • OD (D): 10.000mm
    + 0.000 / - 0.0075
    (10.000mm is 0.394 in.)
  • Width (B): 4.000mm
    + 0.000 / - 0.125
    (4.000mm is 0.157 in.)
  • Flange Diameter (DF): 11.600mm
  • Flange Width (BF): 0.800mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • HIROBO 2500-085
  • ALTPART
  • 57155K568
  • Nachi F5M10-ZZ
  • NTN FLAWBC5-10-ZZA
  • NTN FLWBC5-10-ZZ
  • Shielded Width A FMR105/4
  • Shielded FMR105A / 4
  • BSC MLF5010-ZZ
  • MF105-ZZ
  • MF105ZZ
  • MLF5010ZZ
  • FMR105AZZMC3
  • FMR105A-ZZMC3
  • 2500085
  • FLAWBC510ZZA
  • FLWBC510ZZ
  • F5M10ZZ
  • LF1050ZZ
  • LF1050-ZZ
  • FMR105ABASIC

Used for

  • RC Car Parts
  • RC Helicopter Parts
  • Associated - YZ10 - Flanged Bearing 5-10-4mm
  • Custom Works - Dominator - Flanged Bearing 5-10-4mm
  • Custom Works - Intimidator - Flanged Bearing 5-10-4mm
  • Duratrax - Warhead - Flanged Bearing 5-10-4mm
  • GS General Silicone - Vision Pro - Flanged Bearing 5-10-4mm
  • HPI - Proceed - Flanged Bearing 5-10-4mm
  • HPI - Proceed Update - Flanged Bearing 5-10-4mm
  • Kyosho - Evolva 2005 - Flanged Bearing 5-10-4mm
  • Kyosho - Fantom 2001 - Flanged Bearing 5-10-4mm
  • Kyosho - V-One RR - Flanged Bearing 5-10-4mm
  • Kyosho - VW Beetle-Buick Stocker-Mini Cooper-Super Alta - Flanged Bearing 5-10-4mm
  • Mugen - Athlete Upgrade - Flanged Bearing 5-10-4mm
  • Mugen - MRX-3 1/8 Scale - Flanged Bearing 5-10-4mm
  • Mugen - MRX-4 - Flanged Bearing 5-10-4mm
  • Mugen - MRX-4R - Flanged Bearing 5-10-4mm
  • Mugen - MST-1 1/10 Gas Truck With Clutch - Flanged Bearing 5-10-4mm
  • Mugen - MTX-3 Prospect - Flanged Bearing 5-10-4mm
  • Mugen - MTX-4 - Flanged Bearing 5-10-4mm
  • Royal - Superbike - Flanged Bearing 5-10-4mm
  • Royal - Superbike Complete - Flanged Bearing 5-10-4mm
  • Royal - Superbike Trans. - Flanged Bearing 5-10-4mm
  • Schumaker - SST 2000 99 - Flanged Bearing 5-10-4mm
  • Serpent - 710 1-10TH Gas Sedan - Flanged Bearing 5-10-4mm
  • Xray - NT1 - Flanged Bearing 5-10-4mm
  • Yokomo - Hot Dog - Flanged Bearing 5-10-4mm
  • Yokomo - MR-4BX - Flanged Bearing 5-10-4mm
  • Yokomo - Works 93 - Flanged Bearing 5-10-4mm
  • Yokomo - YR-4 - Flanged Bearing 5-10-4mm
  • Yokomo - YR-4 II - Flanged Bearing 5-10-4mm
  • Yokomo - YR-4M - Flanged Bearing 5-10-4mm
  • Yokomo - YZ10 - Flanged Bearing 5-10-4mm
  • Yokomo - YZ10W - Flanged Bearing 5-10-4mm
  • Hirobo - Tsurgi - 2500-085 Flanged Bearing
  • Hirobo - Tsurgi Upgrade Kit - Flanged Bearing 5-10-4mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
