FMR105A-ZZ-MC3 (Each)

Single Row Ball Bearings - 5x10x4 mm Flanged - Chrome Steel SAE 52100 Bearing

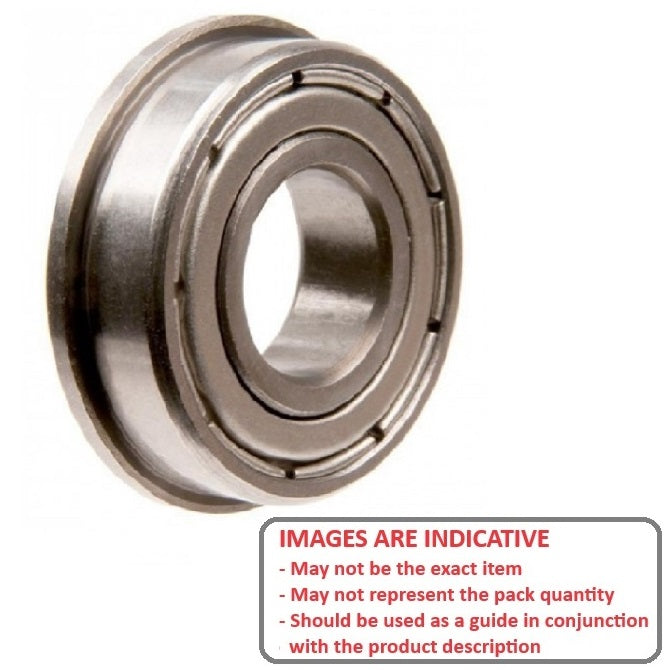

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 5x10x4 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$7.05 AUD
$7.05 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 354 available now

Order 50 or more
for $6.35 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 13, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details

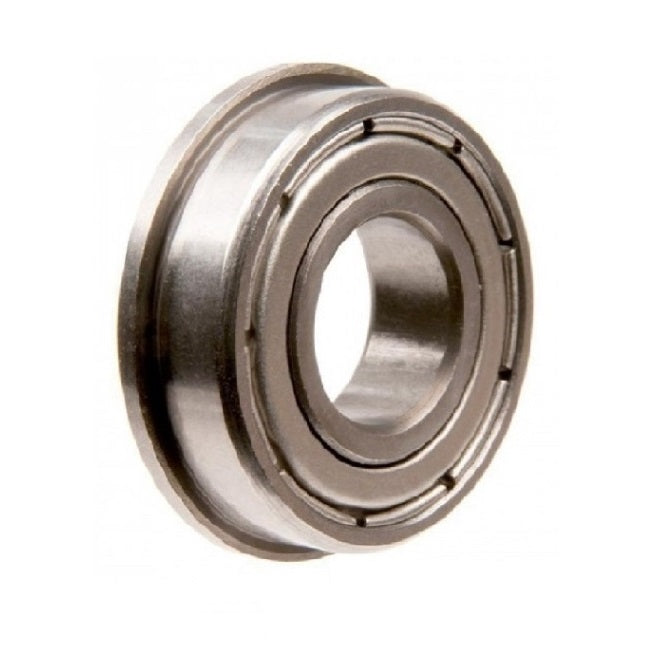

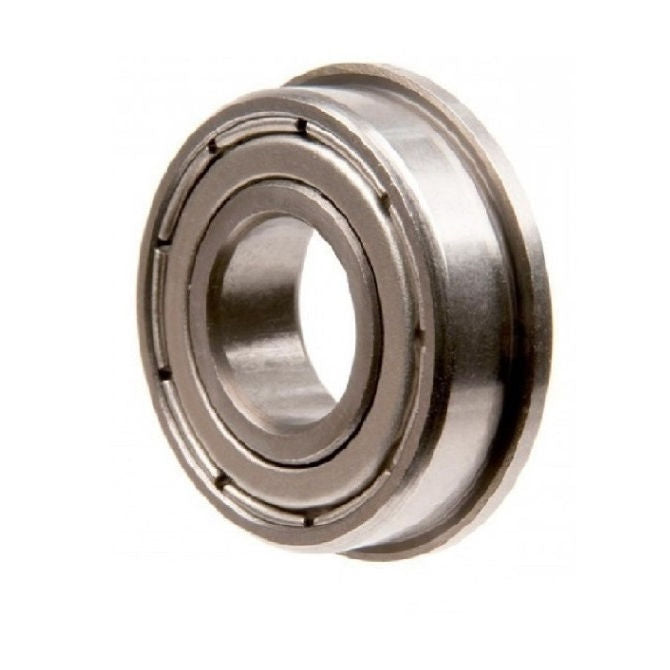

Double shielded flanged bearing

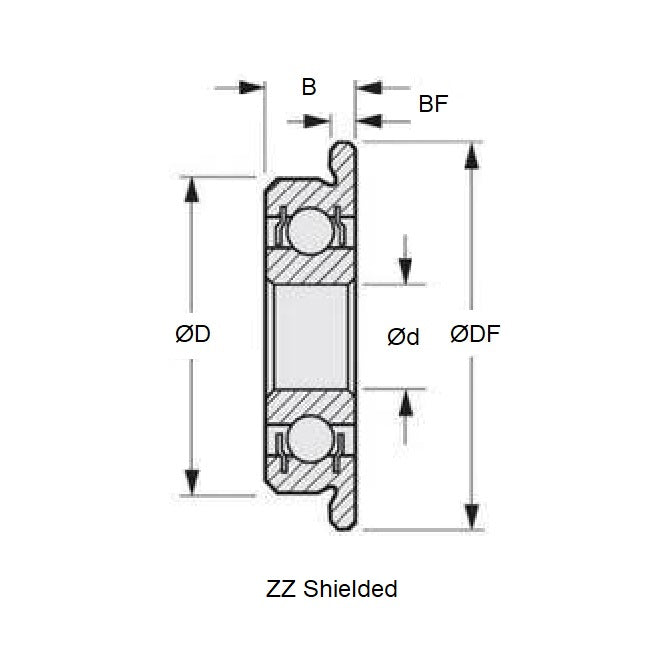

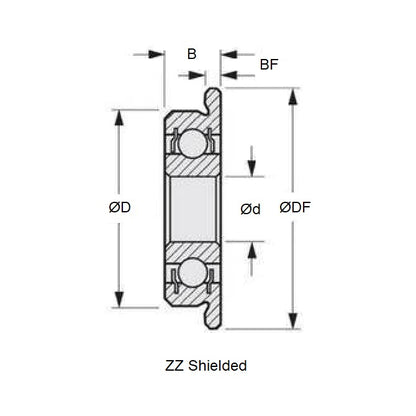

ID (d): 5.000mm
+ 0.000 / - 0.0075
(5.000mm is 0.197 in.)

Chrome Steel SAE 52100
  • ID (d): 5.000mm
    + 0.000 / - 0.0075
    (5.000mm is 0.197 in.)
  • O.D. (D): 10.000mm
    + 0.000 / - 0.0075
    (10.000mm is 0.394 in.)
  • Width (B): 4.000mm
    + 0.000 / - 0.125
    (4.000mm is 0.157 in.)
  • Flange Diameter (DF): 11.600mm
  • Flange Width (BF): 0.800mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • HIROBO 2500-085
  • ALTPART
  • 57155K568
  • Nachi® F5M10-ZZ
  • NTN® FLAWBC5-10-ZZA
  • NTN® FLWBC5-10-ZZ
  • Shielded Width A FMR105/4
  • Shielded FMR105A / 4
  • BSC MLF5010-ZZ
  • FLAWBC510ZZA
  • FLWBC510ZZ
  • FMR105AZZMC3
  • FMR105A-ZZMC3
  • 2500085
  • F5M10ZZ
  • MF105-ZZ
  • MF105ZZ
  • MLF5010ZZ
  • LF1050-ZZ
  • LF1050ZZ
  • FMR105ABASIC

Used for

  • RC Car Parts
  • RC Helicopter Parts
  • Custom Works® - Dominator - Replacement Bearing
  • Custom Works® - Intimidator - Replacement Bearing
  • Duratrax® - Warhead - Replacement Bearing
  • GS General Silicone - Vision Pro - Replacement Bearing
  • HPI - Proceed - Replacement Bearing
  • HPI - Proceed Update - Replacement Bearing
  • Kyosho® - Evolva 2005 - Replacement Bearing
  • Kyosho® - Fantom 2001 - Replacement Bearing
  • Kyosho® - V-One RR - Replacement Bearing
  • Kyosho® - VW Beetle-Buick Stocker-Mini Cooper-Super Alta - Replacement Bearing
  • Mugen® - Athlete Upgrade - Replacement Bearing
  • Mugen® - MRX-3 1/8 Scale - Replacement Bearing
  • Mugen® - MRX-4 - Replacement Bearing
  • Mugen® - MRX-4R - Replacement Bearing
  • Mugen® - MST-1 1/10 Gas Truck With Clutch - Replacement Bearing
  • Mugen® - MTX-3 Prospect - Replacement Bearing
  • Mugen® - MTX-4 - Replacement Bearing
  • Royal® - Superbike - Replacement Bearing
  • Royal® - Superbike Complete - Replacement Bearing
  • Royal® - Superbike Trans. - Replacement Bearing
  • Schumaker® - SST 2000 99 - Replacement Bearing
  • Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
  • Team Associated® - YZ10 - Replacement Bearing
  • Xray® - NT1 - Replacement Bearing
  • Yokomo® - Hot Dog - Replacement Bearing
  • Yokomo® - MR-4BX - Replacement Bearing
  • Yokomo® - Works 93 - Replacement Bearing
  • Yokomo® - YR-4 - Replacement Bearing
  • Yokomo® - YR-4 II - Replacement Bearing
  • Yokomo® - YR-4M - Replacement Bearing
  • Yokomo® - YZ10 - Replacement Bearing
  • Yokomo® - YZ10W - Replacement Bearing
  • Hirobo® - Tsurgi - 2500-085 Replacement Bearing
  • Hirobo® - Tsurgi Upgrade Kit - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
