CCE-05500-S15 (Each)

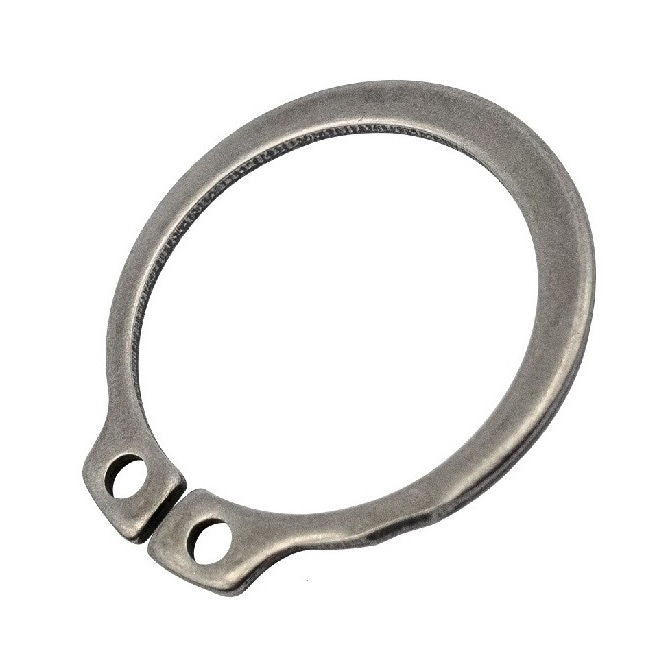

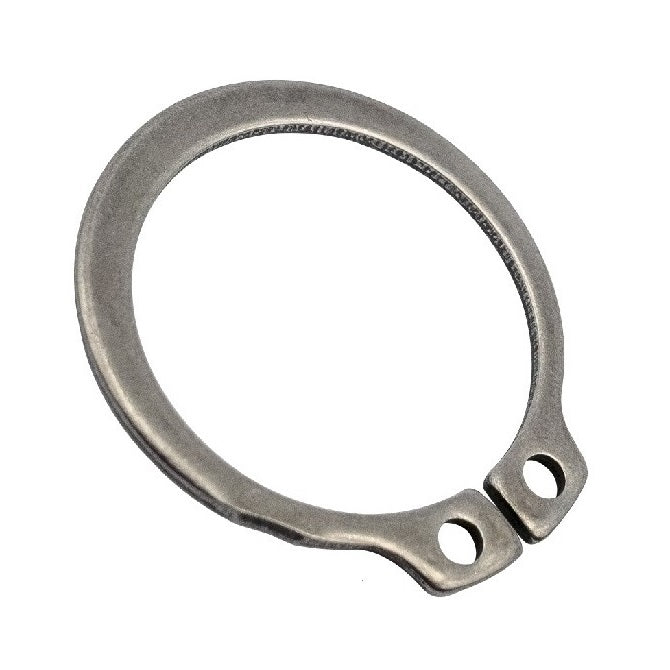

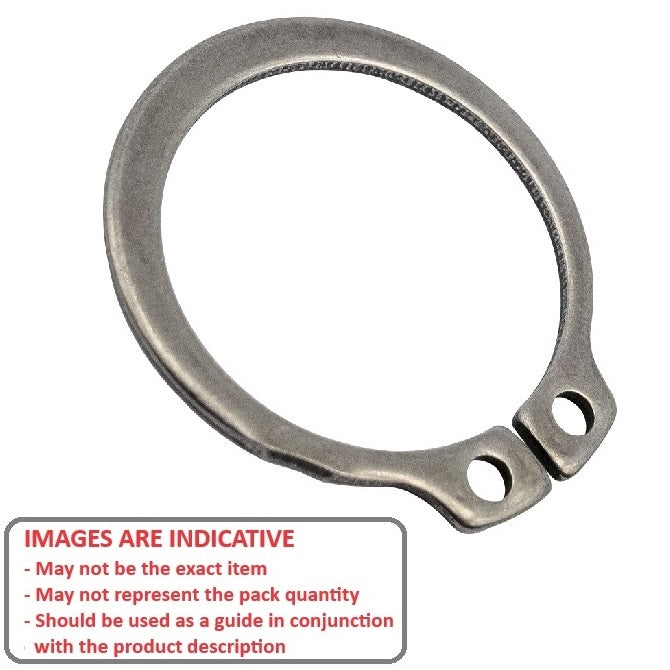

External Retaining Rings - 55x2x51.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more
for $15.59 AUD Each
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Product Details
Additional stock available from USA subject to Prior Sale = 103
Shaft Diameter (Ds): 55.00mm
(55.00mm is 2.165 in.)
Stainless Steel Grade PH15-7 Mo
- Shaft Diameter (Ds): 55.00mm
(55.00mm is 2.165 in.)
- Clip Thickness (T): 2.00mm
+ 0.00 / - 0.06
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 51.75mm
+ 0.00 / - 0.25
(51.75mm is 2.037 in.)
- Approx. Loose Circlip ID (A): 50.80mm
- Groove Width (W): 2.15mm
- Clearance on Shaft (C1): 66.40mm
- Clearance in Groove (C1): 70.20mm
- Min. Lug Diameter (h): 2.50mm
- Min. Extension (n): 4.50
- Standard: DIN471
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 471-055-SS
- ALTPART
- 90967A360
- Seeger® A-055-SS
- Seeger® A55K500-S
- Seeger® A55X2-411
- Seeger® A55X2SS
- Bossard® BN818-055-SS
- Waldes® D1400-055-SS
- Huyett® DSH-055-SS
- NoCor® DSH-055-SS
- Rotor Clip® DSH-055-SS
- A55K500S
- A55X2411
- BN818055SS
- A055SS
- D1400055SS
- 471055SS
- DSH055SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE05500S15, CCE05500
