TS-050R-500-050-090-S4 (PK-5)

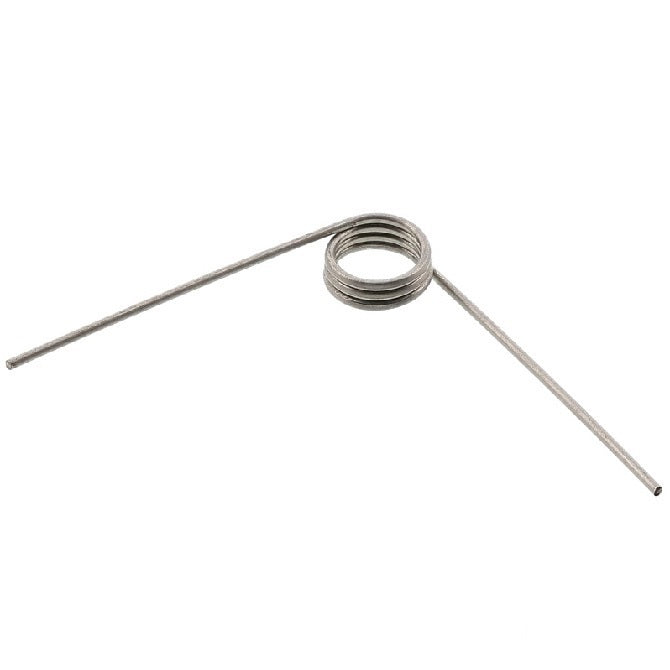

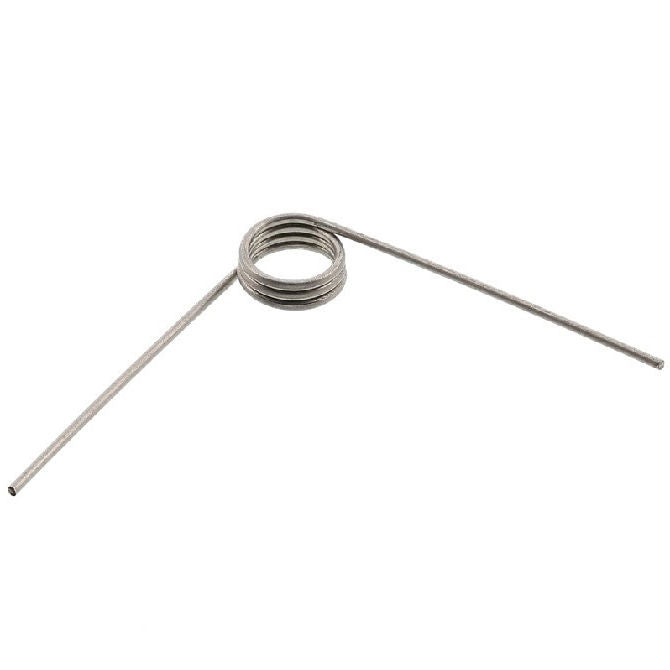

Torsion Springs - 5x50x0.5 mm Right Hand Wound - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring

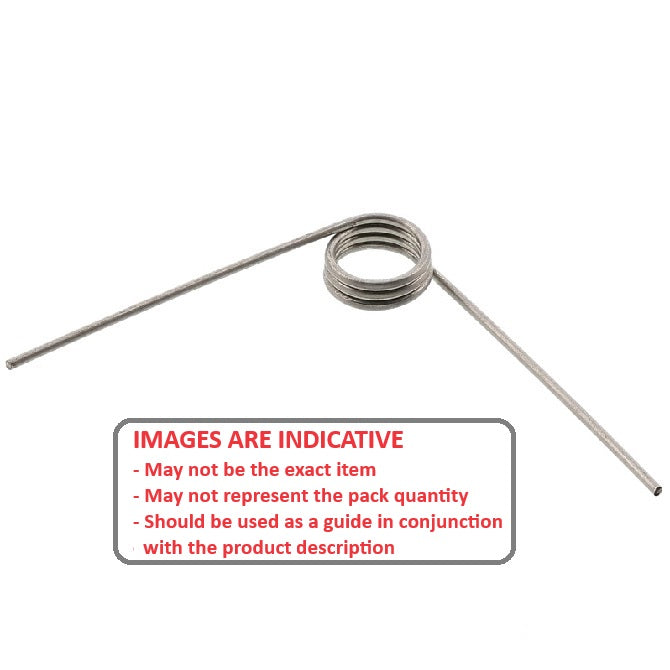

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Torsion Springs - 5x50x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Spings Catalogue PDF
Price:
$6.32 AUD
$7.58 AUD $6.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more pack (250 pcs)
for $5.69 AUD per 5
Backorder now! Backorders are expected before May 23, 2026

Base Category: Springs - Torsion

Top Level Category: Springs - Torsion - Right Hand Wound

Product Details

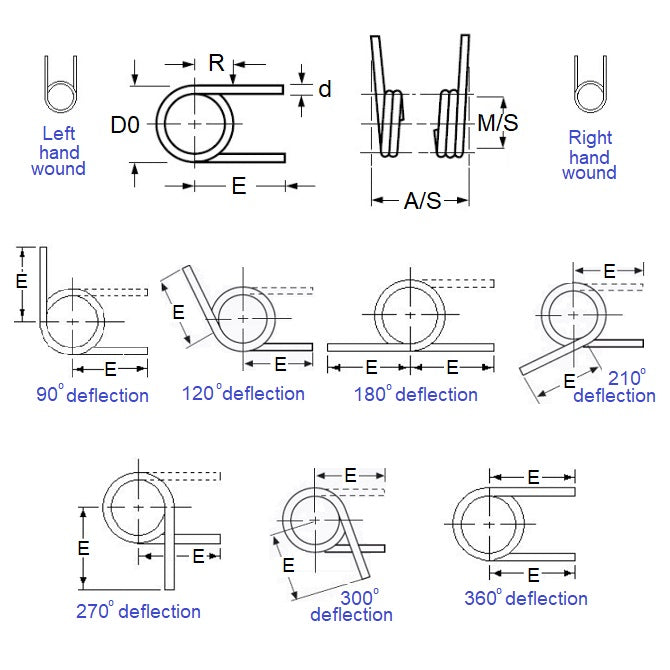

Mandrel Size (MS): 5mm
(5mm is 0.197 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Mandrel Size (MS): 5mm
    (5mm is 0.197 in.)
  • Length of Leg (E): 50mm
    (50mm is 1.969 in.)
  • Wire Diameter: 0.500mm
    (0.500mm is 0.02 in.)
  • Torque When Parallel: 89.6N.mm
  • Free Deflection: 90Deg.
  • Coils: 3

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Misumi® C-UA90R5-3-0.5
  • CUA90R5305

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
