SF684B-ZZ-MC3 (Each)

5/32 inch Bearing - 4x9x3.5 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

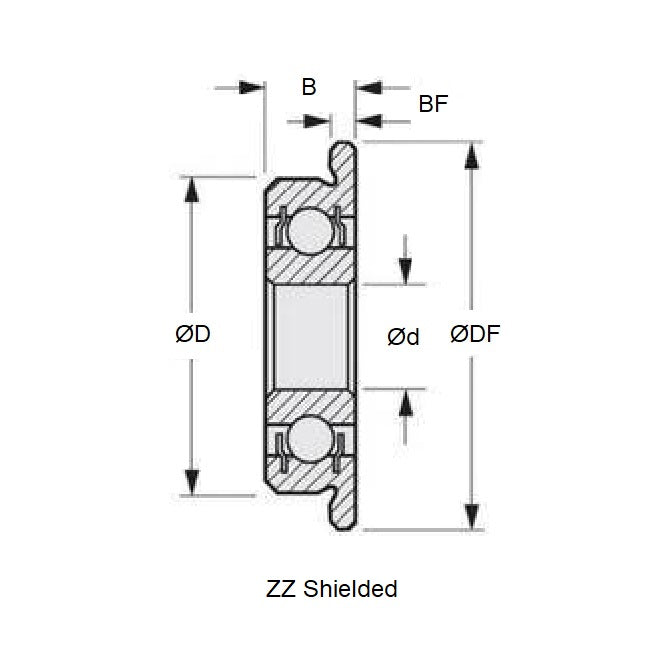

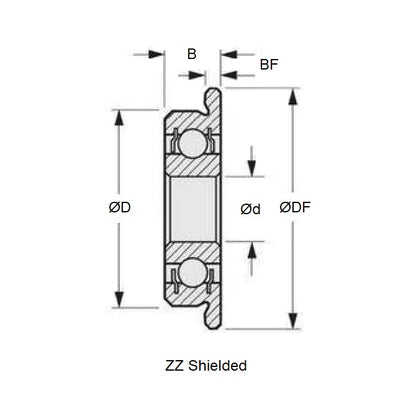

Product Details

ID (d): 4.000mm
_{+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)}

Stainless Steel AISI 440C

• ID (d): 4.000mm
  _{+ 0.000 / - 0.0075
  (4.000mm is 0.157 in.)}

• O.D. (D): 9.000mm
  _{+ 0.000 / - 0.0075
  (9.000mm is 0.354 in.)}

• Width (B): 3.500mm
  _{+ 0.000 / - 0.125
  (3.500mm is 0.138 in.)}

• Flange Diameter (DF): 10.300mm
• Flange Width (BF): 0.600mm
• Precision Grade: Abec 1
• Closure Type: ZZ
• Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Similar Part F684W3.5
• Similar Part F684W3.5H
• ISO F684W3.5HZZ
• ISO F684-W3.5H-ZZ
• CSR F684-ZZW3,5
• Similar Part FAX4
• ADR FAX4-ZZ
• Shielded Width B SF684/3.5
• Shielded SF684B / 4
• Shielded Width B SSF684/3.5
• Shielded SSF684B / 4
• ADR WFAX4-ZZ
• SF684BZZMC3
• SF684B-ZZMC3
• F684-W3.5-ZZ
• FAX4ZZ
• F684ZZW3,5
• F684W35HZZ
• F684W35ZZ
• SSF684BZZMC3
• SSF684B-ZZMC3
• WFAX4ZZ
• F684BBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SF684BZZMC3, F684B
