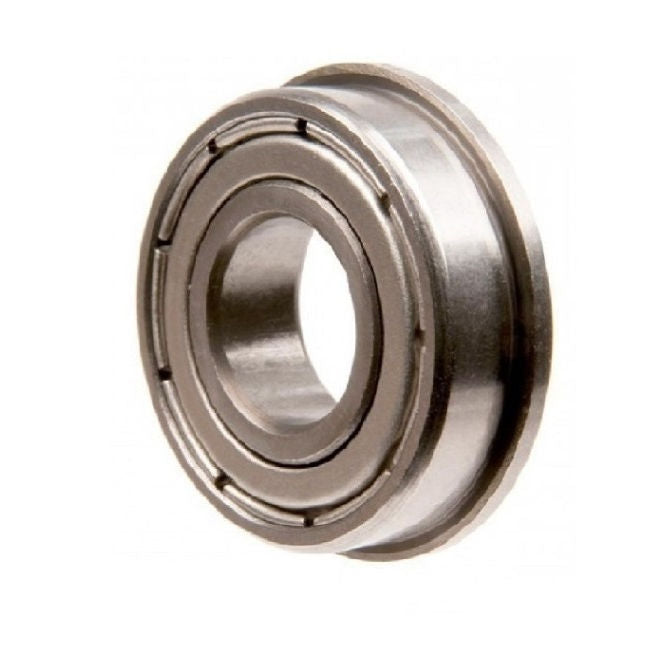

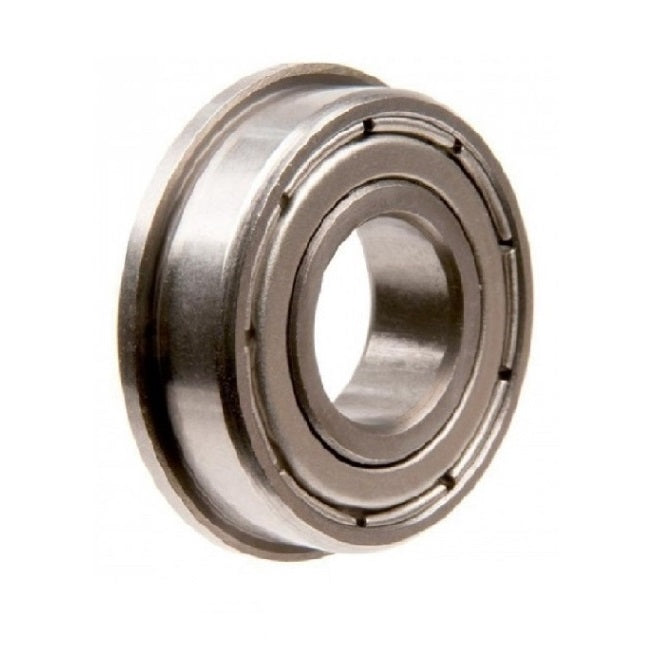

FMR84A-ZZ-MC3 (50 Pcs)

Single Row Ball Bearings - 4x8x3 mm Flanged - Chrome Steel SAE 52100 Bearing

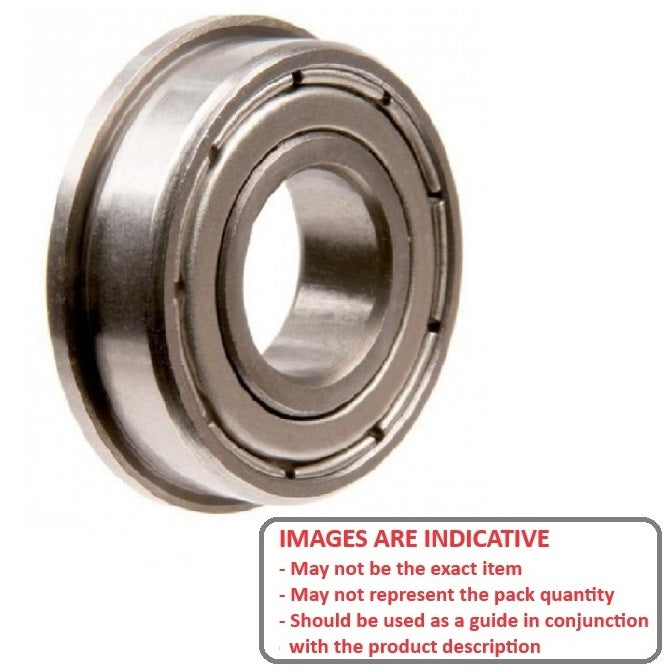

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 4x8x3 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$568.95 AUD
$568.95 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $512.06 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Oct 01, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details

ID (d): 4.000mm
+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)

Chrome Steel SAE 52100
  • ID (d): 4.000mm
    + 0.000 / - 0.0075
    (4.000mm is 0.157 in.)
  • OD (D): 8.000mm
    + 0.000 / - 0.0075
    (8.000mm is 0.315 in.)
  • Width (B): 3.000mm
    + 0.000 / - 0.125
    (3.000mm is 0.118 in.)
  • Flange Diameter (DF): 9.200mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • KALT 10020566
  • ALTPART
  • 57155K553
  • SCHUMACHER A524
  • Schumaker A524
  • Nachi F4M08-ZZ
  • Shielded Width A FMR84/3
  • Shielded FMR84A / 3
  • TSK H1112
  • WTW MF84-ZZ
  • BSC MLF4008-ZZ
  • MF84ZZ
  • MLF4008ZZ
  • FMR84A-ZZMC3
  • FMR84AZZMC3
  • F4M08ZZ
  • LF840ZZ
  • LF840-ZZ
  • FMR84ABASIC

Used for

  • RC Boat Parts
  • RC Car Parts
  • RC Helicopter Parts
  • Traxxas - Villain - Flanged Bearing 4-8-3mm
  • Traxxas - Villain 4 - Flanged Bearing 4-8-3mm
  • Academy and MRC - STR-4 1/10 Scale - Flanged Bearing 4-8-3mm
  • Associated - YZ10 - Flanged Bearing 4-8-3mm
  • Cox - Bandito - Flanged Bearing 4-8-3mm
  • Cox - Bandito - Ultra Stock - Flanged Bearing 4-8-3mm
  • Cox - Scorpion - Flanged Bearing 4-8-3mm
  • Cox - Ultra Stock - Flanged Bearing 4-8-3mm
  • Kyosho - Assault - Flanged Bearing 4-8-3mm
  • Kyosho - Beetle - Flanged Bearing 4-8-3mm
  • Kyosho - Optionima - Flanged Bearing 4-8-3mm
  • Kyosho - Optionima Complete Kit - Flanged Bearing 4-8-3mm
  • Kyosho - Optionima Upgrade - Flanged Bearing 4-8-3mm
  • Kyosho - Outlaw Truck - Flanged Bearing 4-8-3mm
  • Kyosho - Outlaw Truck Ultima Pro XL - Flanged Bearing 4-8-3mm
  • Kyosho - Raider - Flanged Bearing 4-8-3mm
  • Kyosho - Raider - Turbo Raider - Flanged Bearing 4-8-3mm
  • Kyosho - Sideways - Flanged Bearing 4-8-3mm
  • Kyosho - Turbo Raider - Flanged Bearing 4-8-3mm
  • Kyosho - Ultima - Flanged Bearing 4-8-3mm
  • Kyosho - Ultima II - Flanged Bearing 4-8-3mm
  • Kyosho - Ultima Pro XL - Flanged Bearing 4-8-3mm
  • Ofna - 9.5 Pro - Flanged Bearing 4-8-3mm
  • Ofna - Jammin 1 CR With Steering - Flanged Bearing 4-8-3mm
  • Schumaker - Cat 1998 - 2000 - Flanged Bearing 4-8-3mm
  • Schumaker - Cat 2000 - Flanged Bearing 4-8-3mm
  • Schumaker - Cat 2000 - Transmission Flanged Bearing
  • Schumaker - Cat 2000 SE - Flanged Bearing 4-8-3mm
  • Schumaker - Cat 3000 - Flanged Bearing 4-8-3mm
  • Schumaker - Cat 3000 With Steering - Flanged Bearing 4-8-3mm
  • Schumaker - Cougar 2000 - Flanged Bearing 4-8-3mm
  • Schumaker - Fusion R12 - Flanged Bearing 4-8-3mm
  • Schumaker - MI2 - Flanged Bearing 4-8-3mm
  • Schumaker - MI2 EC - Flanged Bearing 4-8-3mm
  • Schumaker - MI2 Pro Racing Sedan - Flanged Bearing 4-8-3mm
  • Schumaker - Mission - Flanged Bearing 4-8-3mm
  • Schumaker - Mission With Steering - Flanged Bearing 4-8-3mm
  • Schumaker - SST 2000 98 - Flanged Bearing 4-8-3mm
  • Schumaker - SST Axis 2 - Flanged Bearing 4-8-3mm
  • Schumaker - Storm Truck 2000 - Flanged Bearing 4-8-3mm
  • Yokomo - Hot Dog - Flanged Bearing 4-8-3mm
  • Yokomo - MR-4BX - Flanged Bearing 4-8-3mm
  • Yokomo - Works 93 - Flanged Bearing 4-8-3mm
  • Yokomo - YR-4 - Flanged Bearing 4-8-3mm
  • Yokomo - YR-4 II - Flanged Bearing 4-8-3mm
  • Yokomo - YR-4M - Flanged Bearing 4-8-3mm
  • Yokomo - YZ10 - Flanged Bearing 4-8-3mm
  • Yokomo - YZ10W - Flanged Bearing 4-8-3mm
  • Century - Ninja Pro 30/46 All - Flanged Bearing 4-8-3mm
  • Century - Ninja Pro 30/46Upgrade Kit - Flanged Bearing 4-8-3mm
  • Century - Ninja Pro 30-46 - Flanged Bearing 4-8-3mm
  • Hirobo - Lepton EX - Flanged Bearing 4-8-3mm
  • Hirobo - Sceadu 50 Evolution - Flanged Bearing 4-8-3mm
  • Hirobo - SST Eagle Freya - Flanged Bearing 4-8-3mm
  • Kalt - Cyclone - 10020566 Flanged Bearing
  • Kalt - Cyclone - Flanged Bearing 4-8-3mm
  • Kalt - Cyclone II - 10020566 Flanged Bearing
  • Kalt - Cyclone II - Flanged Bearing 4-8-3mm
  • Synergy - N9 - Flanged Bearing 4-8-3mm
  • TSK - Miscellaneous Parts To suit - H1112 Flanged Bearing

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
