FMR74-MC3-AF12 (PK-50)

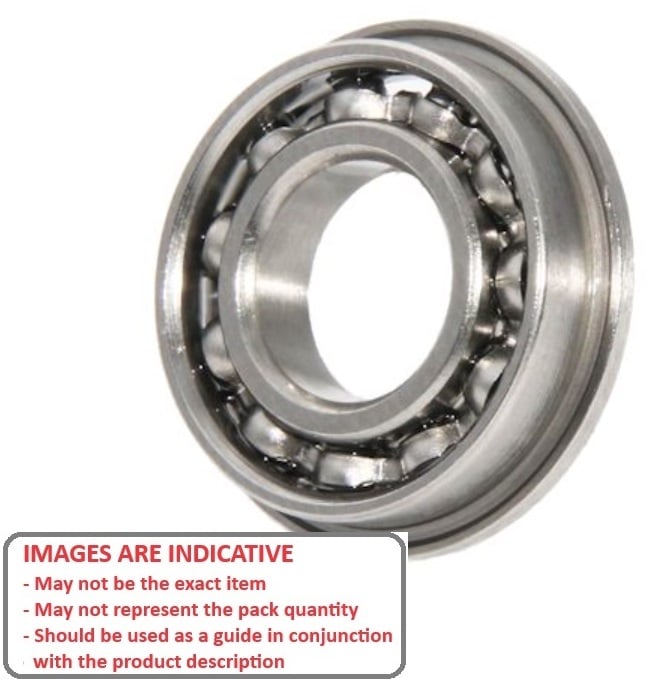

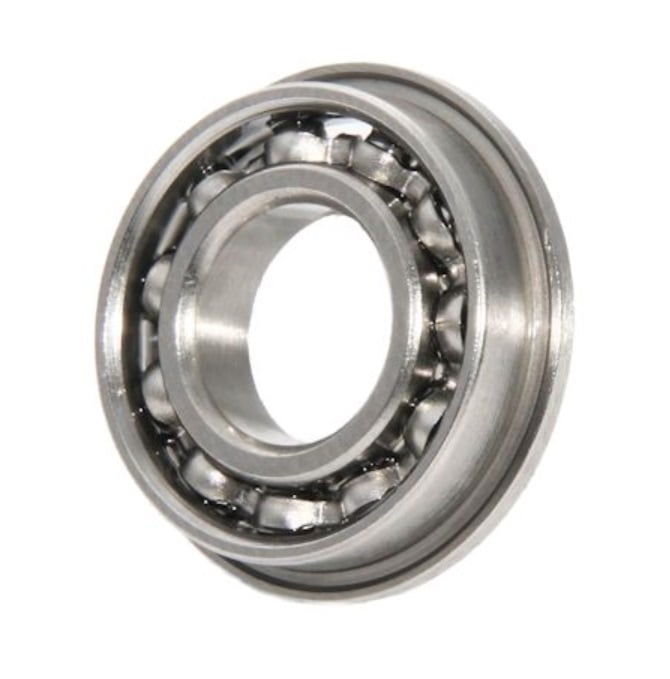

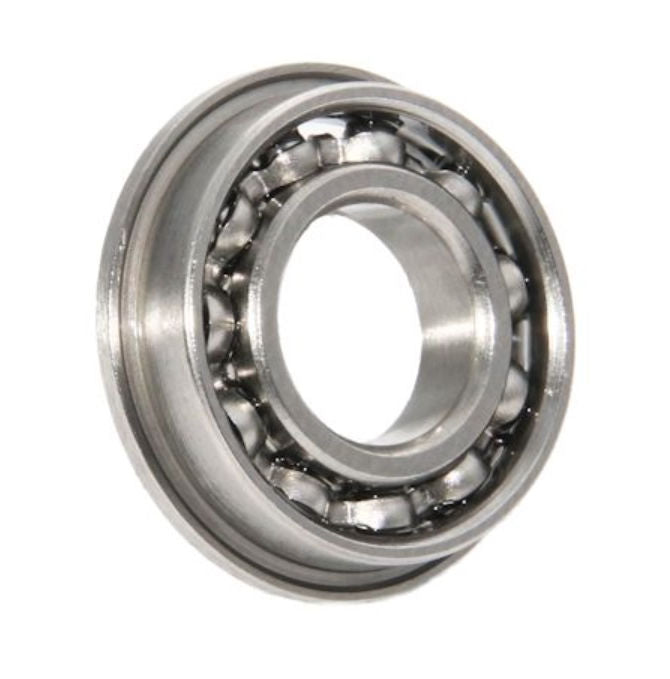

Single Row Ball Bearings - 4x7x2 mm Flanged - Chrome Steel SAE 52100 Bearing
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
5/32 inch Bearing - 4x7x2 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per pack of 50:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Product Details
Open flanged bearing with low-torque light oil lubricant
ID (d): 4.000mm
+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)
Chrome Steel SAE 52100

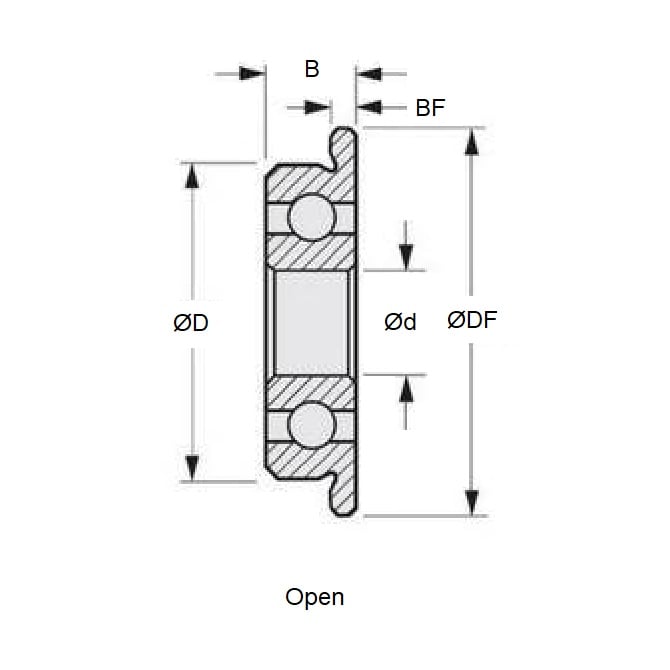

- ID (d): 4.000mm
+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)
- O.D. (D): 7.000mm
+ 0.000 / - 0.0075
(7.000mm is 0.276 in.)
- Width (B): 2.000mm
+ 0.000 / - 0.125
(2.000mm is 0.079 in.)
- Flange Diameter (DF): 8.200mm
- Flange Width (BF): 0.600mm
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial Flanged
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- GMP 486B
- ALTPART
- 57155K437
- Nachi® F4M07
- ADR F617-4
- NTN® FL674
- NTN® FL674A
- ISO MF74
- BSC MLF4007
- FMR74
- F6174
- LF740
- FMR74BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
FMR74MC3AF12, FMR74
