MR599-150-ZZ-VP (Each)

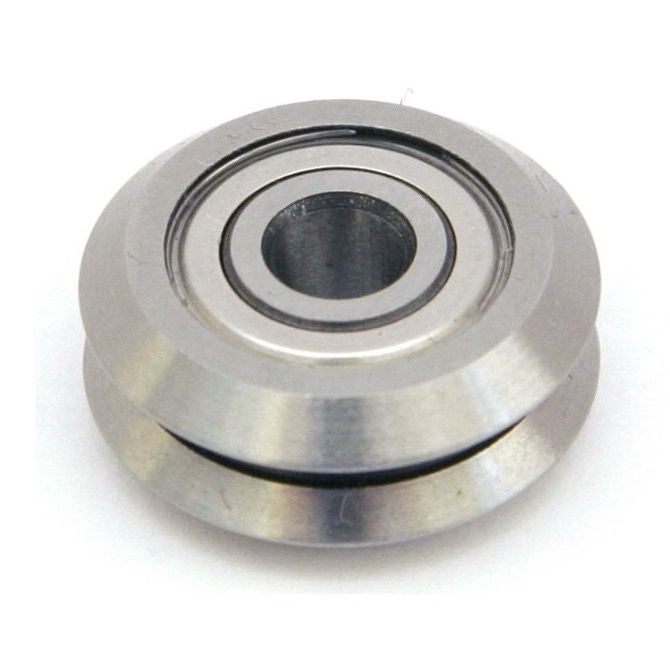

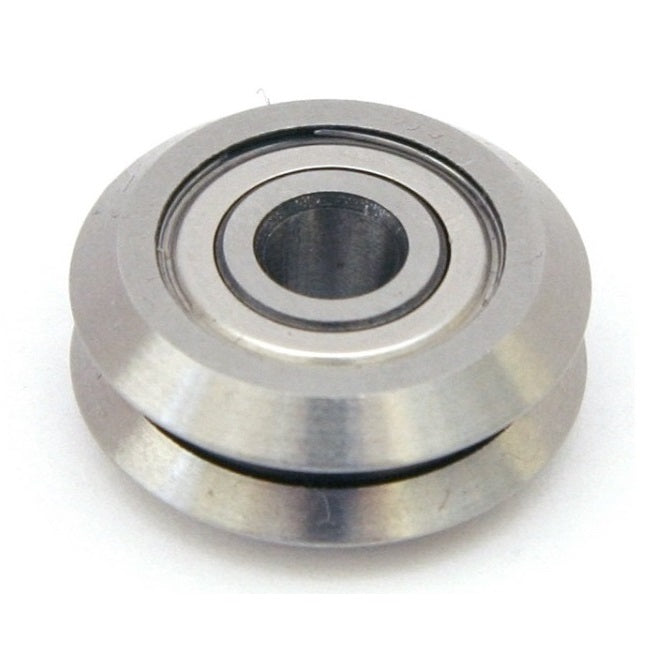

Plain Guide Wheels Dual Vee - Size Reference 4 - 59.944x19.05 mm - Chrome Steel SAE 52100 Guide Wheel

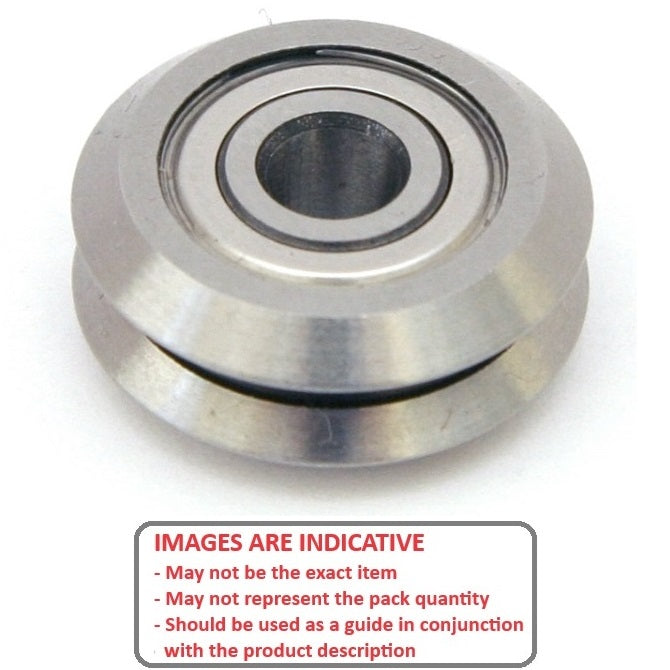

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 4 - 59.944x19.05 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$218.32 AUD
$261.98 AUD $218.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $196.49 AUD Each
Backorder now! Backorders are expected before Jun 02, 2026

Base Category: Dual Vee - Plain Guide Wheels

Top Level Category: Dual Vee - Plain Guide Wheels

Product Details

Size Reference: 4

Chrome Steel SAE 52100

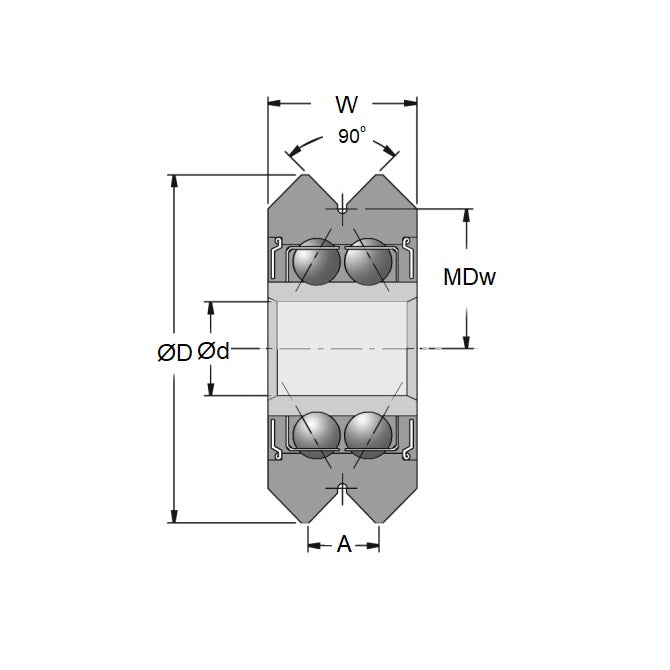

  • Size Reference: 4
  • Outside Diameter (O.D): 59.944mm
    (59.944mm is 2.36 in.)
  • Journal Width (W): 19.050mm
    (19.050mm is 0.75 in.)
  • Groove Top Width (A): 9.652mm
  • Bore (d): 15.000mm
  • Bottom of Groove to Ctre (MDw): 25.40mm
  • Radial Working Load Capacity: 516KgF
  • Axial Working Load Capacity: 439KgF
  • Bearing Type: Shielded Bearing

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Dual Vee W4
  • Reid Tool® WZ-14
  • WZ14
  • MR5994415ZZVP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
