CCE-00400-C (100 Pcs)

Name: CCE-00400-C (100 Pack) - External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip
Brand: MBA
SKU: CCE00400C
Price: 5.95 AUD
Availability: InStock

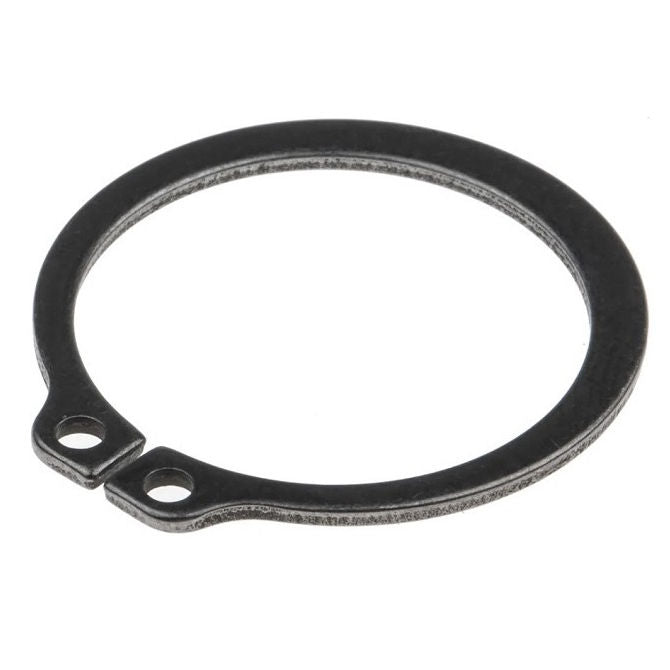

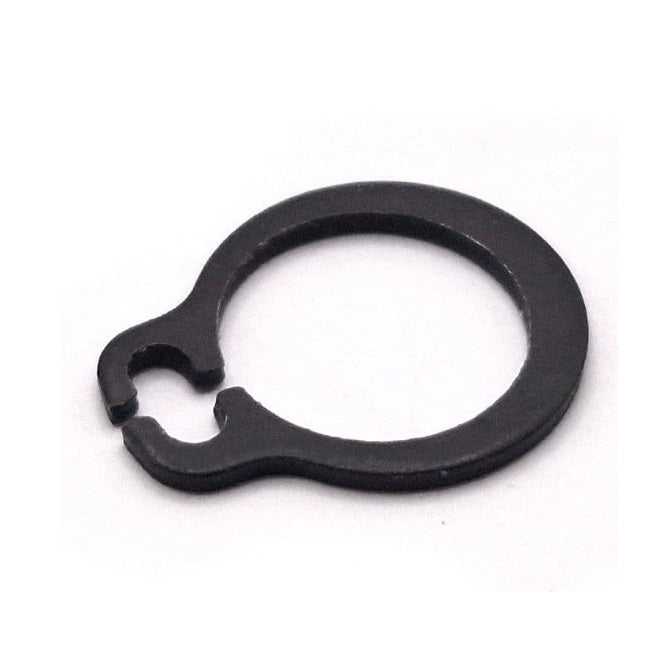

External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip

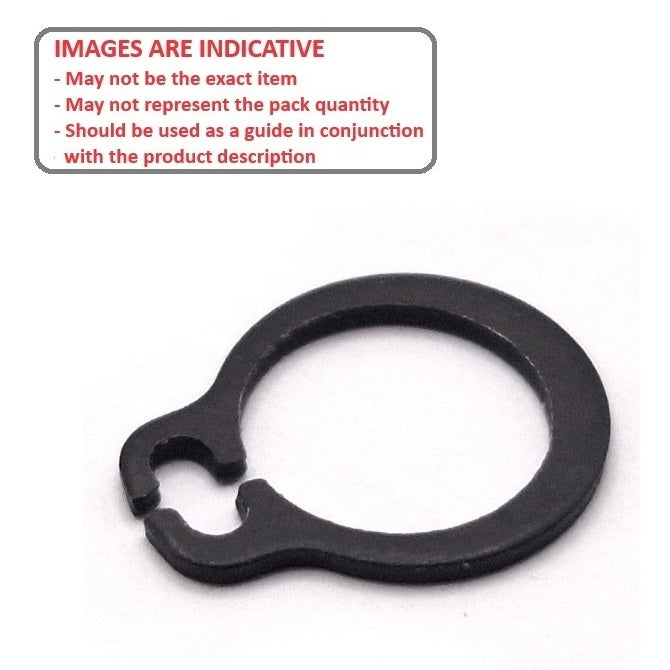

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$5.95 AUD

Excludes GST and overseas Taxes & Duties

per 100
Qty: 42 packs (4200 pcs) available now
Order 50 or more packs (5000 pcs) for $5.36 AUD per 100

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

Product Details

Shaft Diameter (Ds): 4.00mm
_{(4.00mm is 0.157 in.)}

Carbon Steel

Shaft Diameter (Ds): 4.00mm
_{(4.00mm is 0.157 in.)}
Clip Thickness (T): 0.40mm
_{+ 0.00 / - 0.04}
_{(0.40mm is 0.016 in.)}
Groove Dia. (Dg): 3.80mm
_{+ 0.00 / - 0.05}
_{(3.80mm is 0.15 in.)}
Approx. Loose Circlip ID (A): 3.70mm
Groove Width (W): 0.50mm
Clearance on Shaft (C1): 8.60mm
Clearance in Groove (C1): 8.20mm
Min. Lug Diameter (h): 1.00mm
Min. Extension (n): 0.30
Standard: DIN471

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 471-004
ALTPART
98541A112
Seeger A-004
Seeger A4-BLS
Seeger A4X0.4
Bossard BN818-004
Waldes D1400-004
NoCor DSH-004
Rotor Clip DSH-004
Small Parts MER-04
A4BLS
A004
D14000040
D1400-0040
BN818004
DSH004
MER04
MD0471MQB004
471004
CCE00400C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
