SF624-MC3-AF12 (Each)

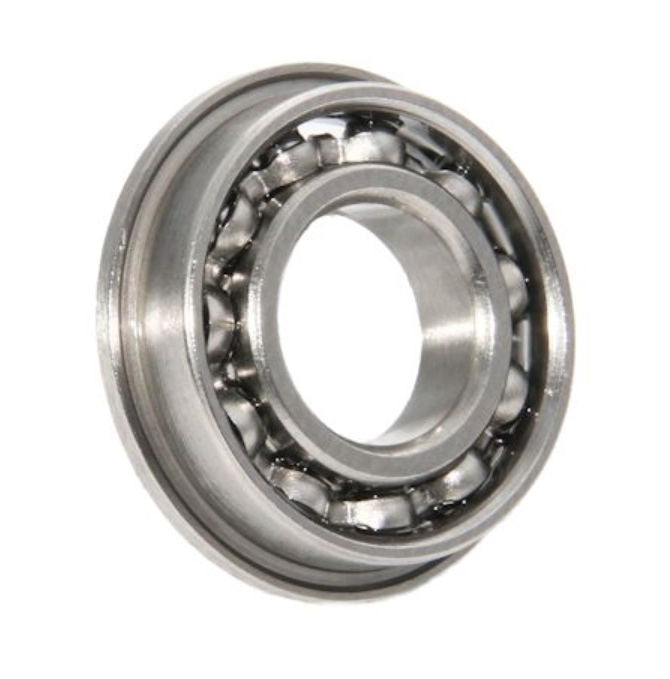

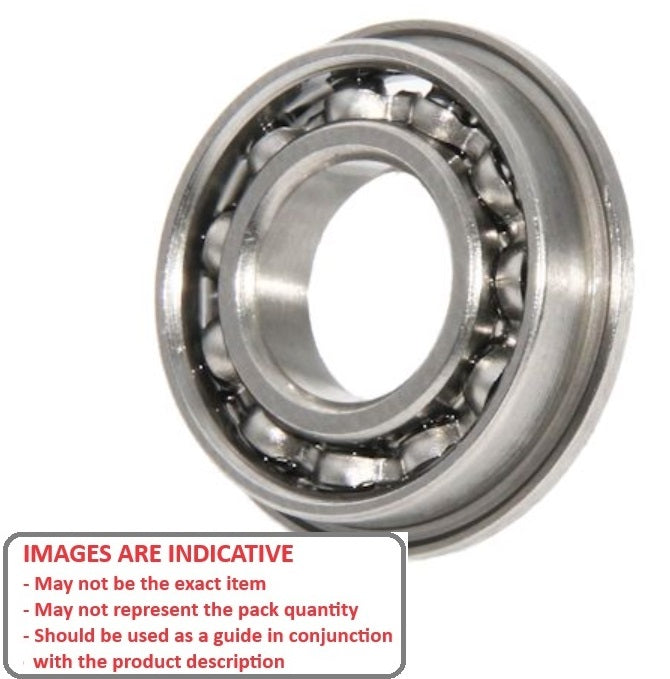

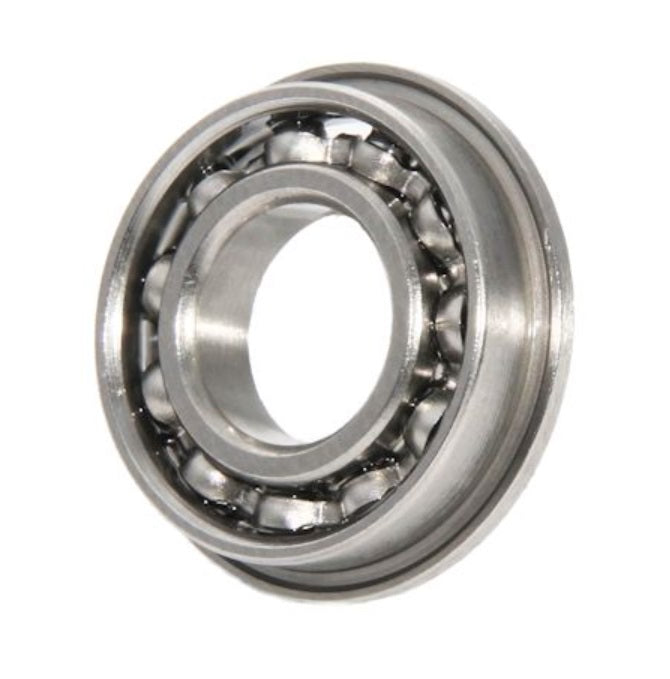

Single Row Ball Bearings - 4x13x5 mm Flanged - Stainless Steel AISI 440C Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $38.09 AUD Each
5/32x1/2 inch Bearing - 4x13x5 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Product Details

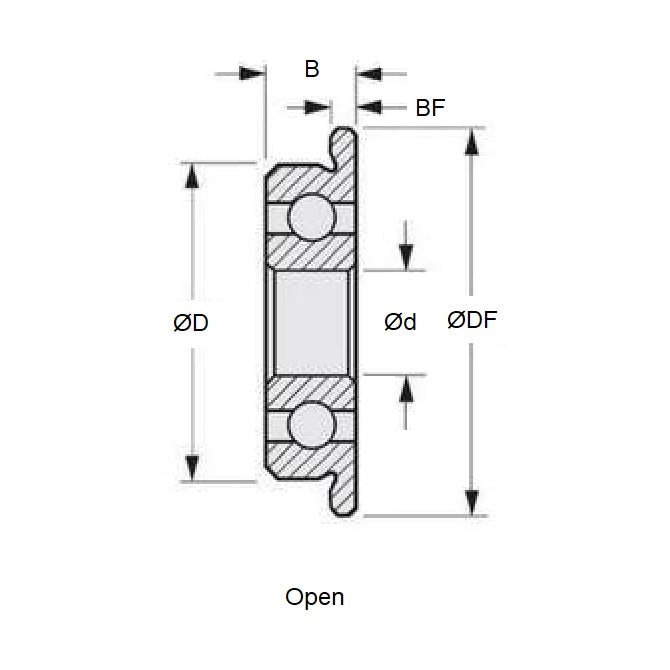

ID (d): 4.000mm+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)
Stainless Steel AISI 440C
- ID (d): 4.000mm
+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)
- O.D. (D): 13.000mm
+ 0.000 / - 0.0075
(13.000mm is 0.512 in.)
- Width (B): 5.000mm
+ 0.000 / - 0.125
(5.000mm is 0.197 in.)
- Flange Diameter (DF): 15.000mm
- Flange Width (BF): 1.000mm
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial Flanged
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 57155K452
- ISO F624H
- NTN® FLW624
- Similar Part FLW624
- GRW SF624
- GRW SSF624
- ADR WF624
- Similar Part WF624
- SS-RF1340
- SSRF1340
- DD-RF1340
- DDRF1340
- F624BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SF624MC3AF12, F624
