W0040-T-008-008-WC-Z (PK-100)

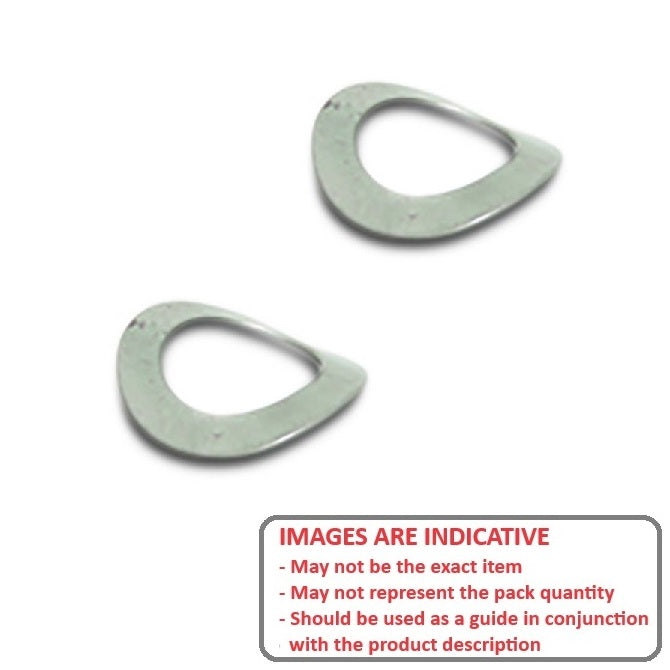

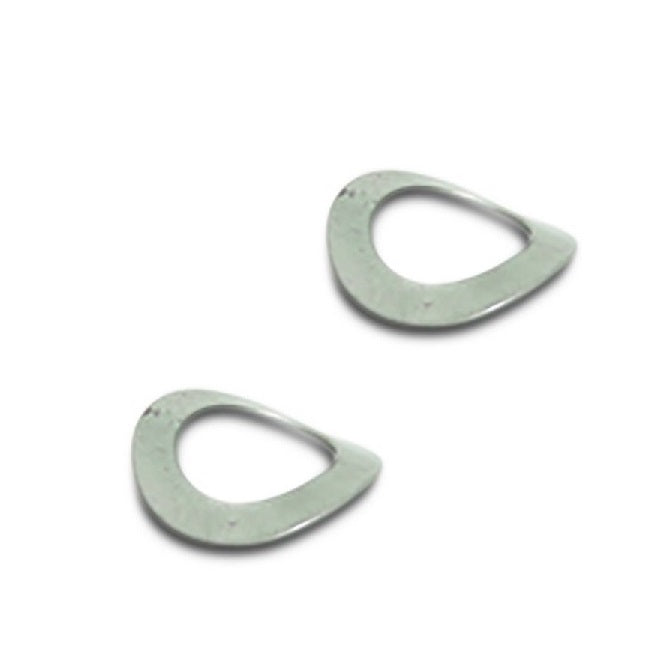

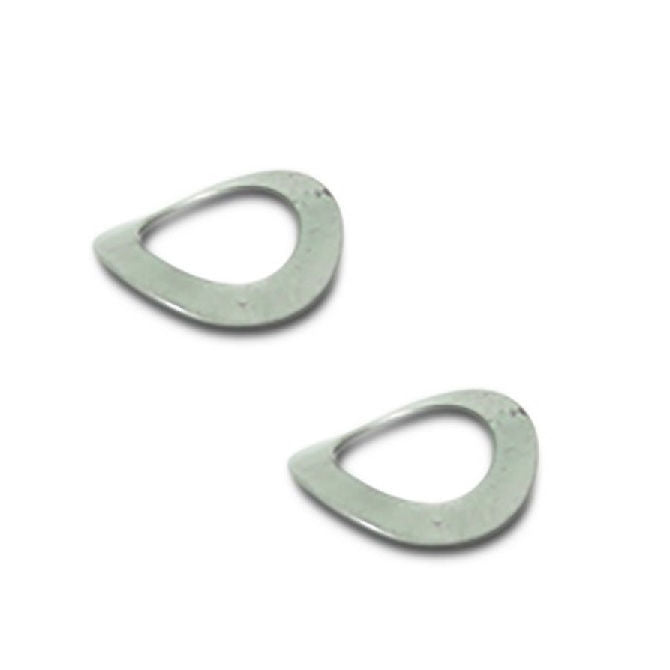

Spring Washers - 4x8x0.8 mm Curved - Carbon Spring Steel HRC 43-50 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Screws
Couldn't load pickup availability
5/32x1/32 inch Washer - 4x8x0.8 mm Spring Washers - Carbon Spring Steel HRC 43-50 - Sold per pack of 100:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Curved - Carbon Steel
Product Details
Deleted Item. Available while stocks last.

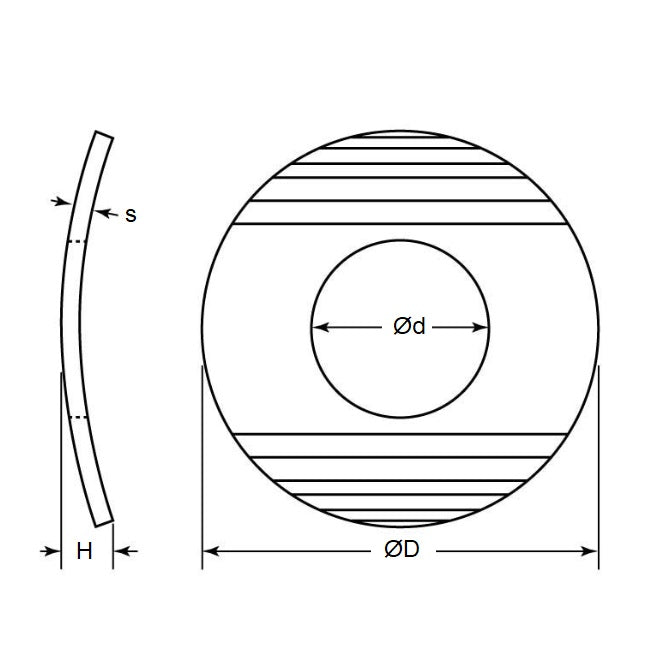

Nominal Inside Diameter (B): 4.00mm
+ 0.300 / - 0
(4.00mm is 0.157 in.)
Carbon Spring Steel HRC 43-50
- Nominal Inside Diameter (B): 4.00mm
+ 0.300 / - 0
(4.00mm is 0.157 in.)
- Nominal Outside Diameter (A): 8.00mm
+/- 0.45
(8.00mm is 0.315 in.)
- Nom. Height (C): 0.80mm
(0.80mm is 0.031 in.)
- Thickness (D): 0.50mm
- Info: Zinc Plated
- Type: Curved DIN 137 Type A
- Nominal Screw Size: M4, 5/32
- Actual ID (Ref): 4.3mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0040T008008WCZ, W0040T008
