Washers - Spring - Curved - Carbon Steel

Washers -> Spring -> Curved -> Carbon Steel

There are 7 products in the sub-categories of Washers - Spring - Curved - Carbon Steel. Browse the Washers - Spring - Curved - Carbon Steel products table.

Category Details

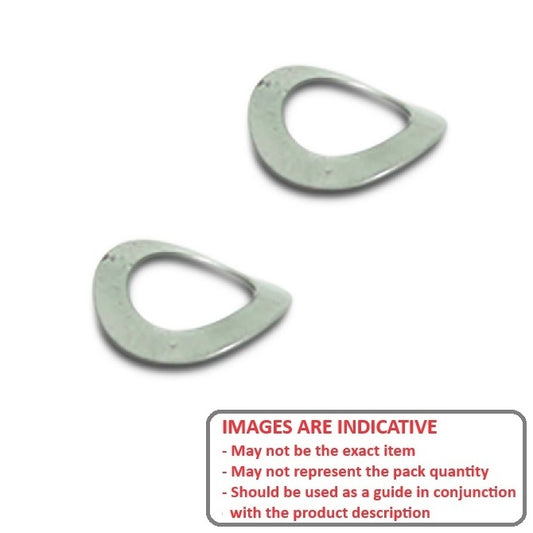

A selection of Carbon Steel Curved Spring Washers. Carbon steel, curved selection.

  • Spring washers are available in many different materials and types, including curved and waved series.
  • They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
  • An expanded range may be available on special order. Please enquire.
  • ID and OD are long axis dimensions

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Spring - Curved - Carbon Steel category on the Small Parts & Bearings online store.
Nominal Inside Diameter (B) Nominal Outside Diameter (A) Nom. Height (C) Thickness (D) Info Indicative
Nominal Inside Diameter (B)
2.50
mm
+ 0.250 / - 0
(Equiv. 0.098 in.)
Nominal Outside Diameter (A)
5.50
mm
+/- 0.38
(Equiv. 0.217 in.)
Nom. Height (C)
0.55
mm

(Equiv. 0.022 in.)
Thickness (D)
0.30
mm
Info
Zinc Plated
Spring Washers - 2.5x5.5x0.55 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M2.5, 4-40 / 4-48, 3/32    Actual ID (Ref): 2.8 mm
Part Number: W0025-T-006-006-WC-CZ (5 Pcs)
Spring Washers - 2.5x5.5x0.55 mm Curved - Carbon Spring Steel Zinc Plated Washer
14 units (70 pcs) Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 5
Quantity Required

14 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) Nominal Outside Diameter (A) Nom. Height (C) Thickness (D) Indicative
Nominal Inside Diameter (B)
2.50
mm
+ 0.250 / - 0
(Equiv. 0.098 in.)
Nominal Outside Diameter (A)
5.50
mm
+/- 0.38
(Equiv. 0.217 in.)
Nom. Height (C)
0.55
mm

(Equiv. 0.022 in.)
Thickness (D)
0.30
mm
Spring Washers - 2.5x5.5x0.55 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M2.5, 4-40 / 4-48, 3/32    Actual ID (Ref): 2.8 mm
Part Number: W0025-T-006-006-WC-CZ (5 Pcs)
Spring Washers - 2.5x5.5x0.55 mm Curved - Carbon Spring Steel Zinc Plated Washer
14 units (70 pcs) Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 5
Quantity Required

14 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
3.00
mm
+ 0.300 / - 0
(Equiv. 0.118 in.)
Nominal Outside Diameter (A)
6.00
mm
+/- 0.38
(Equiv. 0.236 in.)
Nom. Height (C)
0.65
mm

(Equiv. 0.026 in.)
Thickness (D)
0.40
mm
Info
Zinc Plated
Spring Washers - 3x6x0.65 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M3, 5-40, 5-44, 1/8    Actual ID (Ref): 3.2 mm
Part Number: W0030-T-006-007-WC-CZ (10 Pcs)
Spring Washers - 3x6x0.65 mm Curved - Carbon Spring Steel Zinc Plated Washer
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
3.00
mm
+ 0.300 / - 0
(Equiv. 0.118 in.)
Nominal Outside Diameter (A)
6.00
mm
+/- 0.38
(Equiv. 0.236 in.)
Nom. Height (C)
0.65
mm

(Equiv. 0.026 in.)
Thickness (D)
0.40
mm
Spring Washers - 3x6x0.65 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M3, 5-40, 5-44, 1/8    Actual ID (Ref): 3.2 mm
Part Number: W0030-T-006-007-WC-CZ (10 Pcs)
Spring Washers - 3x6x0.65 mm Curved - Carbon Spring Steel Zinc Plated Washer
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
4.00
mm
+ 0.300 / - 0
(Equiv. 0.157 in.)
Nominal Outside Diameter (A)
8.00
mm
+/- 0.45
(Equiv. 0.315 in.)
Nom. Height (C)
0.80
mm

(Equiv. 0.031 in.)
Thickness (D)
0.50
mm
Info
Zinc Plated
Spring Washers - 4x8x0.8 mm - Spring Steel HRC 43-50
Material: Carbon Spring Steel HRC 43-50    Type: Curved DIN 137 Type A    Nominal Screw Size: M4, 5/32    Actual ID (Ref): 4.3 mm
Part Number: W0040-T-008-008-WC-Z (100 Pcs)
Spring Washers - 4x8x0.8 mm Curved - Carbon Spring Steel HRC 43-50 Washer
5 units (500 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 100
Quantity Required

5 units (500 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
4.00
mm
+ 0.300 / - 0
(Equiv. 0.157 in.)
Nominal Outside Diameter (A)
8.00
mm
+/- 0.45
(Equiv. 0.315 in.)
Nom. Height (C)
0.80
mm

(Equiv. 0.031 in.)
Thickness (D)
0.50
mm
Spring Washers - 4x8x0.8 mm - Spring Steel HRC 43-50
Material: Carbon Spring Steel HRC 43-50    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M4, 5/32    Actual ID (Ref): 4.3 mm
Part Number: W0040-T-008-008-WC-Z (100 Pcs)
Spring Washers - 4x8x0.8 mm Curved - Carbon Spring Steel HRC 43-50 Washer
5 units (500 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 100
Quantity Required

5 units (500 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
4.76
mm
+ 0.300 / - 0
(Equiv. 0.187 in.)
Nominal Outside Diameter (A)
9.40
mm
+/- 0.45
(Equiv. 0.37 in.)
Nom. Height (C)
1.19
mm

(Equiv. 0.047 in.)
Thickness (D)
0.23
mm
Info
Zinc Plated
Spring Washers - 4.76x9.4x1.19 mm - Spring Steel AISI C1075 Blued
Material: Carbon Spring Steel AISI C1075 Blued    Type: Curved DIN 137 Type A    Nominal Screw Size: 10-24, 10-32, 3/16    Actual ID (Ref): 5.1 mm
Part Number: W0048-T-010-012-WC-CZ (4 Pcs)
Spring Washers - 4.76x9.4x1.19 mm Curved - Carbon Spring Steel AISI C1075 Blued Washer
1 pack (4 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Per 4
Quantity Required

1 pack (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
4.76
mm
+ 0.300 / - 0
(Equiv. 0.187 in.)
Nominal Outside Diameter (A)
9.40
mm
+/- 0.45
(Equiv. 0.37 in.)
Nom. Height (C)
1.19
mm

(Equiv. 0.047 in.)
Thickness (D)
0.23
mm
Spring Washers - 4.76x9.4x1.19 mm - Spring Steel AISI C1075 Blued
Material: Carbon Spring Steel AISI C1075 Blued    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: 10-24, 10-32, 3/16    Actual ID (Ref): 5.1 mm
Part Number: W0048-T-010-012-WC-CZ (4 Pcs)
Spring Washers - 4.76x9.4x1.19 mm Curved - Carbon Spring Steel AISI C1075 Blued Washer
1 pack (4 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Per 4
Quantity Required

1 pack (4 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
5.00
mm
+ 0.300 / - 0
(Equiv. 0.197 in.)
Nominal Outside Diameter (A)
10.00
mm
+/- 0.45
(Equiv. 0.394 in.)
Nom. Height (C)
0.90
mm

(Equiv. 0.035 in.)
Thickness (D)
0.50
mm
Info
Zinc Plated
Spring Washers - 5x10x0.9 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M5, 10-24, 10-32, 3/16    Actual ID (Ref): 5.3 mm
Part Number: W0050-T-010-009-WC-CZ (40 Pcs)
Spring Washers - 5x10x0.9 mm Curved - Carbon Spring Steel Zinc Plated Washer
1 pack (40 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 40
Quantity Required

1 pack (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
5.00
mm
+ 0.300 / - 0
(Equiv. 0.197 in.)
Nominal Outside Diameter (A)
10.00
mm
+/- 0.45
(Equiv. 0.394 in.)
Nom. Height (C)
0.90
mm

(Equiv. 0.035 in.)
Thickness (D)
0.50
mm
Spring Washers - 5x10x0.9 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M5, 10-24, 10-32, 3/16    Actual ID (Ref): 5.3 mm
Part Number: W0050-T-010-009-WC-CZ (40 Pcs)
Spring Washers - 5x10x0.9 mm Curved - Carbon Spring Steel Zinc Plated Washer
1 pack (40 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 40
Quantity Required

1 pack (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
8.00
mm
+ 0.360 / - 0
(Equiv. 0.315 in.)
Nominal Outside Diameter (A)
15.00
mm
+/- 0.55
(Equiv. 0.591 in.)
Nom. Height (C)
1.70
mm

(Equiv. 0.067 in.)
Thickness (D)
0.50
mm
Info
Zinc Plated
Spring Washers - 8x15x1.7 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M8, 5/16    Actual ID (Ref): 8.4 mm
Part Number: W0080-T-016-017-WC-CZ (10 Pcs)
Spring Washers - 8x15x1.7 mm Curved - Carbon Spring Steel Zinc Plated Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
8.00
mm
+ 0.360 / - 0
(Equiv. 0.315 in.)
Nominal Outside Diameter (A)
15.00
mm
+/- 0.55
(Equiv. 0.591 in.)
Nom. Height (C)
1.70
mm

(Equiv. 0.067 in.)
Thickness (D)
0.50
mm
Spring Washers - 8x15x1.7 mm - Spring Steel Zinc Plated
Material: Carbon Spring Steel Zinc Plated    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: M8, 5/16    Actual ID (Ref): 8.4 mm
Part Number: W0080-T-016-017-WC-CZ (10 Pcs)
Spring Washers - 8x15x1.7 mm Curved - Carbon Spring Steel Zinc Plated Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B)
9.53
mm
+ 0.360 / - 0
(Equiv. 0.375 in.)
Nominal Outside Diameter (A)
18.67
mm
+/- 0.55
(Equiv. 0.735 in.)
Nom. Height (C)
3.28
mm

(Equiv. 0.129 in.)
Thickness (D)
0.28
mm
Info
Zinc Plated

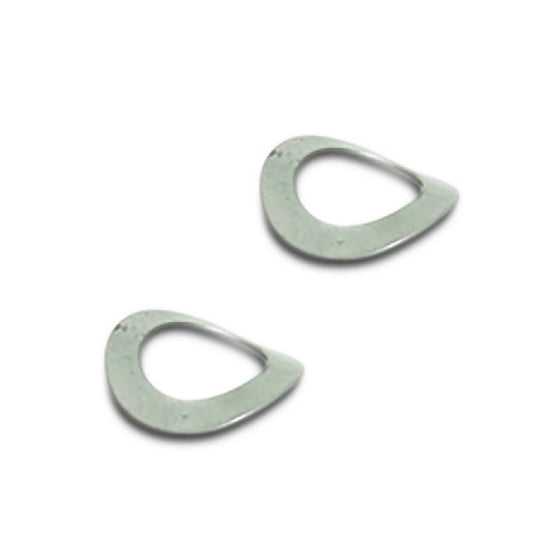

Spring Washers - 9.53x18.67x3.28 mm - Spring Steel AISI C1075 Blued
Material: Carbon Spring Steel AISI C1075 Blued    Type: Curved DIN 137 Type A    Nominal Screw Size: 3/8    Actual ID (Ref): 10.0 mm
Part Number: W0095-T-019-033-WC-CZ
Spring Washers - 9.53x18.67x3.28 mm Curved - Carbon Spring Steel AISI C1075 Blued Washer
10 Available Now | Further orders can be expected around Wed, Oct 01, 2025
$6.95 AUD
$6.95 AUD
Each
Quantity Required

10 Available Now. Backorder if more than 10.
Nominal Inside Diameter (B)
9.53
mm
+ 0.360 / - 0
(Equiv. 0.375 in.)
Nominal Outside Diameter (A)
18.67
mm
+/- 0.55
(Equiv. 0.735 in.)
Nom. Height (C)
3.28
mm

(Equiv. 0.129 in.)
Thickness (D)
0.28
mm
Spring Washers - 9.53x18.67x3.28 mm - Spring Steel AISI C1075 Blued
Material: Carbon Spring Steel AISI C1075 Blued    Info: Zinc Plated    Type: Curved DIN 137 Type A    Nominal Screw Size: 3/8    Actual ID (Ref): 10.0 mm
Part Number: W0095-T-019-033-WC-CZ
Spring Washers - 9.53x18.67x3.28 mm Curved - Carbon Spring Steel AISI C1075 Blued Washer
10 Available Now | Further orders can be expected around Wed, Oct 01, 2025
$6.95 AUD
$6.95 AUD
Each
Quantity Required

10 Available Now. Backorder if more than 10.
