ECL-0038-0048-C-KR (100 Pcs)

Name: ECL-0038-0048-C-KR (100 Pack) - E-Clips Retaining Rings - 4.78x3.76x0.89 mm Klipring - Carbon Steel E-Clip
Brand: MBA
SKU: ECL00380048CKR
Price: 20.14 AUD
Availability: BackOrder

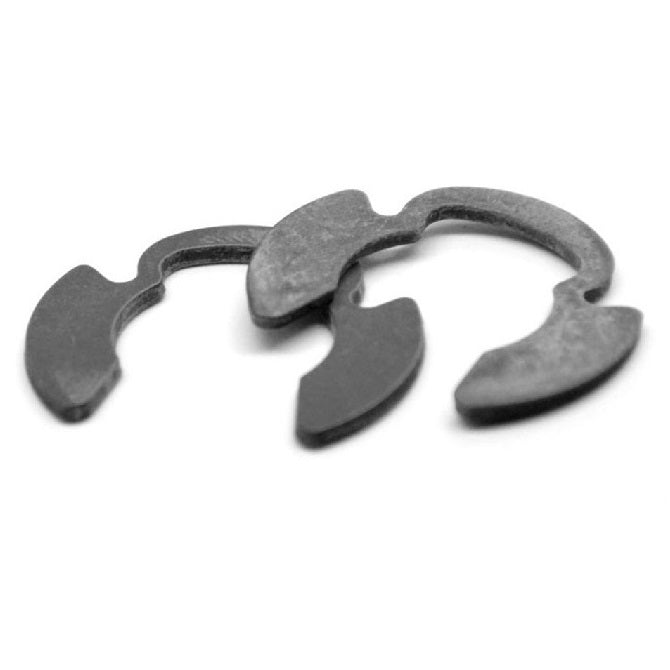

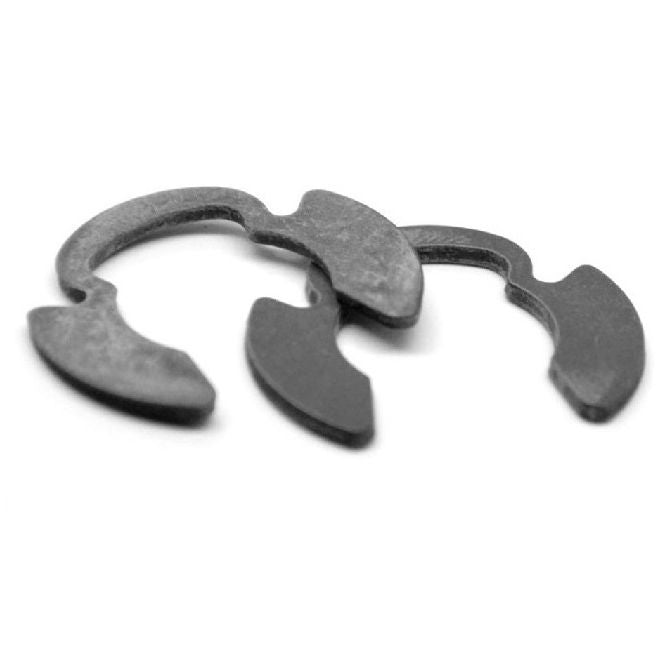

E-Clips Retaining Rings - 4.78x3.76x0.89 mm Klipring - Carbon Steel E-Clip

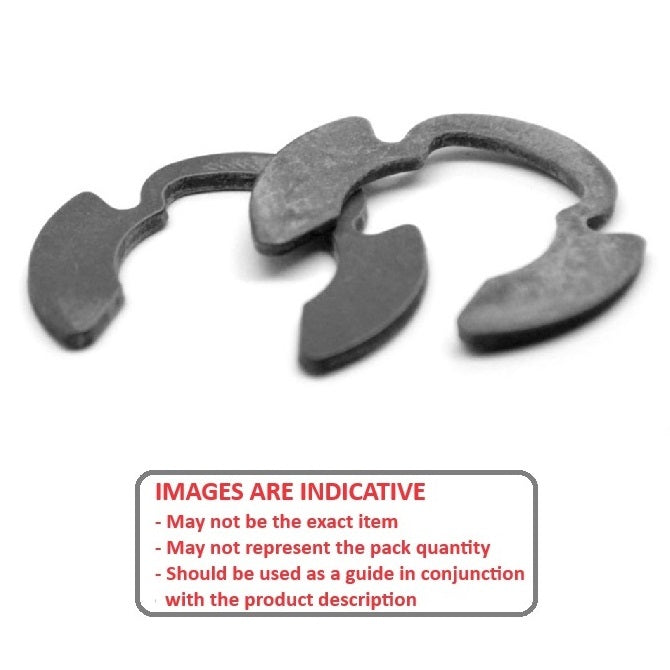

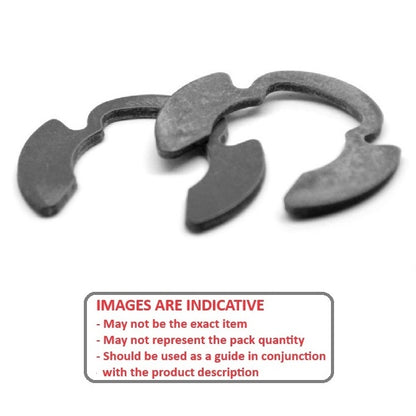

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - E-Clips - Klipring

Additional resources:
Assortment Kits

Price:

$20.14 AUD

~~$47.20 AUD~~ $20.14 AUD

100 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $18.13 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 13564

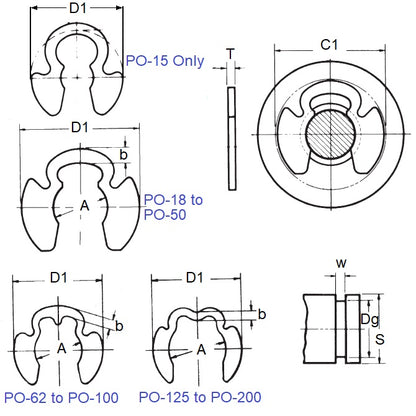

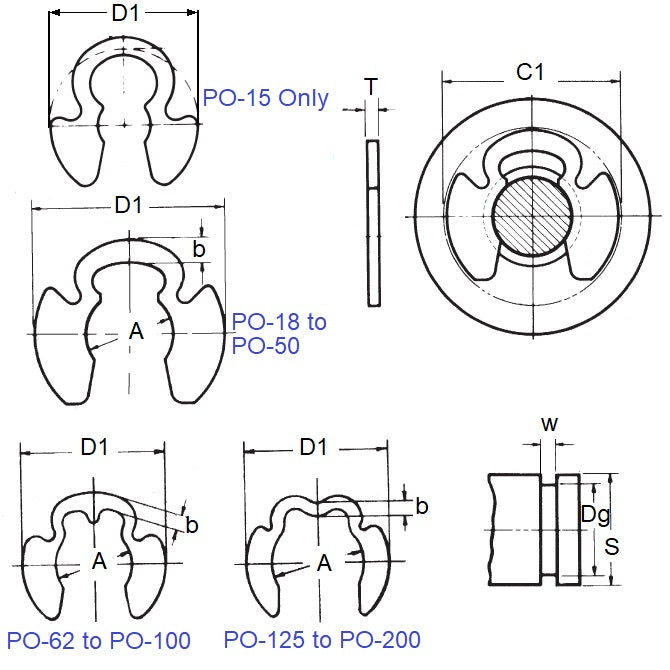

Minimum Rec. Shaft Dia (S): 4.78mm
_{+ 1.52 / - 0.00}
_{(4.78mm is 0.188 in.)}

Carbon Steel

Minimum Rec. Shaft Dia (S): 4.78mm
_{+ 1.52 / - 0.00}
_{(4.78mm is 0.188 in.)}
Groove Dia. (Dg): 3.76mm
_{+/- 0.127}
_{(3.76mm is 0.148 in.)}
Clip Thickness (T): 0.89mm
_{+/ - 0.052}
_{(0.89mm is 0.035 in.)}
Clip OD Loose (D1): 10.16mm
Groove Width (W): 0.99mm
Maximum Rec. Shaft Dia (S): 6.30
Clip OD in groove (C1): 10.67mm
Loose Clip ID (A): 3.56mm
Min. Extension (n): 1.02

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Waldes 5304-018
ALTPART
98420A118
NoCor PO-018
Rotor Clip PO-018
PO018
5304018

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
