Miniature Bearings Australia
ECL-0038-0048-C-KR - Datasheet
MBA
Category Information

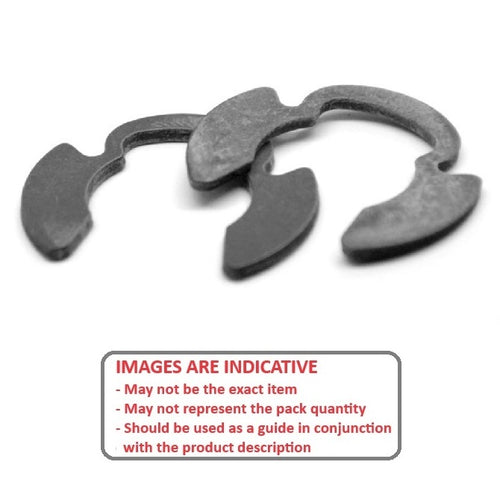

Retaining Rings - E-Clips - KlipringKlipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP
- An expanded range may be available on special order. Please enquire.

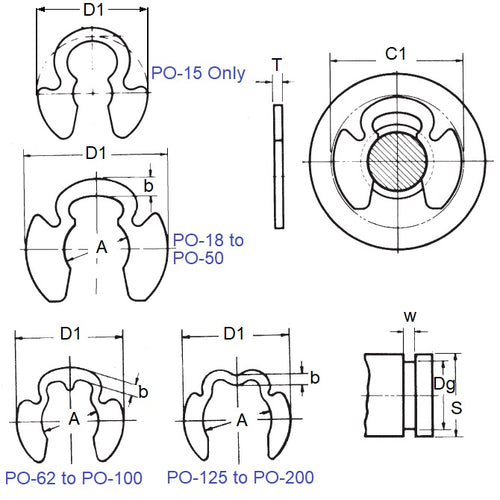

Product Data
- Minimum Rec. Shaft Dia (S)
:
4.78
mm
+ 1.52 / - 0.00
(Equiv. 0.188 in.) - Groove Dia. (Dg)
3.76
mm
+/- 0.127
(Equiv. 0.148 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.052
(Equiv. 0.035 in.) - Clip OD Loose (D1) 10.16 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 6.30
- Clip OD in groove (C1) 10.67 mm
- Loose Clip ID (A) 3.56 mm
- Min. Extension (n) 1.02
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5304-018
- 98420A118
- NoCor PO-018
- Rotor Clip PO-018
- PO018
- 5304018
