SFR166-ZS-MC34-GR5-R-G48 (20 Pcs)

Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing

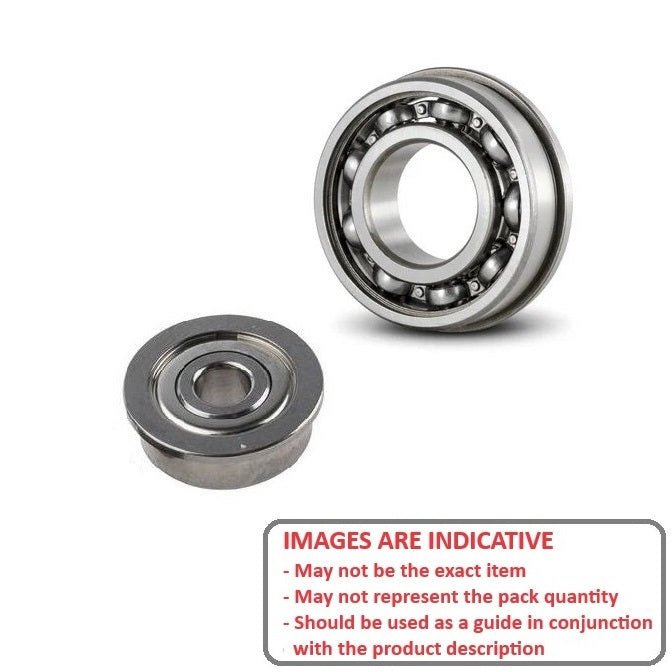

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 4.763x9.525x3.175 mm - Stainless Steel AISI 440C
1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting
Price:
$1,169.68 AUD
$1,169.68 AUD
per 20
Backorder
Order 50 or more pack (1000 pcs) for $1,052.71 AUD per 20
Backorder now! Backorders for more than the stock quantity are expected before Oct 24, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

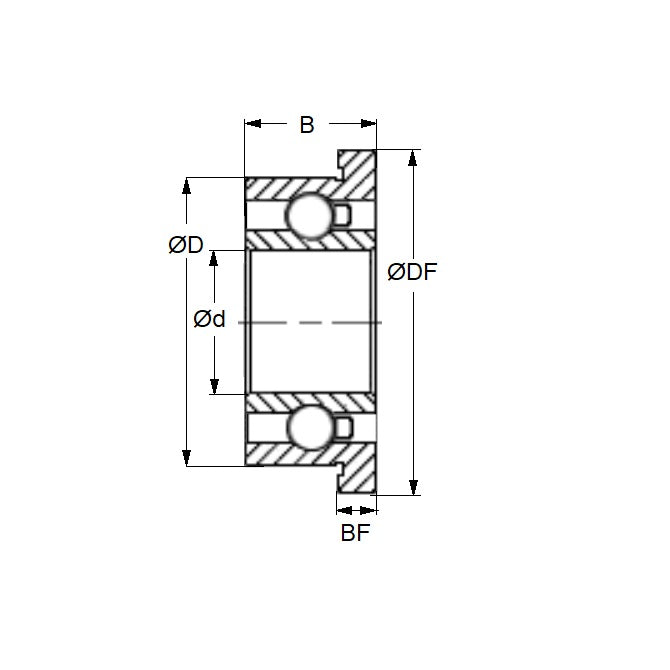

Product Details

ID (d): 4.763mm
+ 0.000 / - 0.005
(4.763mm is 0.188 in.)

Stainless Steel AISI 440C
  • ID (d): 4.763mm
    + 0.000 / - 0.005
    (4.763mm is 0.188 in.)
  • OD (D): 9.525mm
    + 0.000 / - 0.005
    (9.525mm is 0.375 in.)
  • Width (B): 3.175mm
    + 0.000 / - 0.040
    (3.175mm is 0.125 in.)
  • Flange Diameter (DF): 10.719mm
  • Flange Width (BF): 0.787mm
  • Precision Grade: Abec 5
  • Closure Type: Z
  • Bearing Type: Radial Flanged
  • Lubricant: Turmogrease Li 802 EP plus
  • Notes: Single Shield on Flanged Side

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

  • FR166
  • S9912Y-E1837FS1G
  • S9912YE1837FS1G
  • SFR166ZSRGR5MC34G48
  • SFR166ZSMC34GR5G5
  • ULKZ6012X1c48A5P6/15G48
  • ULKZ6012X.1-5/13-A5P-G5
  • ULKZ6012X15/13A5PG5
  • ULKZ-6012X.1c-48-A5P-6/15-G48
  • FR166BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
