SFR166UF-MC34-GR5-R-L23 (21 Pcs)

Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing

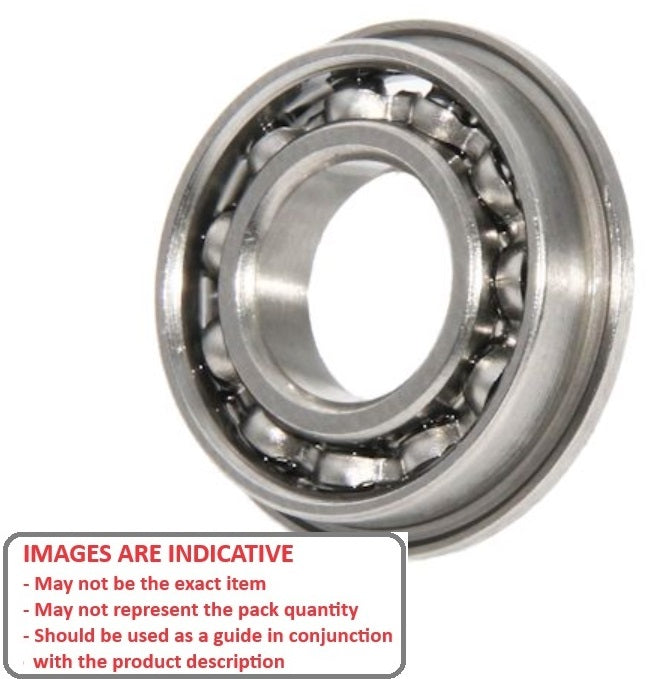

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 4.763x9.525x3.175 mm - Stainless Steel AISI 440C
1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting
Price:
$1,112.68 AUD
$1,112.68 AUD
per 21
Backorder
Order 50 or more pack (1050 pcs) for $1,001.41 AUD per 21
Backorder now! Backorders for more than the stock quantity are expected before Oct 24, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Product Details

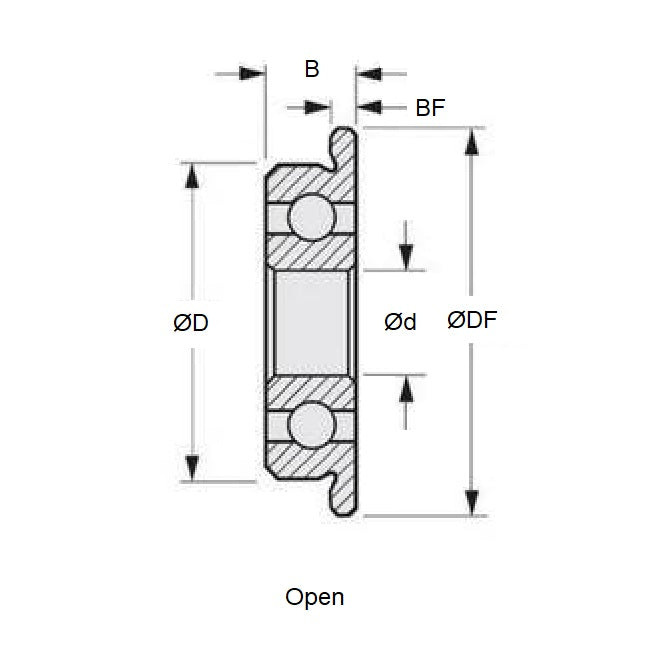

ID (d): 4.763mm
+ 0.000 / - 0.005
(4.763mm is 0.188 in.)

Stainless Steel AISI 440C
  • ID (d): 4.763mm
    + 0.000 / - 0.005
    (4.763mm is 0.188 in.)
  • OD (D): 9.525mm
    + 0.000 / - 0.005
    (9.525mm is 0.375 in.)
  • Width (B): 3.175mm
    + 0.000 / - 0.040
    (3.175mm is 0.125 in.)
  • Flange Diameter (DF): 10.719mm
  • Flange Width (BF): 0.584mm
  • Precision Grade: Abec 5
  • Closure Type: Open
  • Bearing Type: Radial Flanged
  • Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

  • GRW SF4763B-P5
  • FR166UF
  • P5-SFR166
  • P5SFR166
  • SFR166UFMC3GR5L23
  • SF4763BP5
  • SFR166UFRGR5MC34L23
  • ULK6012X48A5P6/15L23
  • ULK6012XA5PL23
  • ULK-6012X-48-A5P-6/15-L23
  • ULK6012X-A5P-L23
  • FR166UFBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
