SFR156A-ZZS-MC3

Name: SFR156A-ZZS-MC3 - Single Row Ball Bearings - 4.763x7.938x3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SFR156AZZSMC3
Price: 13.91 AUD
Availability: InStock

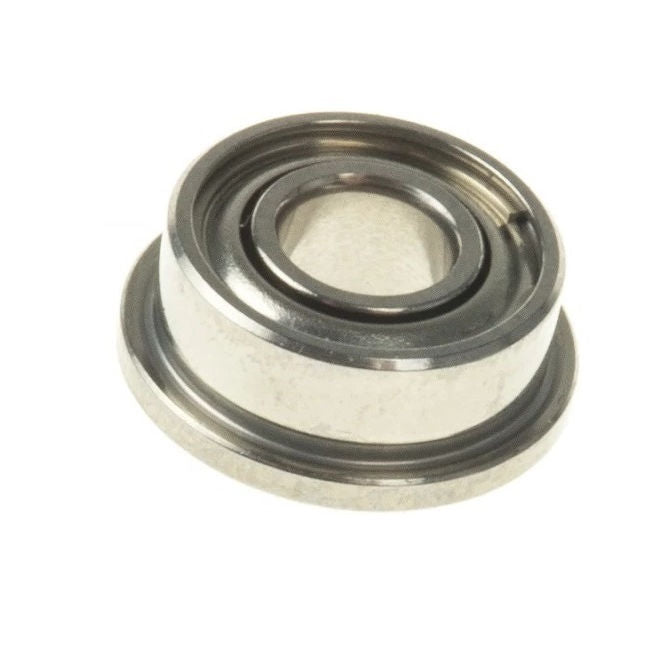

Single Row Ball Bearings - 4.763x7.938x3.175 mm Flanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$13.91 AUD

~~$73.64 AUD~~ $13.91 AUD

Each
Qty: 95 available now
Order 50 or more for $12.52 AUD Each

Product Details

Deleted Item. Available while stocks last.

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}

Stainless Steel AISI 440C

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}
OD (D): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}
Width (B): 3.175mm
_{+ 0.000 / - 0.125}
_{(3.175mm is 0.125 in.)}
Flange Diameter (DF): 9.119mm
Flange Width (BF): 0.914mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
57155K318
Similar Part FLWRA156A
NTN FLWRA156-ZZA
Stainless FR156AZZSMC3
Stainless FR156A-ZZS-MC3
MPB S5632FCHH
MPB S5632FC-ZZ
GRW SF4763A-2Z
Shielded Width A SFR156/3.18.18
Shielded SFR156A / 3
NHBB SSFR156PP
NHBB SSR1F-5632X-ZZ
ADR WFAX3-16-ZZ
WFAX316ZZ
SSR1F5632XZZ
SSR1F5632ZZ
SS-R1F-5632-ZZ
SSR1F-5632-ZZ
SFR156A-ZZSMC3
SFR156AZZSMC3
SFR156SS
DDR1F5632ZZ
DD-R1F-5632-ZZ
DDR1F-5632-ZZ
DMB29
DMB-29
FLWRA156ZZA
SF4763A2Z
ULKZ6010X
S5632FCZZ
FR156ABASIC

Used for

RC Car Parts
Associated - RC10GT Special With Clutch Bell - Flanged Bearing 4.76-7.94-3.18mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
