FR156A-ZZS-MC3 (2 Pcs)

Name: FR156A-ZZS-MC3 (2 Pack) - Single Row Ball Bearings - 4.763x7.938x3.175 mm Flanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: FR156AZZSMC3
Price: 5.59 AUD
Availability: InStock

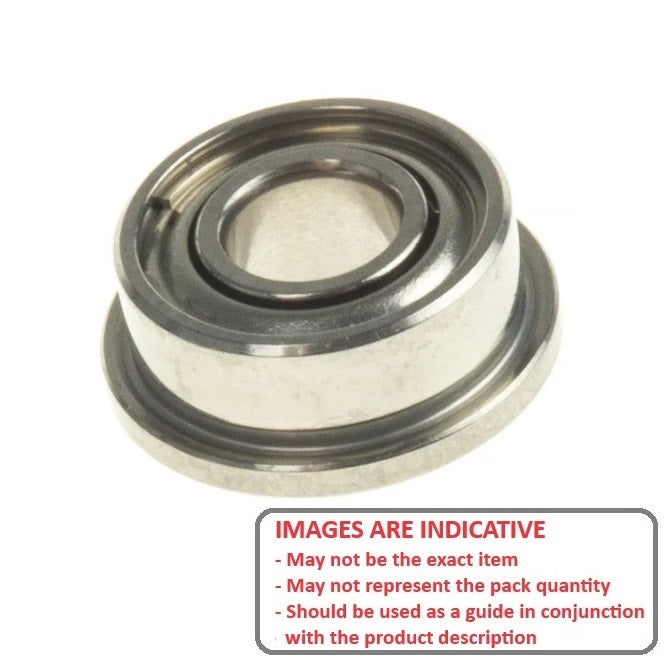

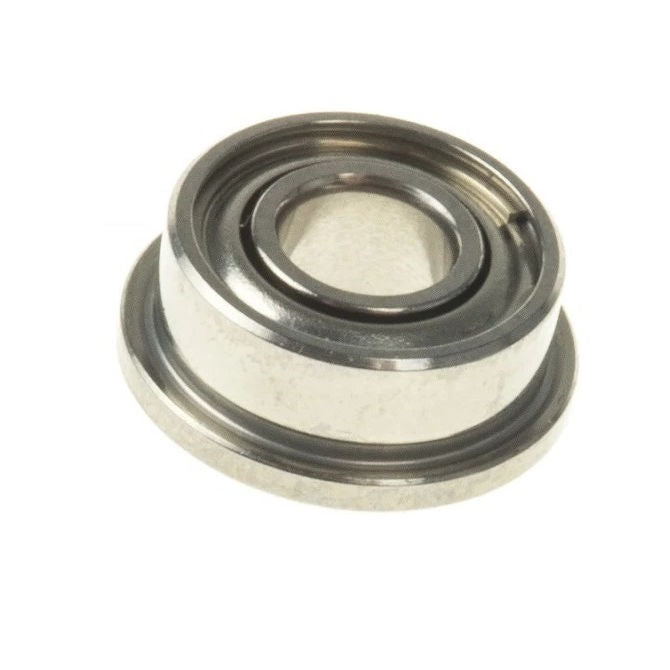

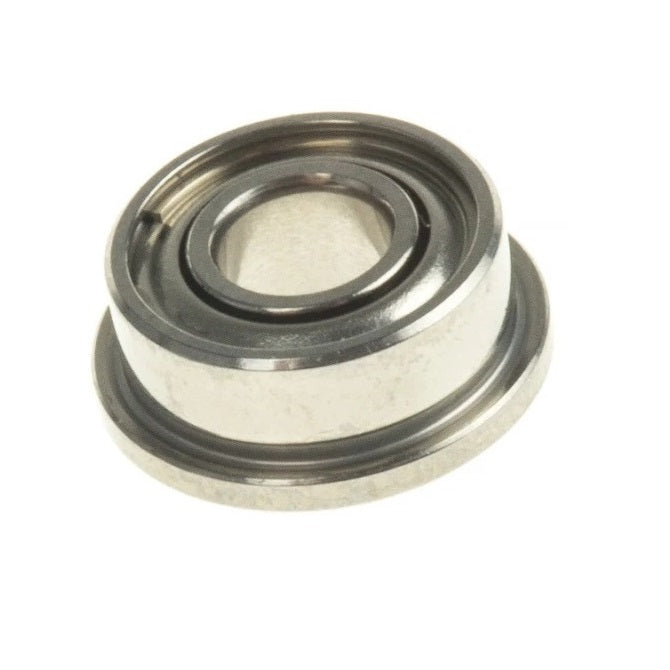

Single Row Ball Bearings - 4.763x7.938x3.175 mm Flanged - Chrome Steel SAE 52100 Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$5.59 AUD

~~$23.25 AUD~~ $5.59 AUD

per 2
Qty: 10 packs (20 pcs) available now

Product Details

Deleted Item. Available while stocks last.

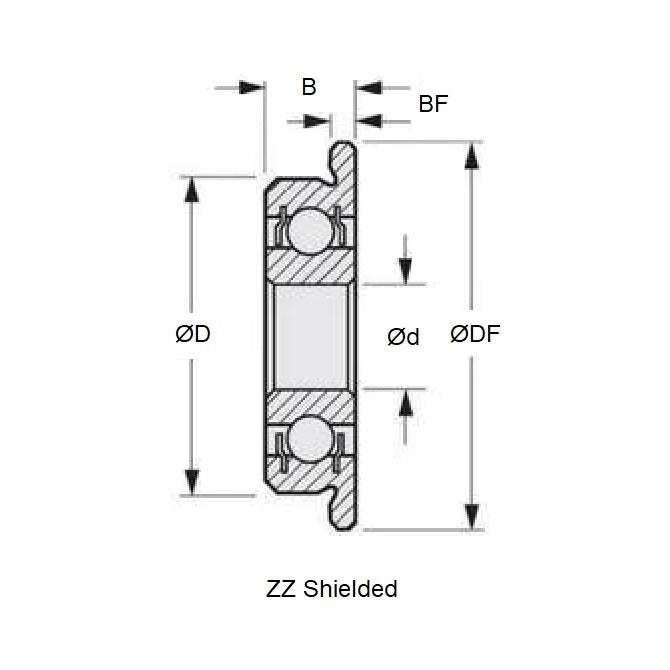

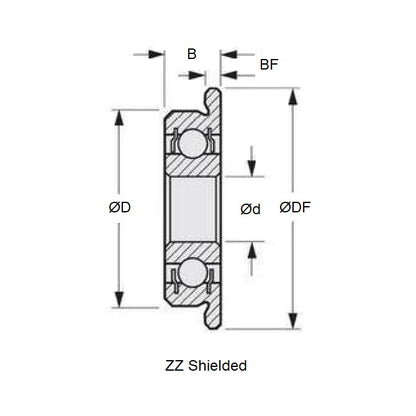

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}

Chrome Steel SAE 52100

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}
OD (D): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}
Width (B): 3.175mm
_{+ 0.000 / - 0.125}
_{(3.175mm is 0.125 in.)}
Flange Diameter (DF): 9.119mm
Flange Width (BF): 0.914mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

MPB 5632FCHH
MPB 5632FC-ZZ
Associated 6902
GRW F4763A-2Z
ADR FAX3-16-ZZ
NTN FLRA156-ZZA
NHBB FR156PP
ISO FR156ZZ
ISO FR156-ZZ
NHBB R1F-5632X-ZZ
FAG RF1220-ZZ
ISO SFR156ZZ
ISO SFR156-ZZ
R1F5632XZZ
R1F-5632-ZZ
R1F5632ZZ
RF1220ZZ
FR156SS
FR156AZZSMC3
FR156-ZZ-P6
FR156A-ZZSMC3
FR156ZZP6
FLRA156ZZA
FAX316ZZ
F4763A2Z
5632FCZZ
FR156ABASIC

Used for

RC Car Parts
Advantage Products - Avenger 3/16 Axle Gas - Flanged Bearing 4.76-7.94-3.18mm
Associated - Nitro TC3 - Flanged Bearing 4.76-7.94-3.18mm
Associated - Nitro TC3 RTR - Flanged Bearing 4.76-7.94-3.18mm
Associated - Nitro TC3 RTR Plus On Road - Flanged Bearing 4.76-7.94-3.18mm
Associated - Nitro TC3 With Steering - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 - TQ10 - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 Champion Series - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 Championship Edition - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 Original Golden Pan - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10 Team Car - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10GT Factory Team With Clutch Bell - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10GT RTR With Clutch Bell - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10L2 - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10L3 Oval - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10L3 Oval With Diff Bearing - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10L4 Oval - Flanged Bearing 4.76-7.94-3.18mm
Associated - RC10T - GT10 Truck - Clutch Bell Flanged Bearing 4.76-7.94-3.18mm
Associated - RC500 Gas 4WD - Flanged Bearing 4.76-7.94-3.18mm
Associated - Team Car - Flanged Bearing 4.76-7.94-3.18mm
Composite Craft - Lynx Super Speedway 3-16 Front Axle - Flanged Bearing 4.76-7.94-3.18mm
Delta - Villain IFS - Flanged Bearing 4.76-7.94-3.18mm
Duratrax - GT10 - Flanged Bearing 4.76-7.94-3.18mm
Duratrax - Hyper-10 - Flanged Bearing 4.76-7.94-3.18mm
Duratrax - LXT Gas Conversion - Flanged Bearing 4.76-7.94-3.18mm
Duratrax - RC10T Gas Conversion - Flanged Bearing 4.76-7.94-3.18mm
Hyperdrive - 510 - Flanged Bearing 4.76-7.94-3.18mm
Hyperdrive - Hyper-10 - Flanged Bearing 4.76-7.94-3.18mm
Hyperdrive - Hyper-10 Sport - Flanged Bearing 4.76-7.94-3.18mm
Hyperdrive - STX - Flanged Bearing 4.76-7.94-3.18mm
Racetech - Carpet Pro - Flanged Bearing 4.76-7.94-3.18mm
TRC - Pro 10 3-16 Axle - Flanged Bearing 4.76-7.94-3.18mm
Trinity - Evolution 10 3-16 Axle - Flanged Bearing 4.76-7.94-3.18mm
Trinity - Switchblade 2 - Flanged Bearing 4.76-7.94-3.18mm
Yokomo - YRX-12WE - Flanged Bearing 4.76-7.94-3.18mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
