SWR3C-ZZ-MC3-AF12

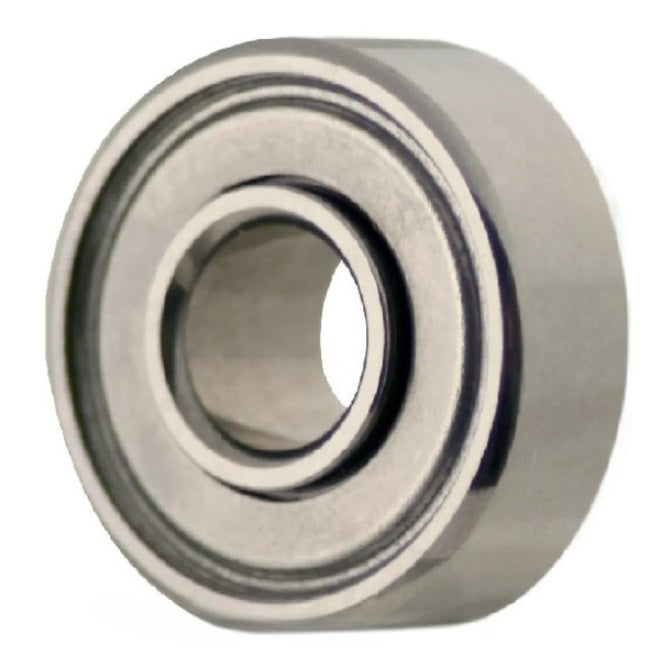

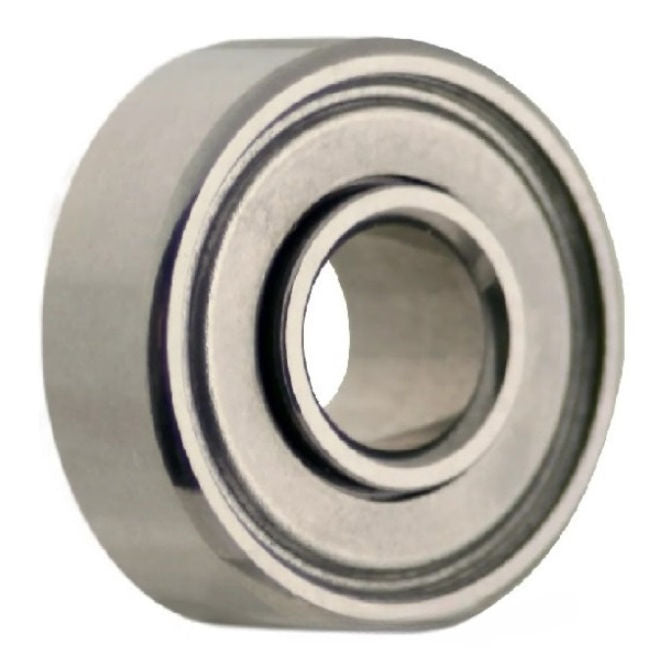

Single Row Ball Bearings - 4.763x12.7x4.978 mm / 5.771 mm Unflanged - Stainless Steel AISI 440C Bearing

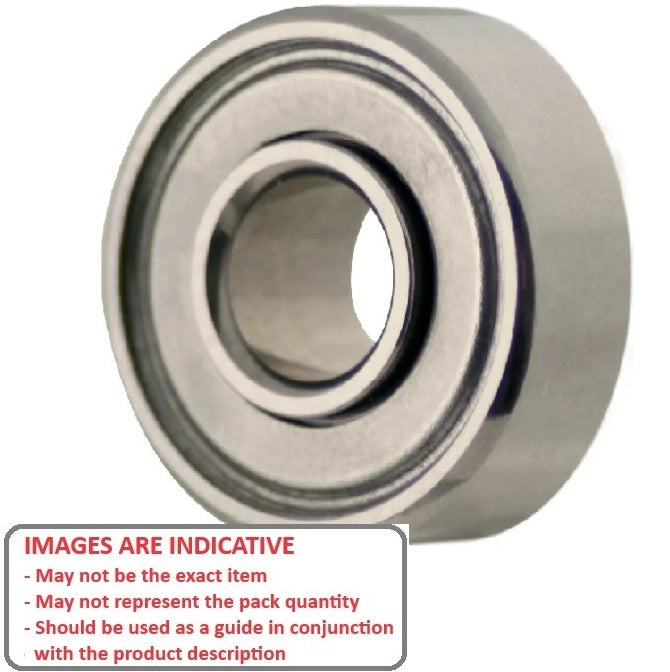

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 4.763x12.7x4.978 mm / 5.771 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$11.05 AUD
$11.05 AUD
Excludes GST and overseas Taxes & Duties
 Each
Qty: 15 available now
Order 50 or more for $9.95 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 07, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

Product Details

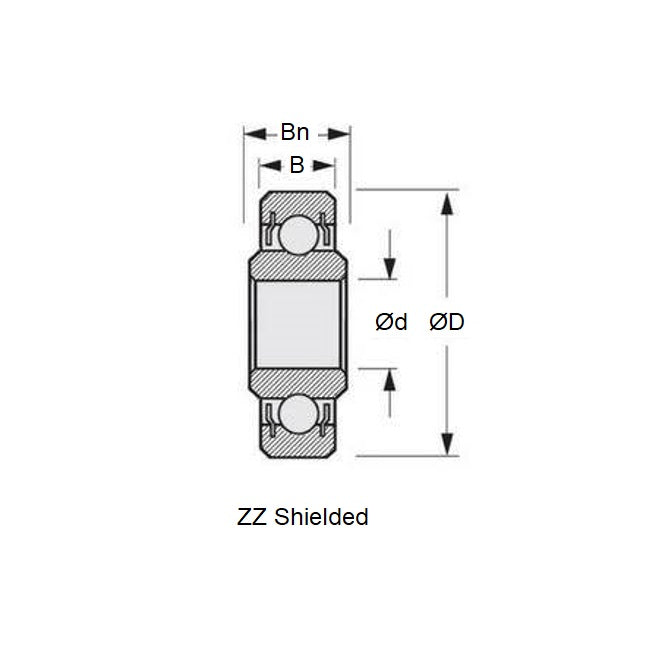

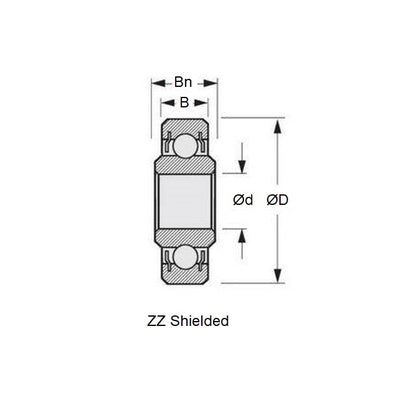

ID (d): 4.763mm
+ 0.000 / - 0.0075
(4.763mm is 0.188 in.)

Stainless Steel AISI 440C
  • ID (d): 4.763mm
    + 0.000 / - 0.0075
    (4.763mm is 0.188 in.)
  • OD (D): 12.700mm
    + 0.000 / - 0.0075
    (12.700mm is 0.5 in.)
  • Width (B): 4.978mm
    + 0.000 / - 0.125
    (4.978mm is 0.196 in.)
  • Inner Ring Width (Bn): 5.771mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial with Extended Inner

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • ALTPART
  • 57155K385
  • NHBB SR3PPEE
  • Similar Part SRW3
  • Similar Part SRW3AF2
  • NHBB SSR3PPEE
  • Similar Part SSRW3
  • Similar Part SSRW3AF2
  • Shielded Width C SSWR3/5
  • Shielded SSWR3C / 5
  • Shielded Width C SWR3/5
  • Shielded SWR3C / 5
  • SSRW3SS
  • SSRW3ZAF2
  • SSRW3-Z-AF2
  • SSRW3-ZZ-MC3-AF2
  • SSRW3-ZZ-AF2
  • SSRW3ZMC3AF2
  • SSRW3-Z-MC3-AF2
  • SSRW3ZZAF2
  • SSRW3ZZMC3AF2
  • DMB-46
  • DMB46
  • WR3CBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
