RPO-047-048-SP15 (PK-50)

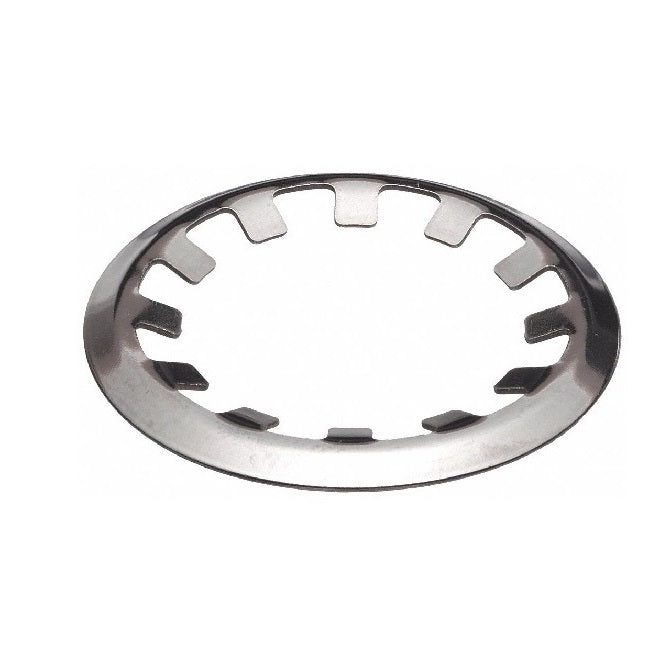

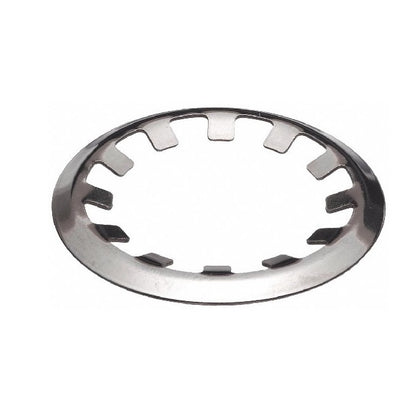

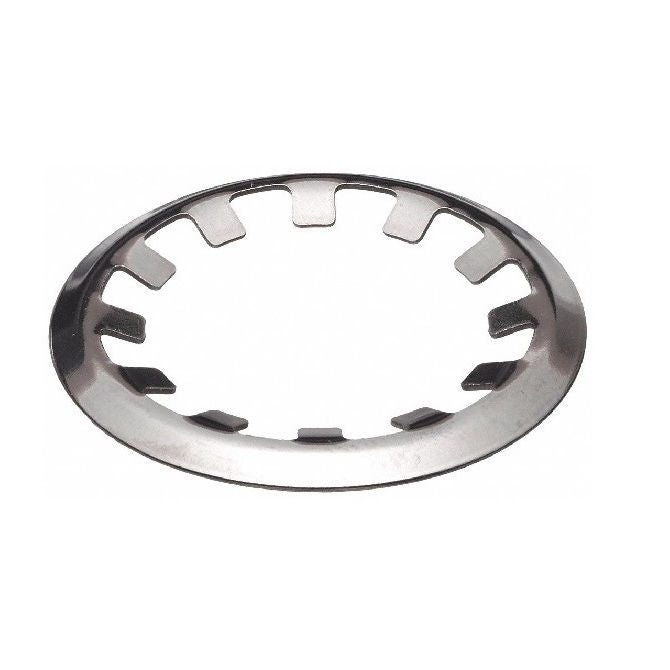

Push On Retaining Rings - 4.75x4.8x9.83 mm - Stainless Steel Grade PH15-7-17 Ring

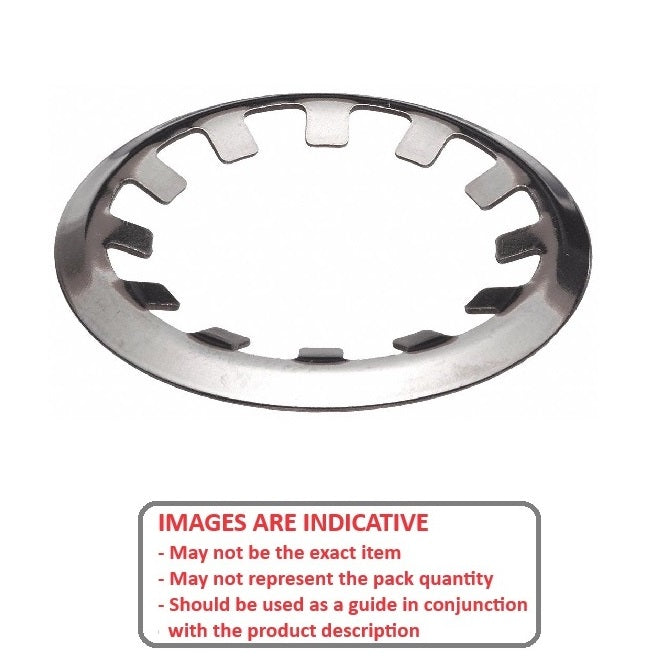

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push On Retaining Rings - 4.75x4.8x9.83 mm - Stainless Steel Grade PH15-7-17
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$76.14 AUD
$91.36 AUD $76.14 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $68.53 AUD
Backorder now! Backorders are expected before Feb 28, 2026

Base Category: Retaining Rings - Push On

Top Level Category: Retaining Rings - Push On - Stainless Steel

Product Details

Min shaft size (s1): 4.75mm
(4.75mm is 0.187 in.)

Stainless Steel Grade PH15-7-17
  • Min shaft size (s1): 4.75mm
    (4.75mm is 0.187 in.)
  • Max Shaft Size (s2): 4.80mm
    (4.80mm is 0.189 in.)
  • Outside diameter (D1): 9.83mm
    (9.83mm is 0.387 in.)
  • Min shaft extension (n1): 1.02mm
  • Material Thickness (t): 0.25mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Waldes 5105-018-SS
  • IRR 6100-018-SS
  • NoCor TY-018-SS
  • Rotor Clip TY-018-SS
  • 5105018SS
  • 6100018SS
