SHLD040-004-SKT-S416 (Each)

Name: Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw - SHLD040-004-SKT-S416
Brand: MBA
SKU: SHLD040004SKTS416
Price: 9.83 AUD
Availability: LimitedAvailability

Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw

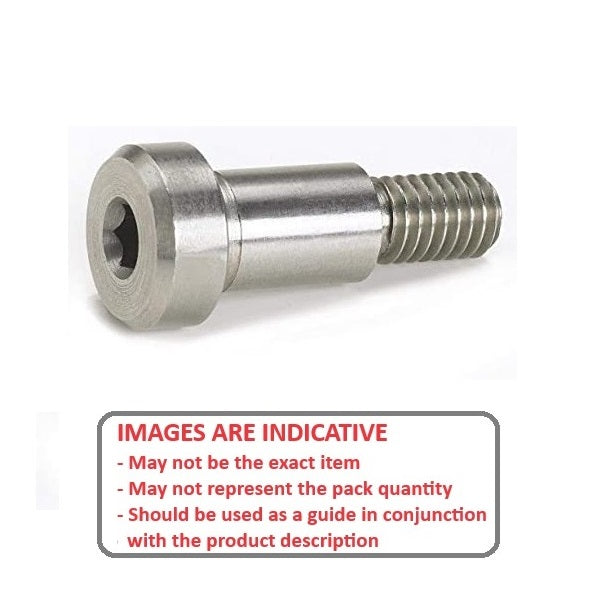

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Screws - Shoulder - Socket Head - 416 Stainless

Additional resources:
PDF Screws Catalogue
Washers
Nuts

Price:

$9.83 AUD

~~$18.67 AUD~~ $9.83 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 1 available now

Product Details

Deleted Item. Available while stocks last.

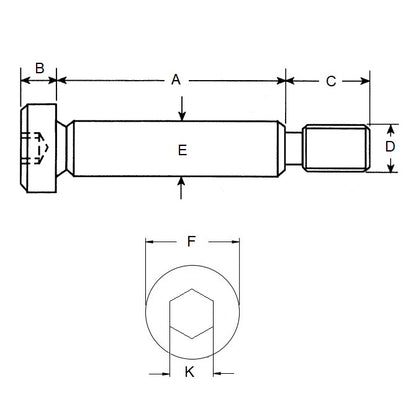

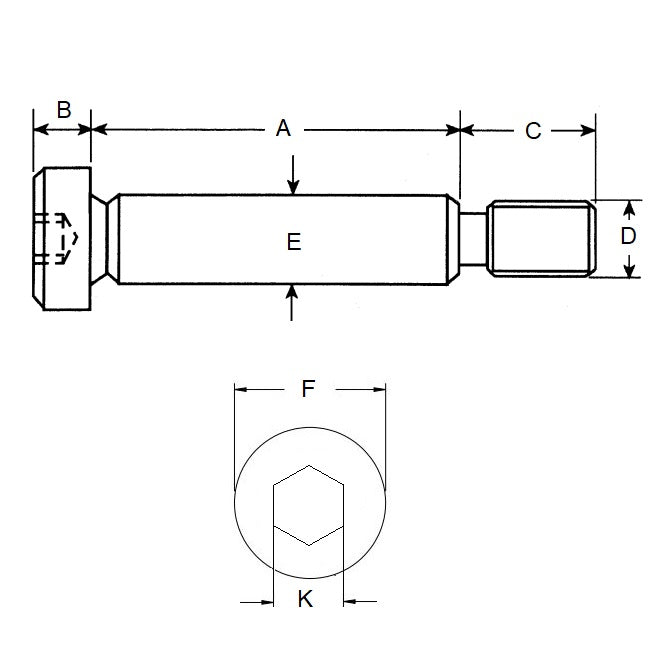

Shoulder Diameter (E): 4.000mm
_{- 0.013 / - 0.038}
_{(4.000mm is 0.157 in.)}

Stainless Steel AISI 416 Rc 36-42

Shoulder Diameter (E): 4.000mm
_{- 0.013 / - 0.038}
_{(4.000mm is 0.157 in.)}
Shoulder Length (A): 4.000mm
_{+ 0.060 / - 0.000}
_{(4.000mm is 0.157 in.)}
Thread (D): M3x0.5
Max. Thread Length (C): 4.00mm
Head Height (B): 3.00mm
Head Diameter (F): 6.00mm
Allen Key Size: 2.00mm
26-32 HRC (Tensile Strength: 850-1000 N/mm2)

Brand: MBA
Country of Origin: GB

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

SHSS34
SHSS3-4

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
