SF693-ZZS-MC34-GR5-R-L23 (PK-22)

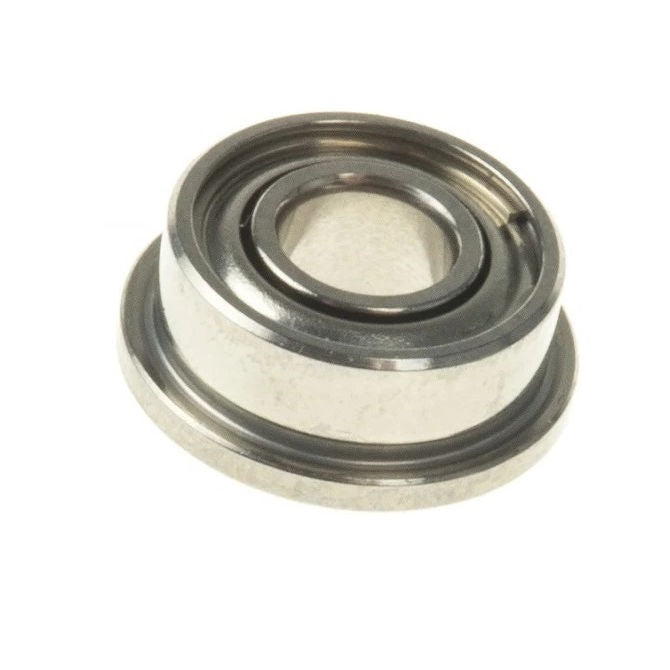

Single Row Ball Bearings - 3x8x3 mm Flanged - Stainless Steel AISI 440C Bearing
Myonic
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
High Precision Bearings Catalogue PDF
Shafting
Order 50 or more packs of 22 (1100 pcs)
for $1,027.11 AUD per 22 pack
3x8x3 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per pack of 22:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard
Product Details
Non ISO Width
ID (d): 3.000mm
+ 0.000 / - 0.005
(3.000mm is 0.118 in.)
Stainless Steel AISI 440C
- ID (d): 3.000mm
+ 0.000 / - 0.005
(3.000mm is 0.118 in.)
- O.D. (D): 8.000mm
+ 0.000 / - 0.005
(8.000mm is 0.315 in.)
- Width (B): 3.000mm
+ 0.000 / - 0.040
(3.000mm is 0.118 in.)
- Flange Diameter (DF): 9.500mm
- Flange Width (BF): 0.700mm
- Precision Grade: Abec 5
- Closure Type: ZZS
- Bearing Type: Radial Flanged
- Lubricant: Windsorlube L245X - L23 Oil
Brand: Myonic
Country of Origin: DE
Product Compliance and Data
Similar to
- RMB® RK3080X-48-A5P-6/15-L23
- RMB® RK3080X-A5P-L23
- SSF693ZZSMC3GR5L23
- SSF693ZZSRGR5MC34L23
- SF693ZZSMC34GR5RL23
- RK3080X48A5P6/15L23
- RK3080XA5PL23
- P5SF693002SS
- P5F693002SS
- P5-F693-002SS
- P5-SF693-002SS
- F693BASIC
Used for
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SF693ZZSMC34GR5RL23, F693
