FMR63A-ZZ-MC3 (100 Pcs)

Name: FMR63A-ZZ-MC3 (100 Pack) - Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: FMR63AZZMC3
Price: 1190.86 AUD
Availability: BackOrder

Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing

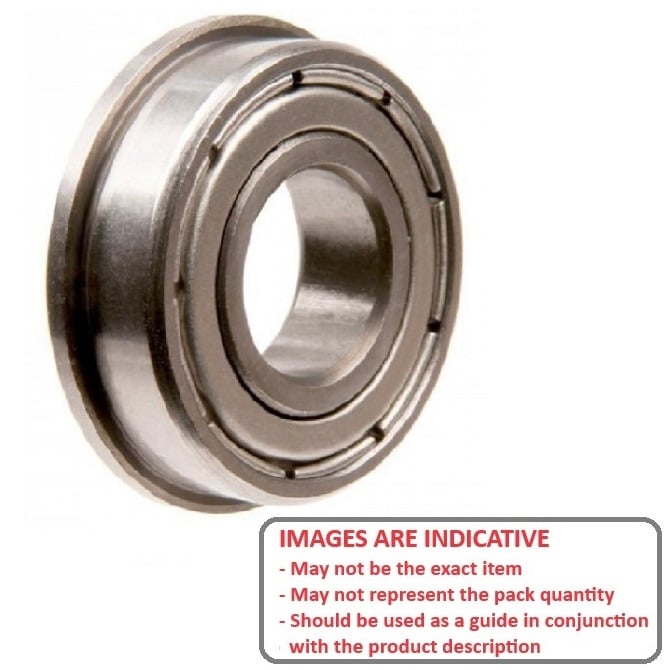

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$1,190.86 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $1,071.77 AUD per 100

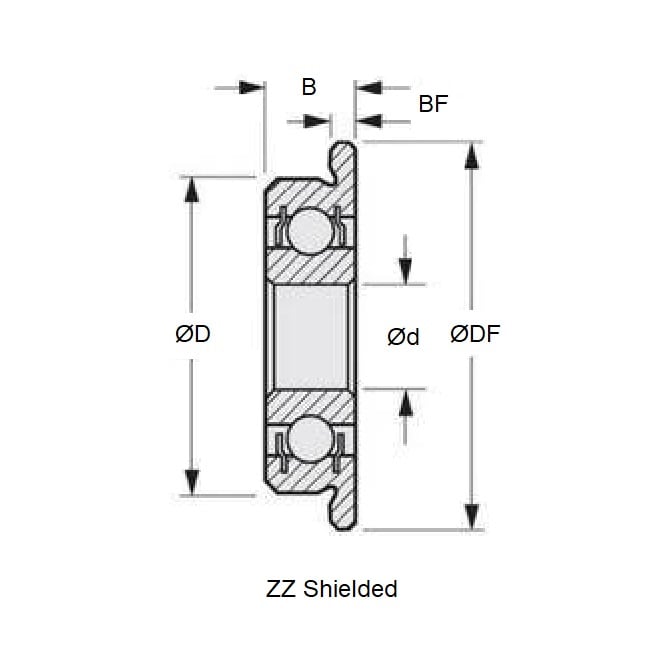

Product Details

ID (d): 3.000mm
_{+ 0.000 / - 0.0075}
_{(3.000mm is 0.118 in.)}

Chrome Steel SAE 52100

ID (d): 3.000mm
_{+ 0.000 / - 0.0075}
_{(3.000mm is 0.118 in.)}
OD (D): 6.000mm
_{+ 0.000 / - 0.0075}
_{(6.000mm is 0.236 in.)}
Width (B): 2.500mm
_{+ 0.000 / - 0.125}
_{(2.500mm is 0.098 in.)}
Flange Diameter (DF): 7.200mm
Flange Width (BF): 0.600mm
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

KALT 10020396
HIROBO 2500-057
GMP 5191
ALTPART
57155K537
NTN FLAW673-ZZA
NTN FLWA673SSA
NTN FLWA673-ZZA
NTN MF63-ZZ
BSC MLF3006-ZZ
MLF3006ZZ
MF63ZZ
FMR63A-ZZMC3
FMR63AZZMC3
2500057
FLAW673ZZA
FLWA673ZZA
LF630ZZ
LF630-ZZ
FMR63ABASIC

Used for

RC Helicopter Parts
Bergen Machine - Intrepid Gas - Flanged Bearing 3-6-2.5mm
Century - Falcon 46/50 SE II - Flanged Bearing 3-6-2.5mm
Century - Ninja Pro 30/46 All - Flanged Bearing 3-6-2.5mm
Century - Ninja Pro 30/46Upgrade Kit - Flanged Bearing 3-6-2.5mm
Century - Ninja Pro 30-46 - Flanged Bearing 3-6-2.5mm
Century - Pro Master Upgrade - Flanged Bearing 3-6-2.5mm
GMP - Cobra - 5191 Flanged Bearing
GMP - Competition - 5191 Flanged Bearing
GMP - Cricket - 5191 Flanged Bearing
GMP - Elite Rotor Head - 5191 Flanged Bearing
GMP - Legend - 5191 Flanged Bearing
GMP - Rebel - 5191 Flanged Bearing
GMP - Stork - 5191 Flanged Bearing
Hirobo - Lepton EX - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle - Upgrade Kit Flanged Bearing 3
Hirobo - Shuttle Challenge Upgrade Kit - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle Plus - 60
Hirobo - Shuttle XX - 2500-057 Flanged Bearing
Hirobo - Shuttle XX - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle Z - 2500-057 Flanged Bearing
Hirobo - Shuttle Z - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle ZTS Upgrade Kit - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle ZX - 2500-057 Flanged Bearing
Hirobo - Shuttle ZX - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle ZX-0402 Upgrade Kit - Flanged Bearing 3-6-2.5mm
Hirobo - Shuttle ZXX - 2500-057 Flanged Bearing
Hirobo - Shuttle ZXX - Flanged Bearing 3-6-2.5mm
Hirobo - ZTS Upgrade Kit - Flanged Bearing 3-6-2.5mm
JR - Ergo 30/46 - Flanged Bearing 3-6-2.5mm
JR - Ergo 30/46 Complete Kit - Flanged Bearing 3-6-2.5mm
Kalt - Cyclone - 10020396 Flanged Bearing
Kalt - Cyclone - Flanged Bearing 3-6-2.5mm
Kyosho - NEXUS 30 - Flanged Bearing 3-6-2.5mm
MS Composit - Hornet Micro Heli - Flanged Bearing 3-6-2.5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
