STSI3201550

Stroke Rotary Bushings - 3x7x20 mm Miniature - Carbon Steel Bushing

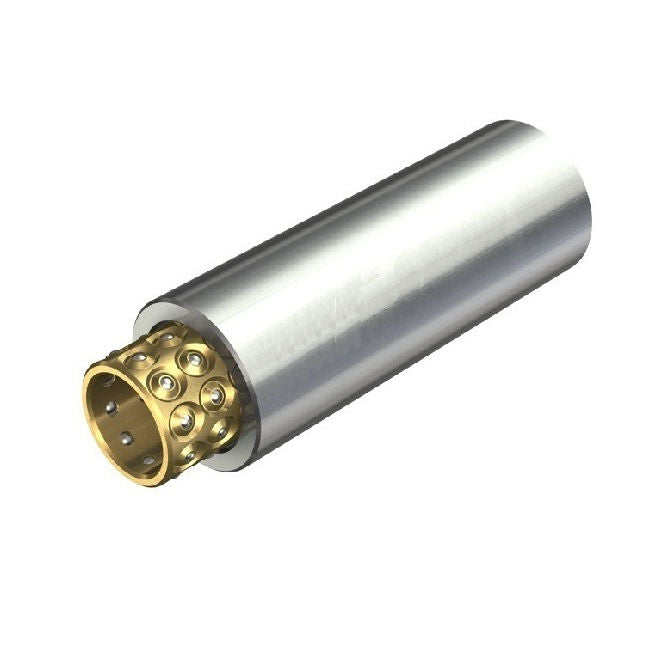

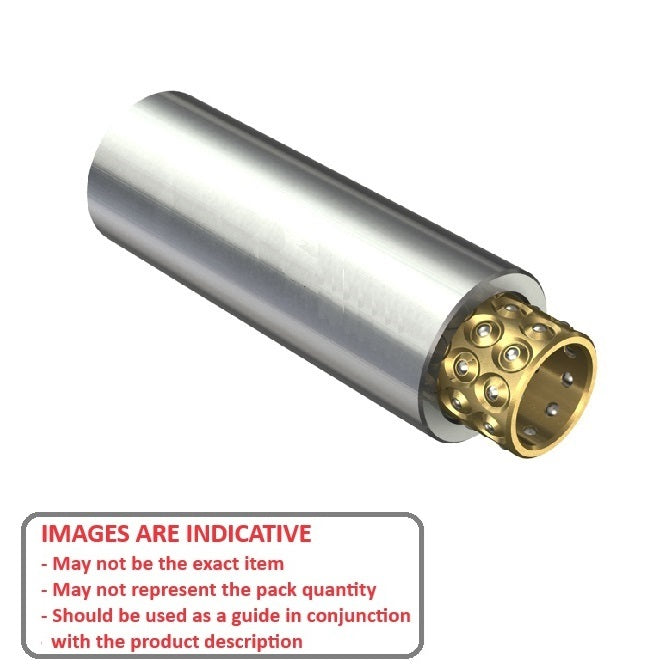

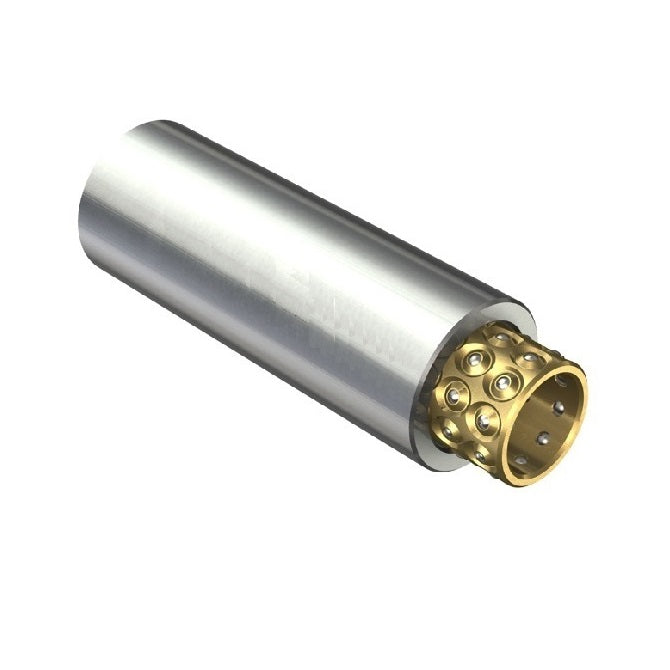

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Stroke Rotary Bushings - 3x7x20 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$172.05 AUD
$206.45 AUD $172.05 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $154.85 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 16, 2025

Base Category: Bushings - Stroke Rotary

Top Level Category: Bushings - Stroke Rotary - Miniature

Product Details

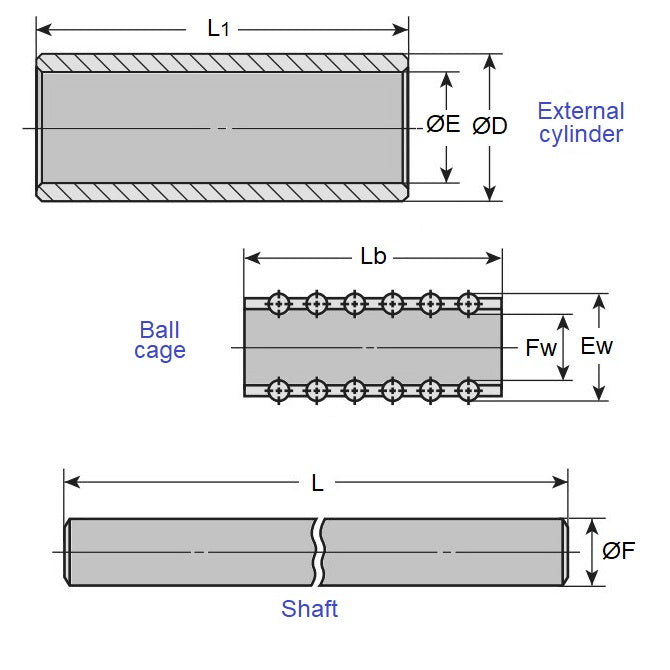

Shaft Diameter (F): 3.000mm
(3.000mm is 0.118 in.)

Carbon Steel
  • Shaft Diameter (F): 3.000mm
    (3.000mm is 0.118 in.)
  • Outer Ring Diameter (D): 7.000mm
    (7.000mm is 0.276 in.)
  • Outer Ring Length (L1): 20.00mm
    + 0 / - 0.0006
    (20.00mm is 0.787 in.)
  • Outer Ring Bore Size (E): 5.000mm
  • Max. Radial Runout on Dia. D: 0.01
  • Basic Static Load Rating: 57.70Co N
  • Ball Cage Bore (Fw): 3.00mm
  • Ball Cage Diameter (Ew): 5.00mm
  • Ball Cage Length (Lb): 15.00mm
  • Shaft Length (L): 50.00mm

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • ISO STSI3201550
  • ISO STSI3-201550

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
