Collection: Bushings - Stroke Rotary

Bushings -> Stroke Rotary

There are 8 products in the sub-categories of Bushings - Stroke Rotary. Browse the Bushings - Stroke Rotary products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

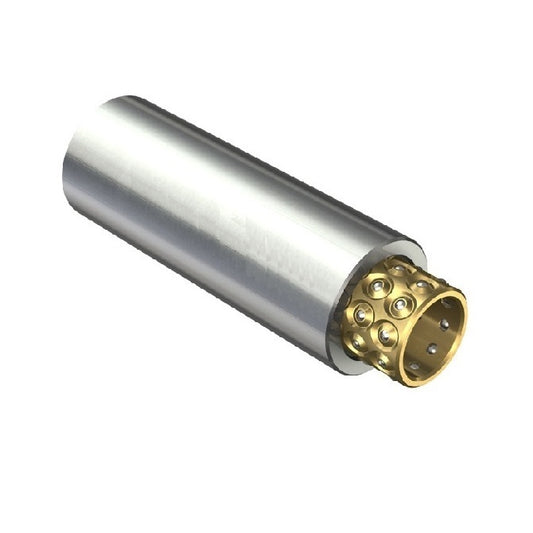

This category includes various types of stroke rotary bushings.

Specialized linear bearing that allows for simultaneous rotary and linear motion.
Works by using balls that roll between an outer cylinder and an inner shaft, enabling a compact design with low friction, high rigidity, and accuracy.
Suitable for precision applications in areas like automation, robotics, medical devices, and IC manufacturing.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bushings - Stroke Rotary category on the Small Parts & Bearings online store.

Shaft Diameter (F)	Outer Ring Diameter (D)	Outer Ring Length (L1)	Outer Ring Bore Size (E)	Max. Radial Runout on Dia. D	Basic Static Load Rating
Stroke Rotary Bushings - 3x7x20 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 3.000 mm	Outer Ring Diameter (D) 7.000 mm	Outer Ring Length (L1) 20.00 mm _{+ 0 / - 0.0006} (Equiv. 0.787 in.)	Outer Ring Bore Size (E) 5.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 57.70 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 3.00 mm Ball Cage Diameter (Ew): 5.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI3201550 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity

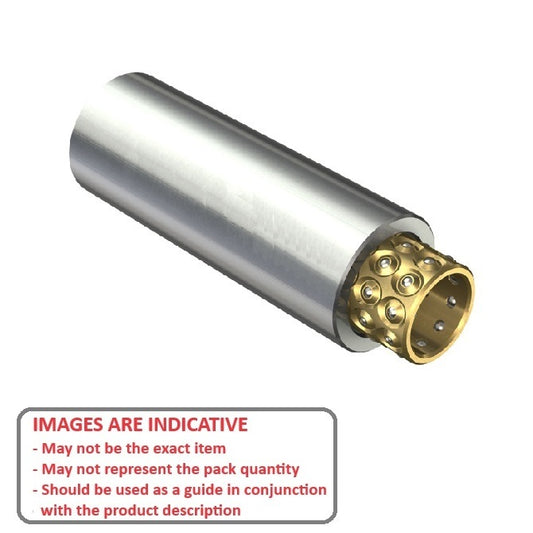

Shaft Diameter (F)	Outer Ring Diameter (D)	Outer Ring Length (L1)	Outer Ring Bore Size (E)	Indicative Image
Stroke Rotary Bushings - 3x7x20 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 3.000 mm	Outer Ring Diameter (D) 7.000 mm	Outer Ring Length (L1) 20.00 mm _{+ 0 / - 0.0006} (Equiv. 0.787 in.)	Outer Ring Bore Size (E) 5.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 57.70 Co N Ball Cage Bore (Fw): 3.00 mm Ball Cage Diameter (Ew): 5.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI3201550 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 10x18x20 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 20.00 mm _{+ 0 / - 0.0008} (Equiv. 0.787 in.)	Outer Ring Bore Size (E) 12.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 191.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10201580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 10x18x20 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 20.00 mm _{+ 0 / - 0.0008} (Equiv. 0.787 in.)	Outer Ring Bore Size (E) 12.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 191.00 Co N Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10201580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 10x18x30 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 30.00 mm _{+ 0 / - 0.0008} (Equiv. 1.181 in.)	Outer Ring Bore Size (E) 12.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 191.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10301580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 10x18x30 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 30.00 mm _{+ 0 / - 0.0008} (Equiv. 1.181 in.)	Outer Ring Bore Size (E) 12.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 191.00 Co N Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10301580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 191.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI104315A (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 191.00 Co N Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI104315A (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 254.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI104320A (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 254.00 Co N Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI104320A (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 318.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10432580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 10x18x43 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 10.000 mm	Outer Ring Diameter (D) 18.000 mm	Outer Ring Length (L1) 43.00 mm _{+ 0 / - 0.0008} (Equiv. 1.693 in.)	Outer Ring Bore Size (E) 12.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 318.00 Co N Ball Cage Bore (Fw): 10.00 mm Ball Cage Diameter (Ew): 12.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI10432580 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 12x20x25 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 12.000 mm	Outer Ring Diameter (D) 20.000 mm	Outer Ring Length (L1) 25.00 mm _{+ 0 / - 0.0009} (Equiv. 0.984 in.)	Outer Ring Bore Size (E) 14.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 341.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 12.00 mm Ball Cage Diameter (Ew): 14.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI12252080 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 12x20x25 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 12.000 mm	Outer Ring Diameter (D) 20.000 mm	Outer Ring Length (L1) 25.00 mm _{+ 0 / - 0.0009} (Equiv. 0.984 in.)	Outer Ring Bore Size (E) 14.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 341.00 Co N Ball Cage Bore (Fw): 12.00 mm Ball Cage Diameter (Ew): 14.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI12252080 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
Stroke Rotary Bushings - 12x20x30 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 12.000 mm	Outer Ring Diameter (D) 20.000 mm	Outer Ring Length (L1) 30.00 mm _{+ 0 / - 0.0009} (Equiv. 1.181 in.)	Outer Ring Bore Size (E) 14.000 mm	Max. Radial Runout on Dia. D 0.01	Basic Static Load Rating 341.00 Co N
Material: Carbon Steel Ball Cage Bore (Fw): 12.00 mm Ball Cage Diameter (Ew): 14.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI12302080 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Stroke Rotary Bushings - 12x20x30 mm Miniature - Carbon Steel Bushing
Shaft Diameter (F) 12.000 mm	Outer Ring Diameter (D) 20.000 mm	Outer Ring Length (L1) 30.00 mm _{+ 0 / - 0.0009} (Equiv. 1.181 in.)	Outer Ring Bore Size (E) 14.000 mm
Material: Carbon Steel Max. Radial Runout on Dia. D: 0.01 Basic Static Load Rating: 341.00 Co N Ball Cage Bore (Fw): 12.00 mm Ball Cage Diameter (Ew): 14.00 mm Category: Bushings - Stroke Rotary - Miniature
Part Number: STSI12302080 (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Sun, Apr 01, 2029
