BP0030-0045-0060-DU (5 Pcs)

Unflanged Bushes - 3x4.5x6 mm Split - Steel DU with PTFE Bush

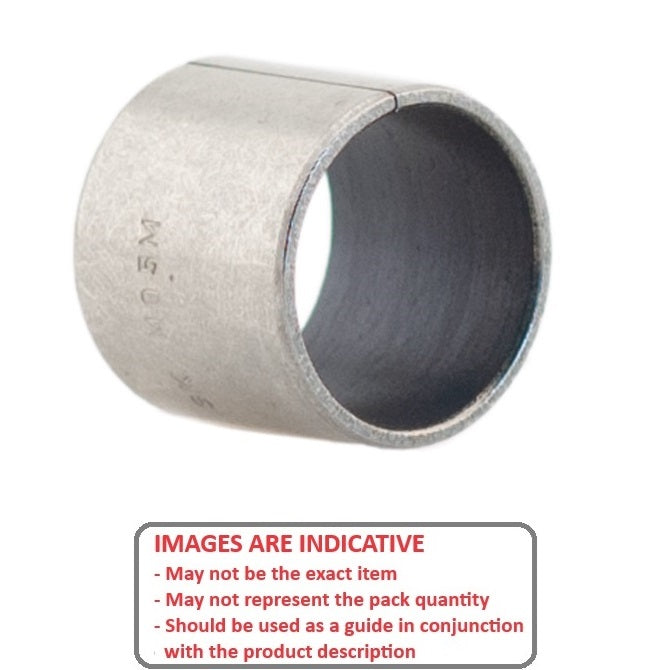

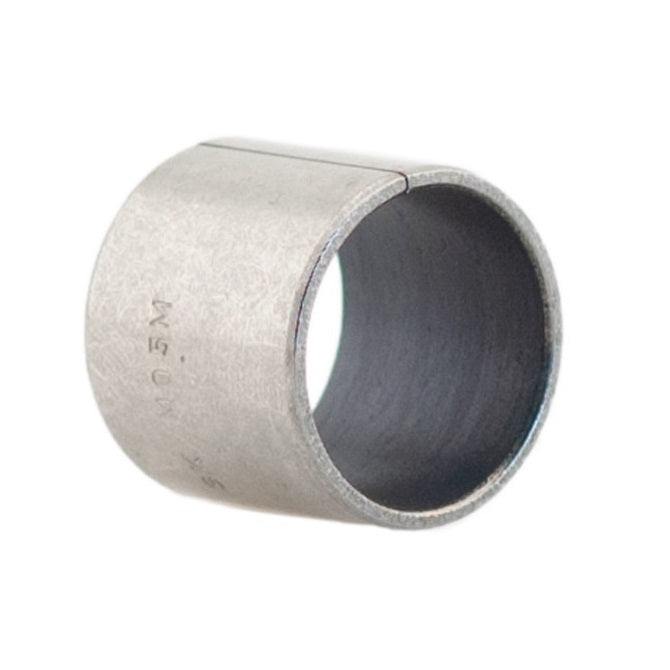

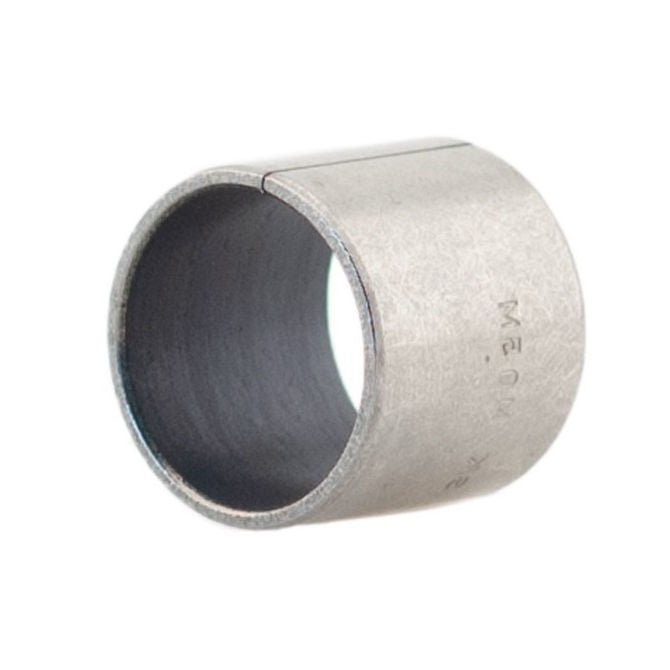

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Unflanged Bushes - 3x4.5x6 mm - Steel DU with PTFE
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Bushes PDF Catalogue
Price:
$4.32 AUD
$4.32 AUD
per 5
Qty: 569 packs (2845 pcs) available now
Order 50 or more packs (250 pcs) for $3.89 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 19, 2025

Base Category: Bushes - Unflanged

Top Level Category: Bushes - Unflanged - Split - Steel - DU

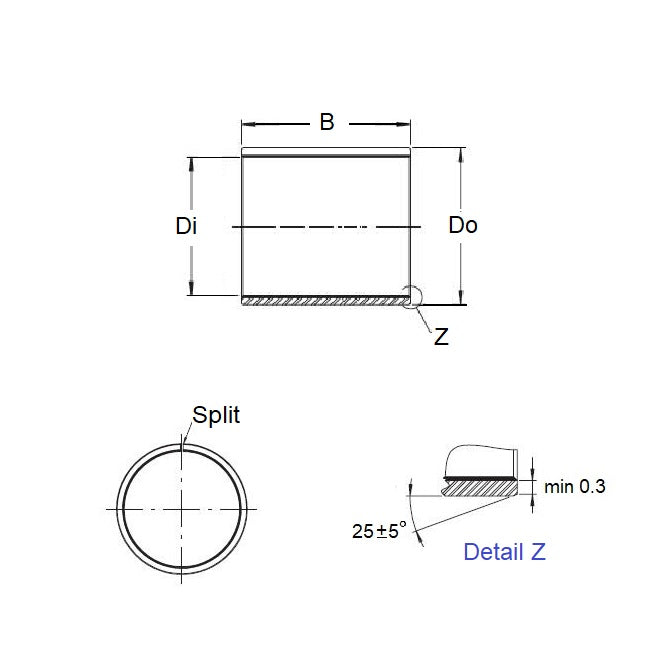

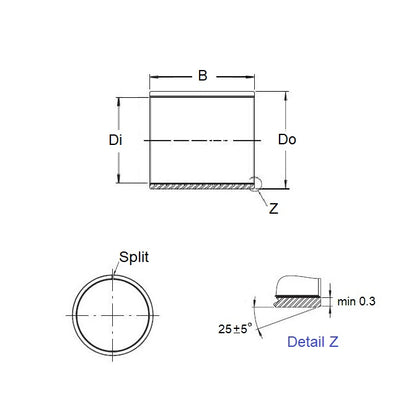

Product Details

Nominal Inside Diameter (d): 3.000mm
- 0.000 / - 0.006
(3.000mm is 0.118 in.)

Steel DU with PTFE
  • Nominal Outside Diameter (D): 4.500mm
    + 0.008 / - 0.000
    (4.500mm is 0.177 in.)
  • Length (s): 6.000mm
    + 0.25 / - 0.25
    (6.000mm is 0.236 in.)

Brand: MBA
Country of Origin: CN

Product Compliance and Data

Similar to

  • Glacier MB0306DU
  • DU0306
  • DU-0306

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
