Bushes - Unflanged - Split - Steel - DU

Bushes -> Unflanged -> Split -> Steel -> DU

There are 55 products in the sub-categories of Bushes - Unflanged - Split - Steel - DU. Scroll down or follow the link to Bushes - Unflanged - Split - Steel - DU in the products table to see all these items combined into a handy table with filters.

Category Details

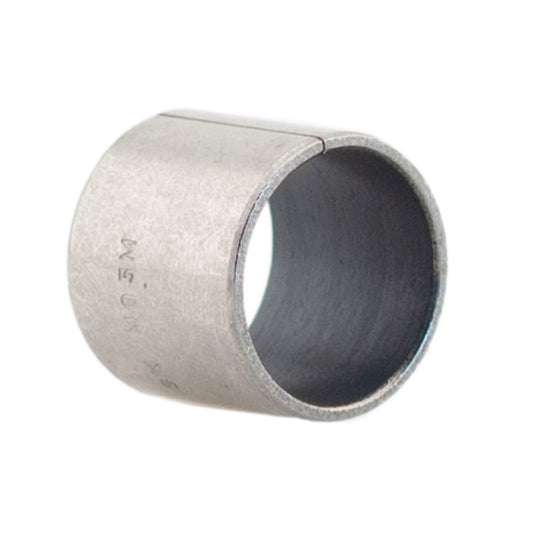

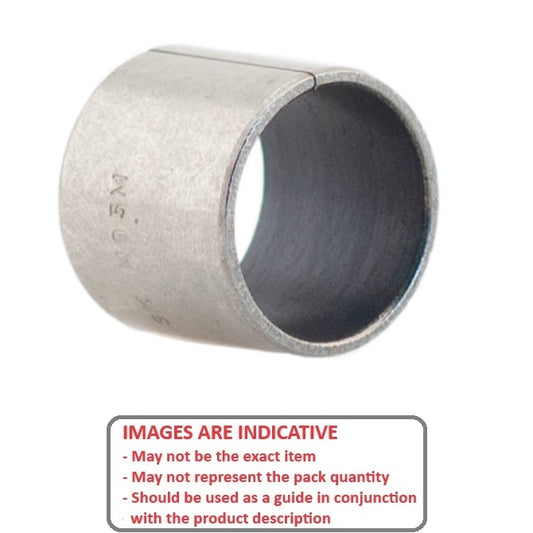

A selection of DU Steel Split Unflanged Bushes. Composite bearing material conisting of 3 bonded layers; Steel backing bonded with porous sintered bronze interlayer which is impregnated and overlaid with polytetrafluroethylene (PTFE). Lead free.

  • An expanded range may be available on special order. Please enquire.
  • Operating Temperature -200o to 280o Celsius. Maximum load 250N/mm2.
  • Requires No lubrication, provides maintenance free operation. Exhibits low wear rate, Seizure resistant.
  • High Static and Dynamic Load capacity, Good frictional properties with negligible stick-slip. Resists Solvents, Compact and light.
  • No water Absorption, Electrically conductive and shows no electrostatic effects, Good embedability and is tolerant of dusty environments.
  • Good embedability and is tolerant of dusty environments. Speed Limit in oil 5 metres surface speed per second.
