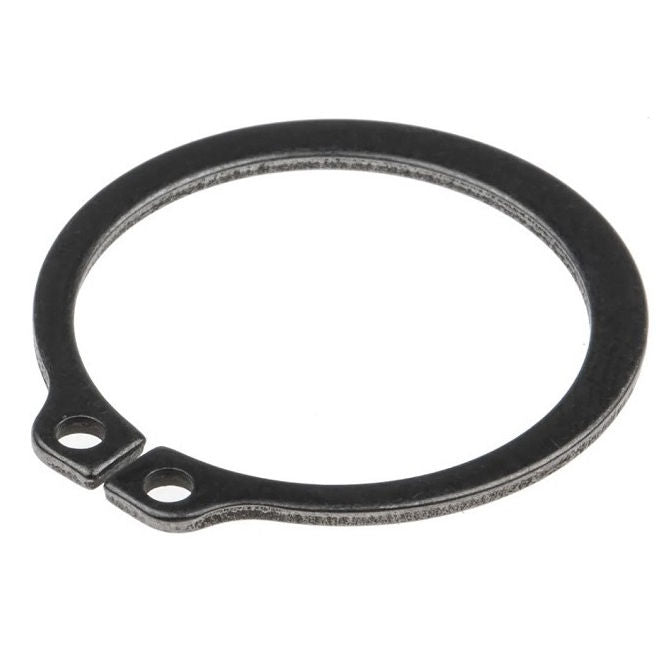

CCE-03900-C (PK-100)
External Retaining Rings - 39x1.75x36.75 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 100 (5000 pcs)
for $116.31 AUD per 100 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 283
Shaft Diameter (Ds): 39.00mm
(39.00mm is 1.535 in.)
Carbon Steel
- Shaft Diameter (Ds): 39.00mm
(39.00mm is 1.535 in.)
- Clip Thickness (T): 1.75mm
+ 0.00 / - 0.06
(1.75mm is 0.069 in.)
- Groove Dia. (Dg): 36.75mm
+ 0.00 / - 0.25
(36.75mm is 1.447 in.)
- Approx. Loose Circlip ID (A): 35.90mm
- Groove Width (W): 1.85mm
- Min. Lug Diameter (h): 2.50mm
- Standard: DIN471
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 471-039
- Seeger® A-039
- Seeger® A39X1.75
- Bossard® BN818-039
- Waldes® D1400-039
- Huyett® DSH-039
- NoCor® DSH-039
- Rotor Clip® DSH-039
- BN818039
- A039
- D1400-0390
- D1400039
- D14000390
- 471039
- DSH039
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE03900C, CCE03900
