BTU0350-014-F-Z-HD

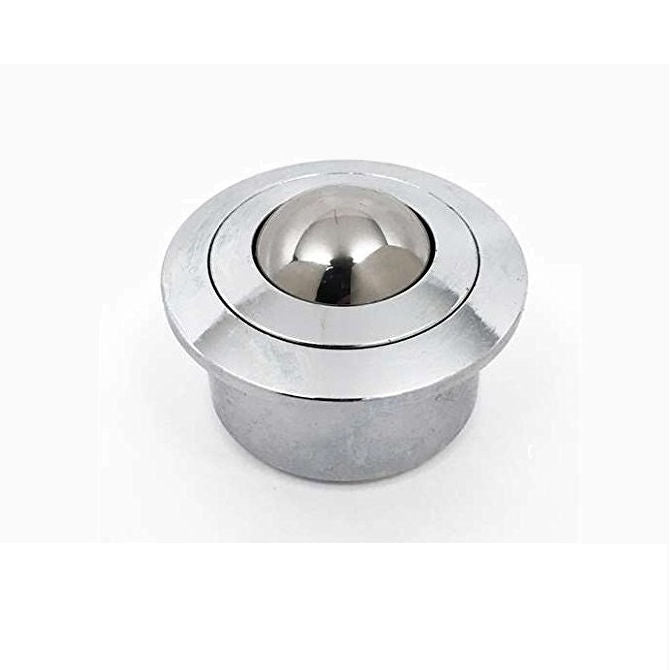

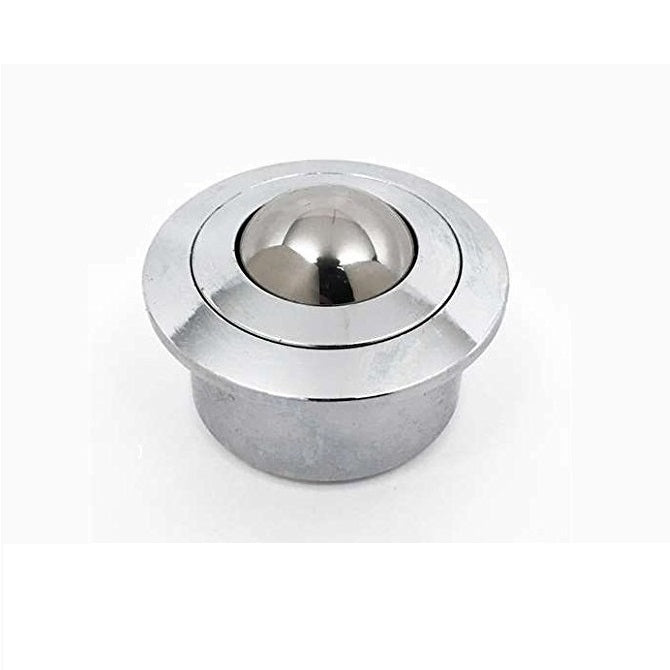

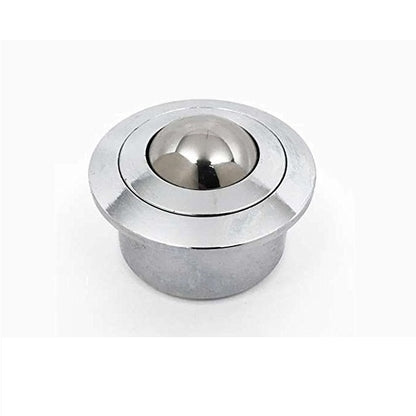

Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel

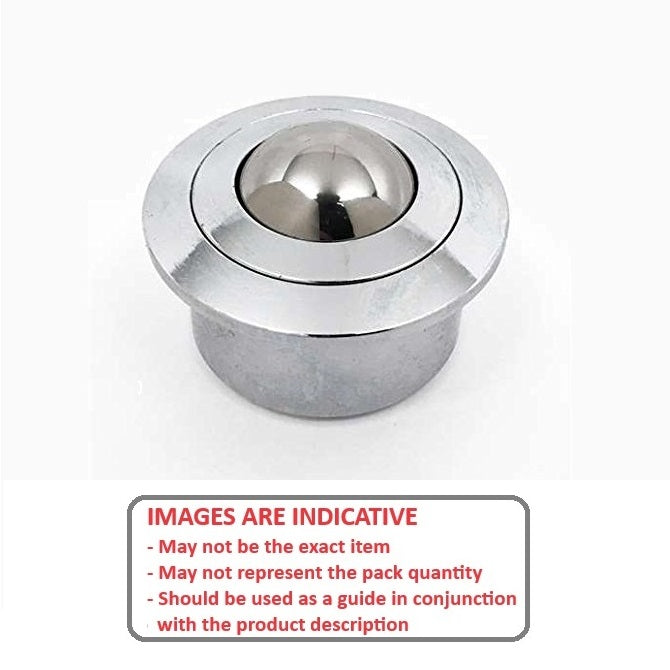

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$201.41 AUD
$241.69 AUD $201.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $181.27 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 10, 2025

Base Category: Ball Transfer Units - Flange Mount

Top Level Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated

Product Details

Max Load: 350kg

Chrome hardened and Zinc Plated Mild Steel

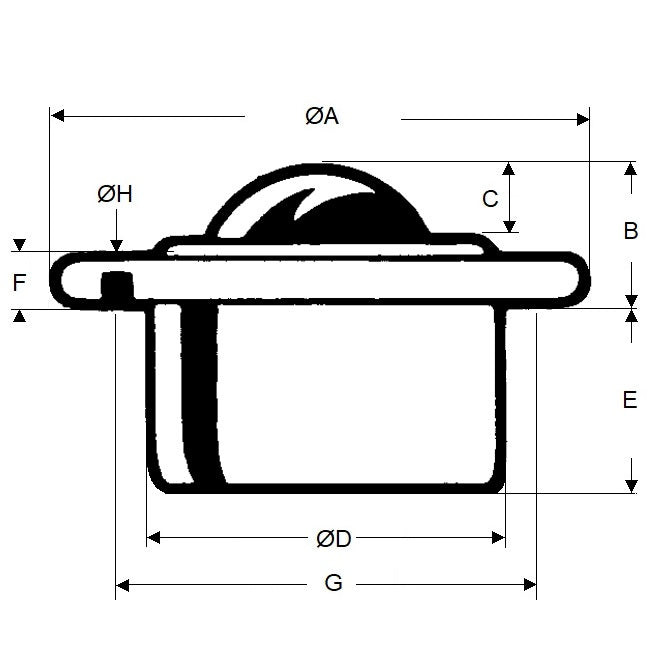

  • Max Load: 350kg
  • Ball Height from Flange (B): 13.8mm
    (13.8mm is 0.543 in.)
  • Body Diameter (D): 45mm
    +/- 0.08
    (45mm is 1.772 in.)
  • Overall Height (L): 30.5mm
  • Ball Diameter: 30.0mm
  • Body Height: 23.0mm
  • Flange Diameter: 55.0mm
  • Flange Thickness: 8.3mm
  • Solid Steel UnitType

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • SKF-3013
  • SKF3013
  • BTHD-30A
  • BTHD30A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
