BTU0350-014-F-Z-HD - Datasheet
MBA
Category Information

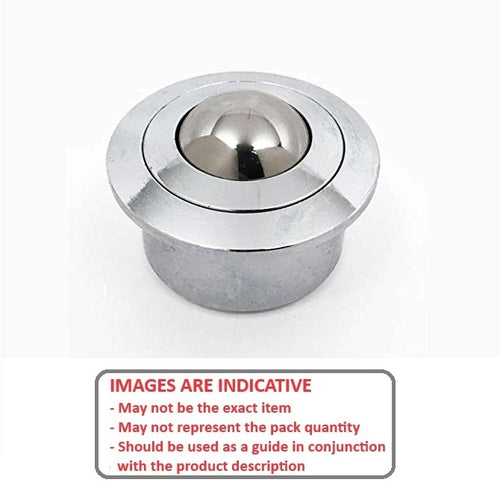

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc PlatedZinc Plated Heavy Duty Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 350 kg

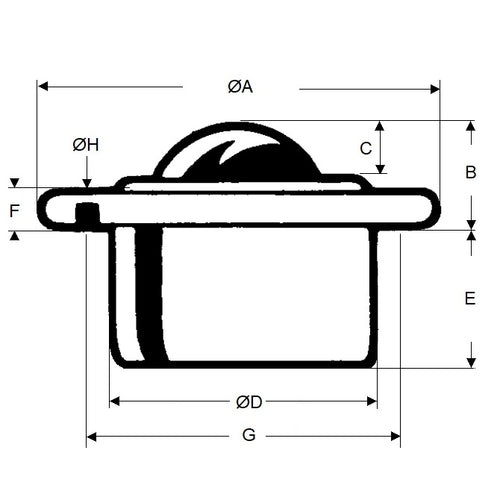

- Ball Height from Flange (B)
13.8
mm
(Equiv. 0.543 in.) - Body Diameter (D)
45
mm
+/- 0.08
(Equiv. 1.772 in.) - Overall Height (L) 30.5 mm
- Ball Diameter 30.0 mm
- Body Height 23.0 mm
- Flange Diameter 55.0 mm
- Flange Thickness 8.3 mm
- Solid Steel Unit Type
- Material Chrome hardened and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- BTHD-30A
- BTHD30A
- SKF3013
- SKF-3013
