CCI-03300-S15 (PK-500)

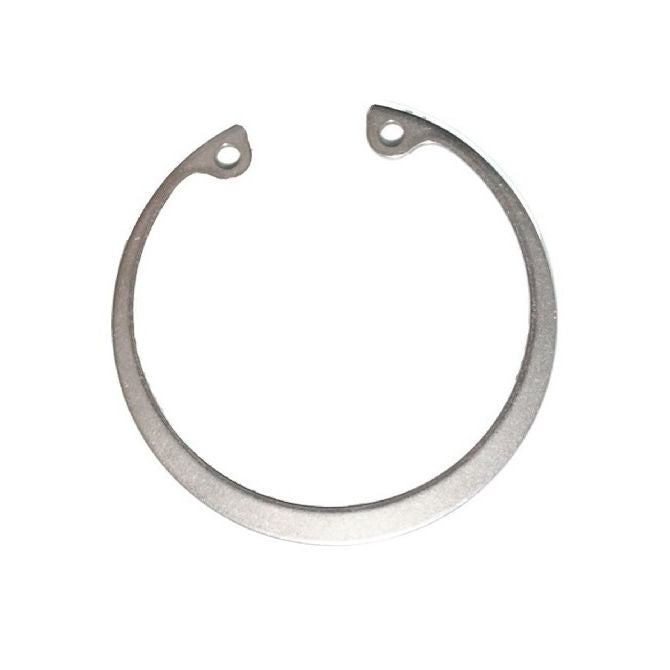

1x1 inch Circlip - 33x1.2x34.78 mm Internal Retaining Rings - Stainless Steel Grade PH15-7 Mo - Sold per pack of 500:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Product Details

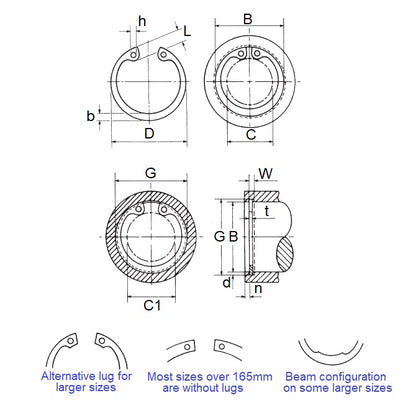

Housing Bore (B): 33.00mm
_{(33.00mm is 1.299 in.)}

Stainless Steel Grade PH15-7 Mo

• Housing Bore (B): 33.00mm
  _{(33.00mm is 1.299 in.)}

• Clip Thickness (T): 1.20mm
  _{+ 0.00 / - 0.06
  (1.20mm is 0.047 in.)}

• Groove Dia. (Dg): 34.78mm
  _{+ 0.25 / - 0.00
  (34.78mm is 1.369 in.)}

• Approx. Loose Circlip OD (Dr): 35.50mm
  _{+ 0.50 / - 0.25}

• Groove Width (W): 1.30mm
  _{+ 0.10 / - 0.00}

• Clearance in Bore (C): 21.60mm
• Clearance in Groove (C1): 23.90mm
• Min. Lug Diameter (h): 2.50mm
• Min. Extension (n): 2.60
• Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-033-SS
• Bossard® BN-822-033-SS
• Waldes® D1300-033-SS
• Huyett® DHO-033-SS
• NoCor® DHO-033-SS
• Rotor Clip® DHO-033-SS
• Seeger® J-033-SS
• Seeger® J33X1.2-411
• BN822033SS
• J033SS
• J33X12411
• D13000330KSF
• D1300-0330KSF
• D1300033SS
• DHO033SS
• 472033SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI03300S15, CCI03300
