CC-314-349-C (PK-50)

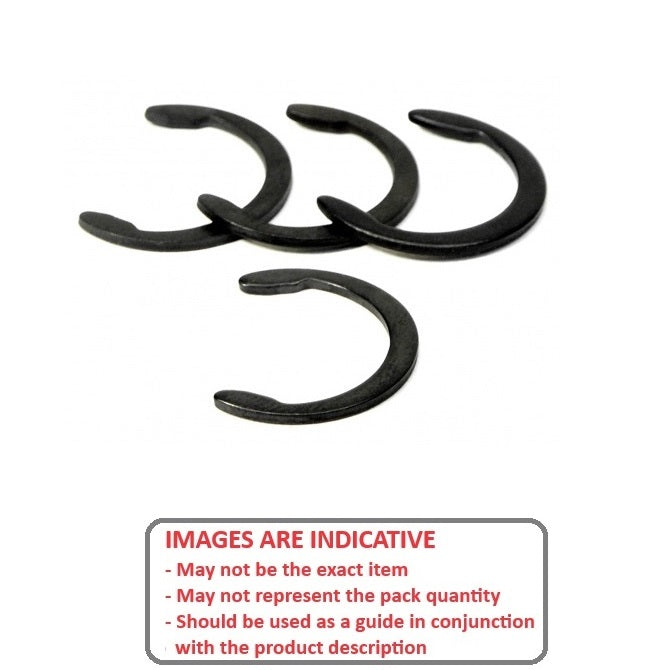

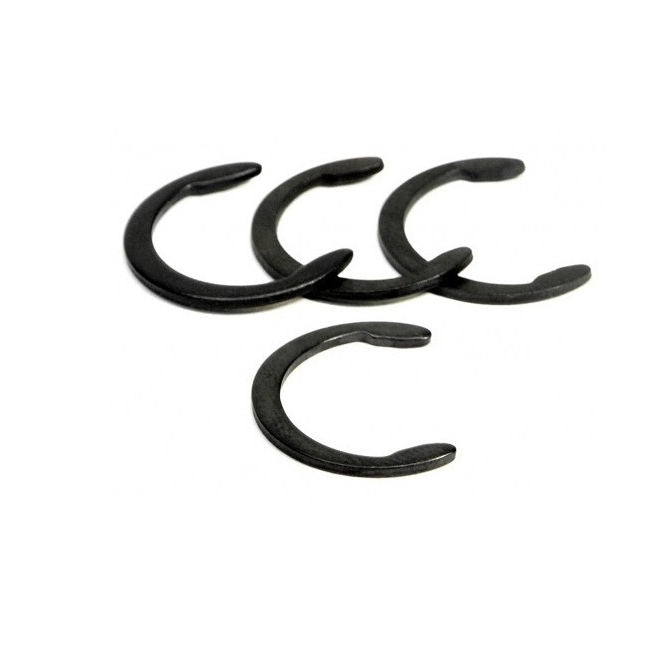

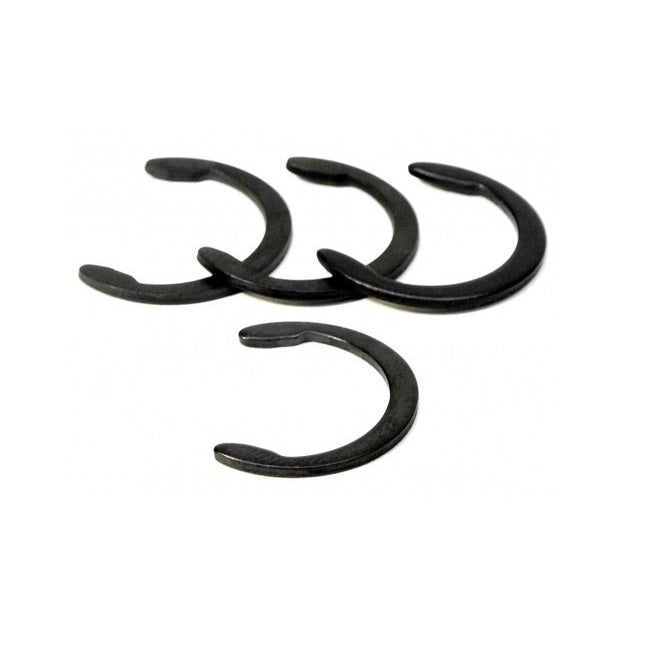

1x1-3/8 inch Ring - 31.42x34.93x1.27 mm Crescent Retaining Rings - Carbon Spring Steel Self Finish - Sold per pack of 50:

Base Category: Retaining Rings - Crescent

Top Level Category: Retaining Rings - Crescent

Product Details

Additional stock available from USA subject to Prior Sale = 3887

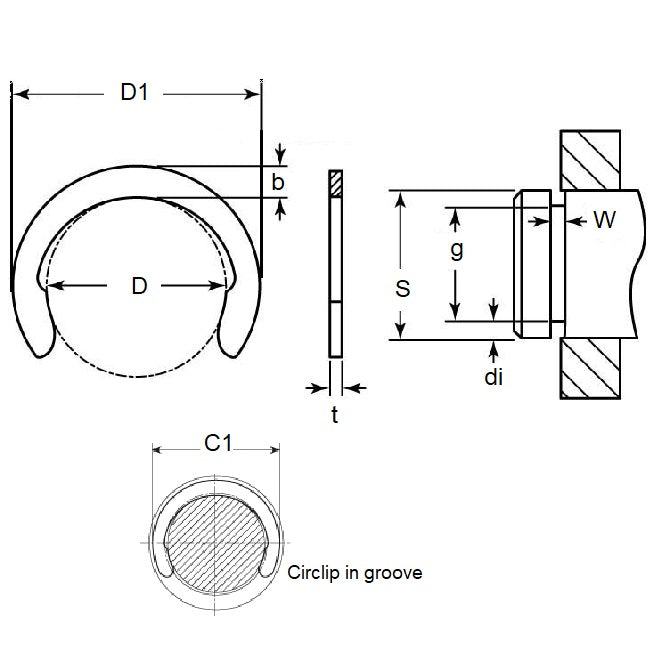

Groove Diameter (G): 31.42mm
_{(31.42mm is 1.237 in.)}

Carbon Spring Steel Self Finish

• Groove Diameter (G): 31.42mm
  _{(31.42mm is 1.237 in.)}

• Shaft Diameter (S): 34.93mm
  _{(34.93mm is 1.375 in.)}

• Thickness (t): 1.27mm
  _{(1.27mm is 0.05 in.)}

• Clip OD in groove (C1): 40.13mm
• Clip OD Loose (D1): 39.50mm
• Groove Width (W): 1.42

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Military 16632-137/B
• Military 16632-137-B
• Waldes® 5103-137/B
• Waldes® 5103-137-B
• Ellison® 9103-137/B
• Ellison® 9103-137-B
• Huyett® C-137/B
• NoCor® C-137/B
• Rotor Clip® C-137/B
• NoCor® C-137-B
• Rotor Clip® C-137-B
• C137B
• C137/B
• N1800137/B
• N1800-137-B
• N18000137APP
• N1800-0137APP
• N1800137B
• N1800-137/B
• 16632137/B
• 16632137B
• 9103137/B
• 9103137B
• 5103137/B
• 5103137B

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CC314349C, CC314
