CNG-00397-06-C-2 (PK-100)
External Retaining Rings - 3.97x0.64 - - Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 100 (5000 pcs)
for $16.65 AUD per 100 pack
5/32 inch Circlip - 3.97x0.64 - - External Retaining Rings - Carbon Steel - Sold per pack of 100:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Grooveless
Product Details
Additional stock available from USA subject to Prior Sale = 4302

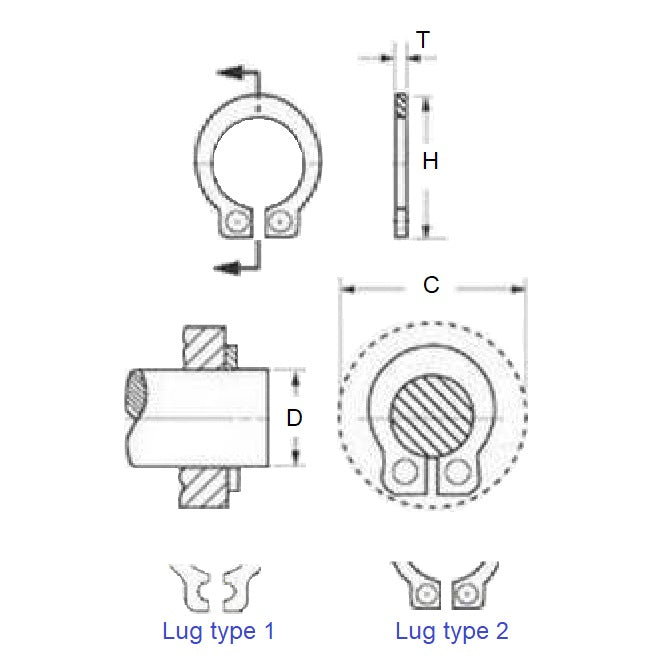

Shaft Diameter (Ds): 3.97mm
+/- 0.05
(3.97mm is 0.156 in.)
Carbon Steel
- Shaft Diameter (Ds): 3.97mm
+/- 0.05
(3.97mm is 0.156 in.)
- Clip Thickness (T): 0.64mm
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): -mm
- Approx. Loose Circlip ID (A): 3.79mm
- Assemb. Clearance on Shaft (C): 9.14
- Allowable Load: 89N
- Lug Type: 2 (Closed)mm
- Tool: PRS-E040
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® SHF-015
- NoCor® SHF-015
- SHF015
- N1440-0015
- N14400015
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CNG0039706C2, CNG0039706
