FR2-ZZ-MC3 (50 Pcs)

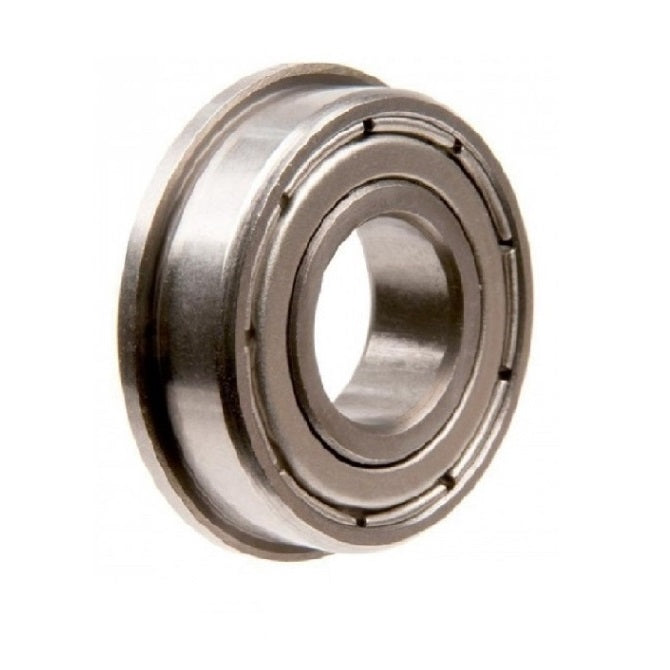

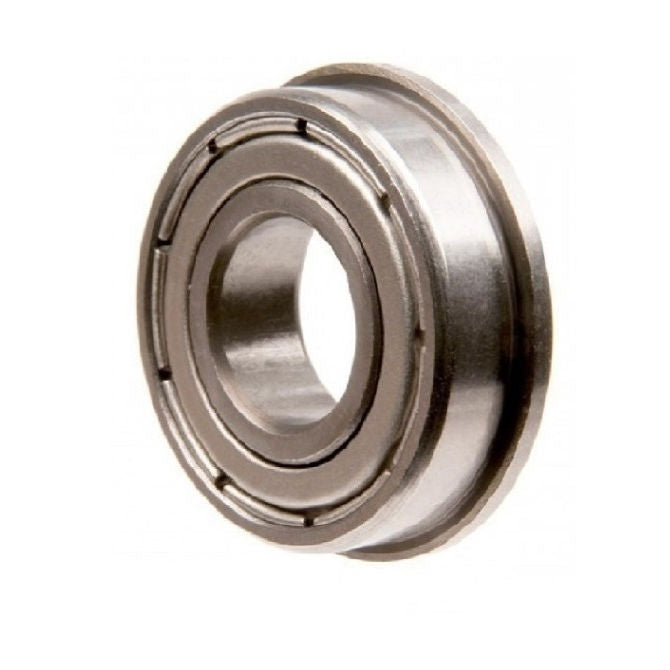

Single Row Ball Bearings - 3.175x9.525x3.969 mm Flanged - Chrome Steel SAE 52100 Bearing

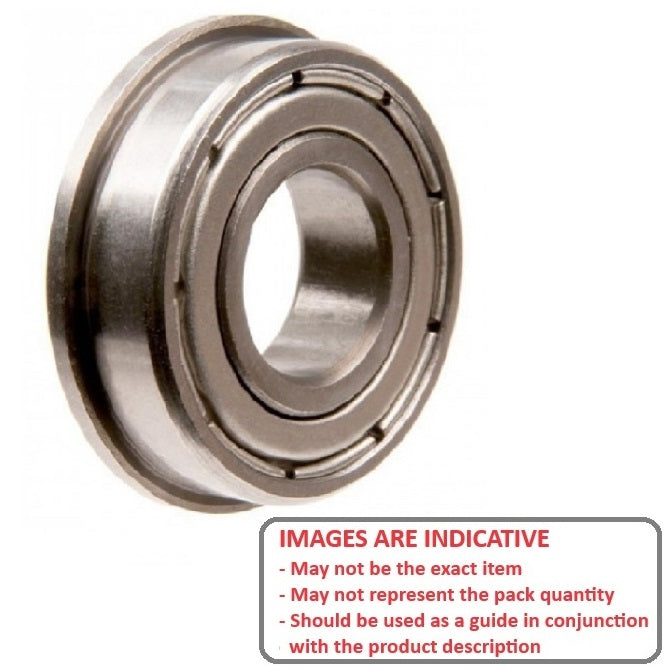

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 3.175x9.525x3.969 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$445.14 AUD
$445.14 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $400.63 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Oct 01, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

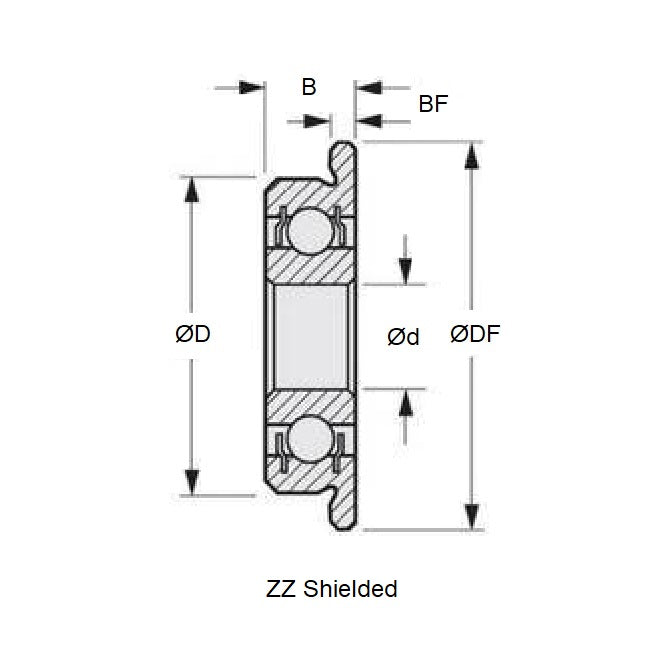

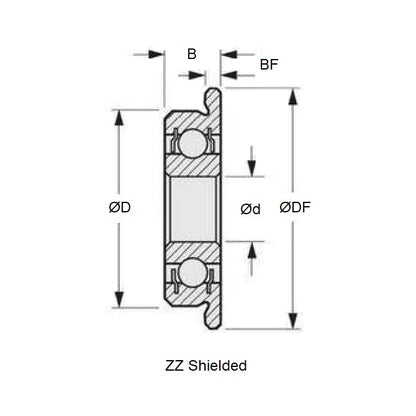

Product Details

ID (d): 3.175mm
+ 0.000 / - 0.0075
(3.175mm is 0.125 in.)

Chrome Steel SAE 52100
  • ID (d): 3.175mm
    + 0.000 / - 0.0075
    (3.175mm is 0.125 in.)
  • OD (D): 9.525mm
    + 0.000 / - 0.0075
    (9.525mm is 0.375 in.)
  • Width (B): 3.969mm
    + 0.000 / - 0.125
    (3.969mm is 0.156 in.)
  • Flange Diameter (DF): 11.176mm
  • Flange Width (BF): 0.762mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • FAFNIR F33KDD3
  • GRW FBR1-8B-2Z
  • NTN FLR2-ZZA
  • NTN FLRA2-ZZA
  • NHBB FR2PP
  • ISO FR2ZZ
  • ADR FR2-ZZ
  • ISO FR2-ZZ
  • MPB R2FCHH
  • MPB R2FC-ZZ
  • MPB R2FRHH
  • FAG RF2-ZZ
  • RF2ZZ
  • RF-2-ZZ
  • R2FCZZ
  • FR2ZZMC3
  • FR2SS
  • FR2-ZZMC3
  • FLRA2ZZA
  • FLR2ZZA
  • FBR18B2Z
  • FR2BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
